ENFORCER SD-7428-GSEQ User Manual

Request-to-exit button with delayed egress timer
Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual
Programmable nuisance delay timer
(0~3 seconds) to prevent accidental door
unlocking
Adjustable pre-delay timer (1~30 seconds
until the door unlocks)
12~24 VDC Operation
Replacement Keys: SD-7428-KEY (Sold in packs of 5)
IMPORTANT
Users and installers of this product are responsible for ensuring that the installation and configuration of this
product complies with all national, state, and local laws and codes related to locking and egress devices.
SECO-LARM will not be held responsible for the use of this product in violation of any current laws or codes.
Note: Model numbers that end with "Q" or that have a round green "Q" sticker signify RoHS-compliant products.

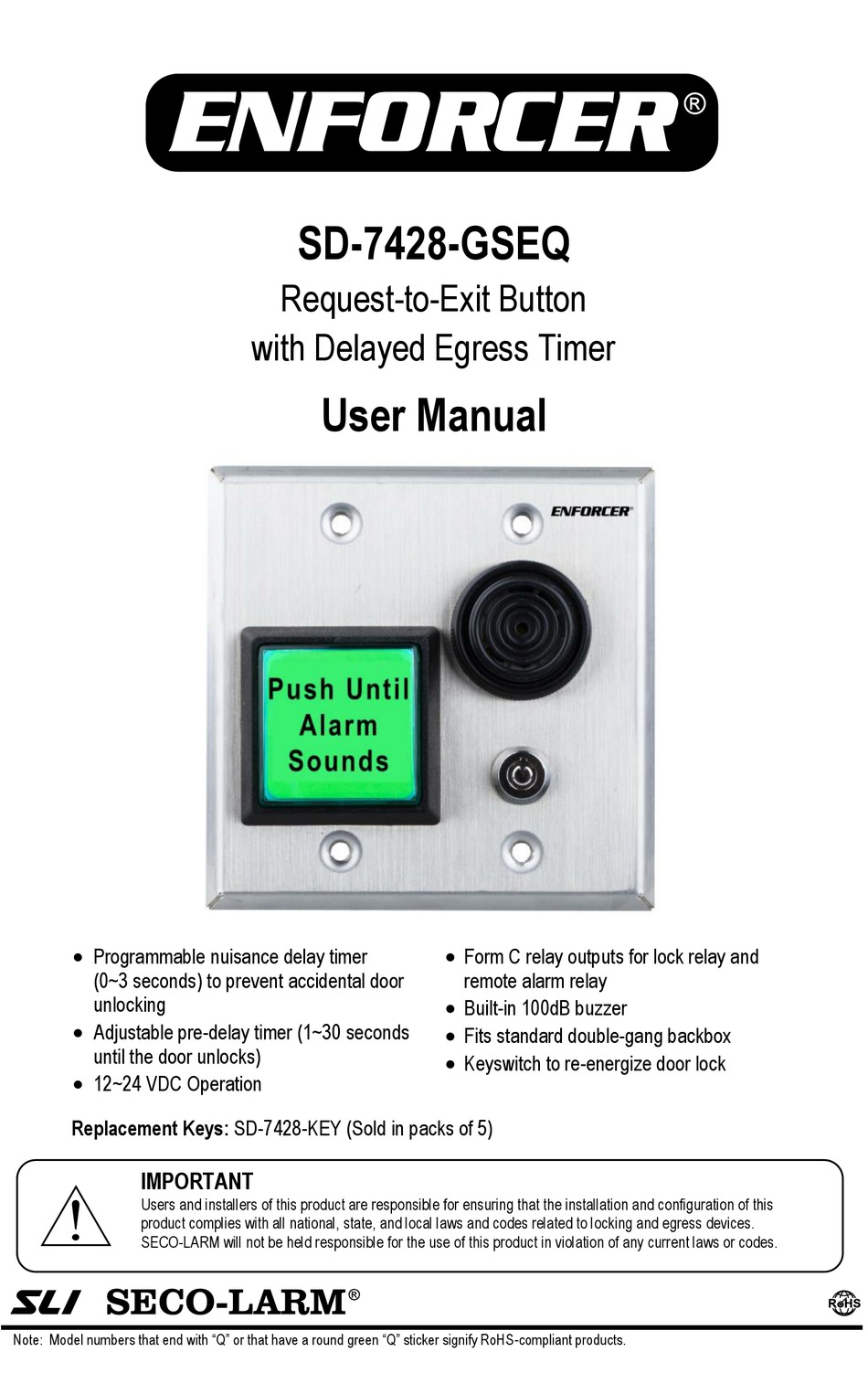

SD-7428-GSEQ
Request-to-Exit Button
with Delayed Egress Timer
User Manual
Form C relay outputs for lock relay and
remote alarm relay
Built-in 100dB buzzer
Fits standard double-gang backbox
Keyswitch to re-energize door lock
