Trivum TouchPad 4.3 Installation Manual

Further documentation and troubleshooting
To find helpful log files in support cases:
– Open the Music Center WebConfig.
– Click Logs & Warnings.
Please visit also our website for the latest documentation,
videos and information:
http://www.trivum.com
http://service.trivum.com
If support is needed
Please contact your local trivum dealer or write to:
service@trivum.com
Download links:
trivum ServerAdmin Tool (Windows):
http://service.trivum.com/win-admintool
How to update your trivum v8 to v9?
http://service.trivum.com/v9-update
v2_201603 - Errors and specifications subject to change
without notice.

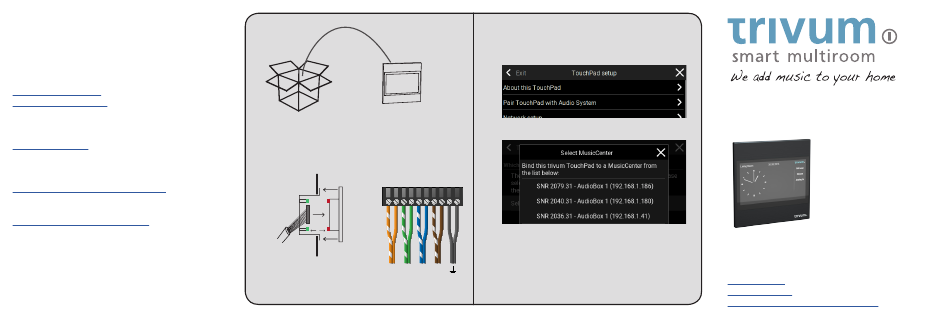

1. Unpacking
2. Mounting
Connector TouchPad side
wall box 4.3"
2
1
magnet
2
CAT5
TouchPad
POE
1 3 5
2 4 6
3. MusicCenter binding
– Wait a few seconds until the TouchPad has booted
– On the starting screen press Pair TouchPad with
Audio System
– Press Select... and select your preferred trivum
MusicCenter from the pop-up menu
i Note: The TouchPad 4.3" necessarily require the
current multiroom software v9!
Please make sure your trivum multiroom system is
running v9.
7
8
How to update: http://service.trivum.com/v9-update
Quick Installation Guide for
TouchPad 4.3"
Requires:
9
v
