BASTRON B9 User Manual

BASTRON B9 User Manual

Bluetooth glass keyboard

Advertisement

Quick Links

BASTRON
B9 Bluetooth Glass
Keyboard User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the B9 and is the answer not in the manual?

Questions and answers

Summary of Contents for BASTRON B9

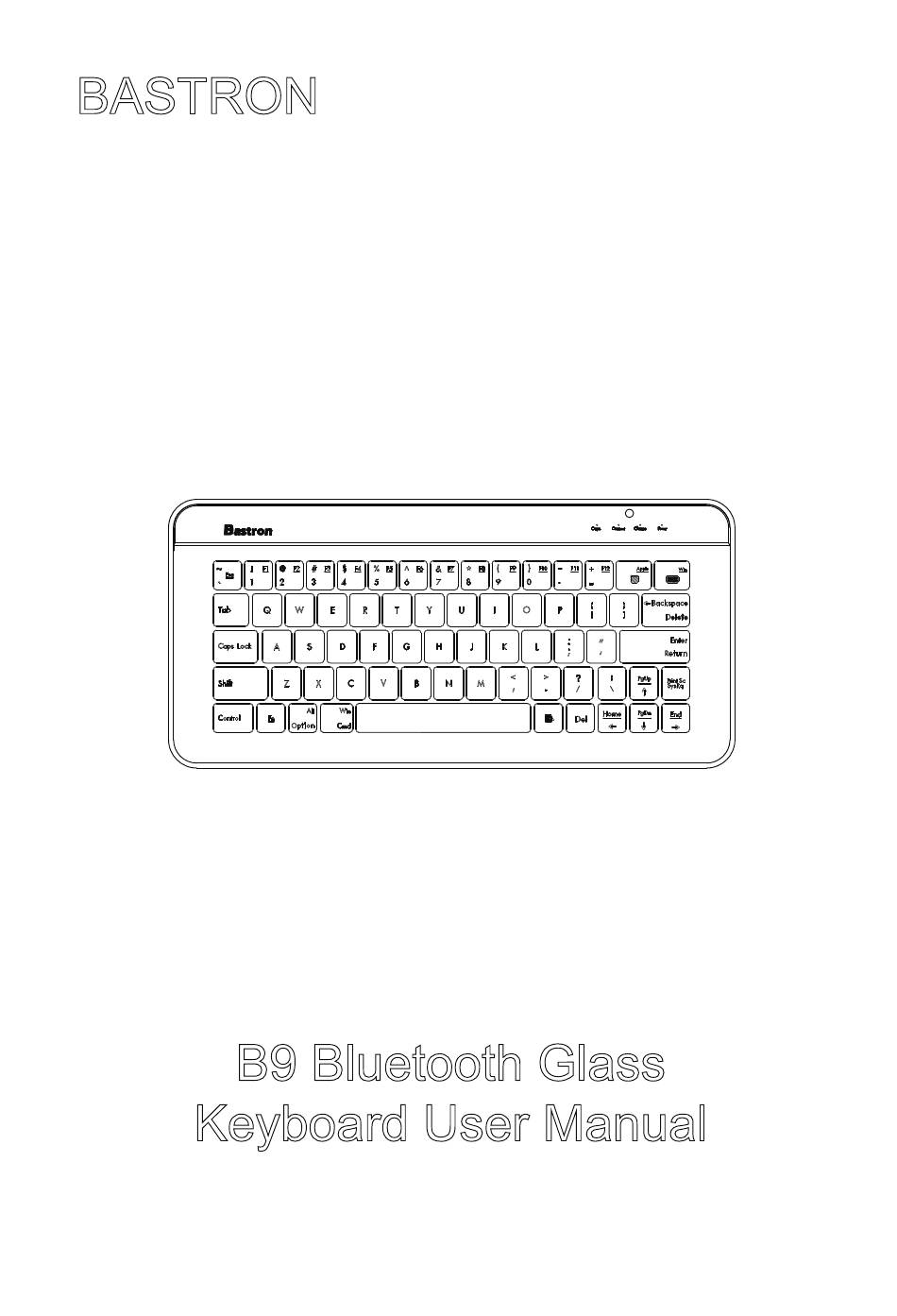

  • Page 1 BASTRON B9 Bluetooth Glass Keyboard User Manual...
  • Page 2: Package Including

    To Dear User Welcome to use our bluetooth glass keyboard,before using it in the first time,please read the user manual carefully.The glass keyboard is made of transparent tempered glass,and combination of exquisite aluminum frame,beauty and fashion.Supporting for multiple gesture control,can replace of mouse,it is compatible with Mac OSX and Windows system,to bring you a whole new different experience.
  • Page 3 Bluetooth mode fast using guide Bluetooth Connecting: 1.Press the Power button to turn on the keyboard,both Connect LED and Power LED will light up for 5 seconds,then Connect LED will begin to flash,now enter into paring status. 2.Select the Settings icon on your tablet/PC/Mobile’s screen. 3.Locate and select Bluetooth from the setting menu.
  • Page 4 Line transmission mode fast using guide 1. Default system: Mac OSX Default mode: Keyboard mode 2.In Mac OSX system: LED backlight is bright without touching,it turns dark aftertouching. In Windows system: LED backlight is dark without touching,it turns bright after touching. 3.
  • Page 5 Gesture Guide 1、B9 keyboard has two functions of keyboard and touchpad, you need to switch mode when using different function . switch the mode Keyboard mode Touchpad mode switch the system Fn + Fn + Mac system Windows system 2、Note:the touchpad function is only available using Mac OSX and Windows systems.Not available for use on tablets/smartphones.
  • Page 6 Two fingers: Click with two finger is right click; Swipe up/down with two finger is mouse wheel. Mac OSX Two fingers: (when viewing pictures) Swipe left/right is picture switching.
  • Page 7 Two fingers:Two finger separate and get close is zoom in and zoom out. Mac OSX Three fingers: Select function.
  • Page 8 Four fingers move up for Mission Control or down for Application Windows.(the system default shortcut is control+↑or↓) Mac OSX Four fingers move right or left for Move right or left a space.(the system default shortcut is control+←or →)...
  • Page 9 Five fingers: Flick with five fingers is show the desk.(The system default shortcut: F11) Mac OSX Five fingers: catch up with five finger is Launchpad(set the follow steps) 1.System preference/Keyboard/Keyboard choose "Use all F1,F2,etc.keys as standard functions keys" 2.System preference/Keyboard/Shortcuts/Launchpad&Dock choose "Show Launchpad"and change to"Control+L"...
  • Page 10 Single finger: keep moving is mouse pointer, click with single finger is left click; Slide came from the right side is super button (Windows Windows Two fingers: Two finger separate and get close is zoom in and zoom out.
  • Page 11 Two fingers: Click with two finger is right click; Swipe up/down with two finger is mouse wheel. Windows Two fingers: (when viewing pictures) Swipe left/right is picture switching.
  • Page 12 Three fingers: Select function. Windows Four fingers: Swipe left/right is switch the task in left/right.
  • Page 13 Four fingers: Swipe up is maximize the current task(Windows 8);Swipe down is minimize the current task. Windows Five fingers:Flick with five fingers/catch up with fiver fingers is show the desk.
  • Page 14 Ten fingers :touch the screen at the same time to switch the backlight Mac OSX / Windows...
  • Page 15 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
