Beta Technology DR-2000 Installation And Operating Manual

INTRODUCTION

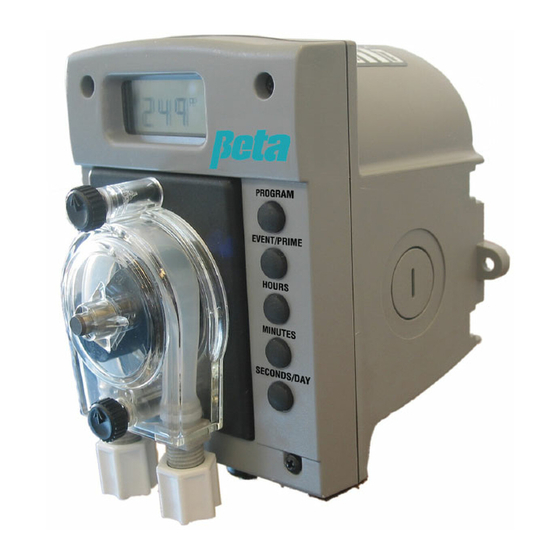

The DR-2000 is a time-activated water-resistant peristaltic pump
for industrial applications. Up to 24 events may be programmed
with variable run times for each event from one second to 20
minutes. The DR-2000 operates a 7-day clock in which events
can be programmed to occur every day or only on particular
days throughout the week. A back up battery keeps the clock
running in the event of an interruption in the electrical power.
The DR-2000 is available for use with 115VAC, 230VAC or
with a D-cell battery pack. Batteries are not included.
Battery life dependent on quality and age
of batteries used.
Figure 1a. DR-2000
Figure 1b. DR-2000 D-Cell Battery Unit
DR-2000 (R14735-00, Rev C) February 2010
DR2000MF01
DR2000MF01b
1210730
PREFACE
This manual describes how to install, setup, operate and
maintain the DR-2000. Material in this manual is subject to
change without notice. Manual revisions will be made on an as
needed basis. Special circumstances involving important design,
operation or application information will be released via
Equipment Technical Bulletins.
© Copyright 2003 Beta Technology
SAFETY
These symbols on the unit mean:
Direct Current
Alternating Current
SPECIFICATIONS

OPERATING CONDITIONS

Ambient Operating Temperature
35 to 104ºF (5 to 40ºC)
Electrical Power
Options available: 115VAC 50/60 Hz +/- 10%
230VAC 50/60 Hz +/- 10%
4 D-cell battery powered
Altitude
<2000 meters
Humidity
0 to 100% relative humidity (non-condensing) throughout
temperature range.
Ratings
Pollution Degree: 2
Installation Category II
Intended for indoor use only.
TIMING CAPABILITY
Up to 24 different times. Daily, weekly, or mixed schedule;
variable run time 1 second to 19 minutes and 59 seconds.
DIMENSIONS
115 VAC/230 VAC Version:
Size Height Width* Depth**
Inches 5.6 4.6
Centimeters 14.2 11.6
4.8
12.2
