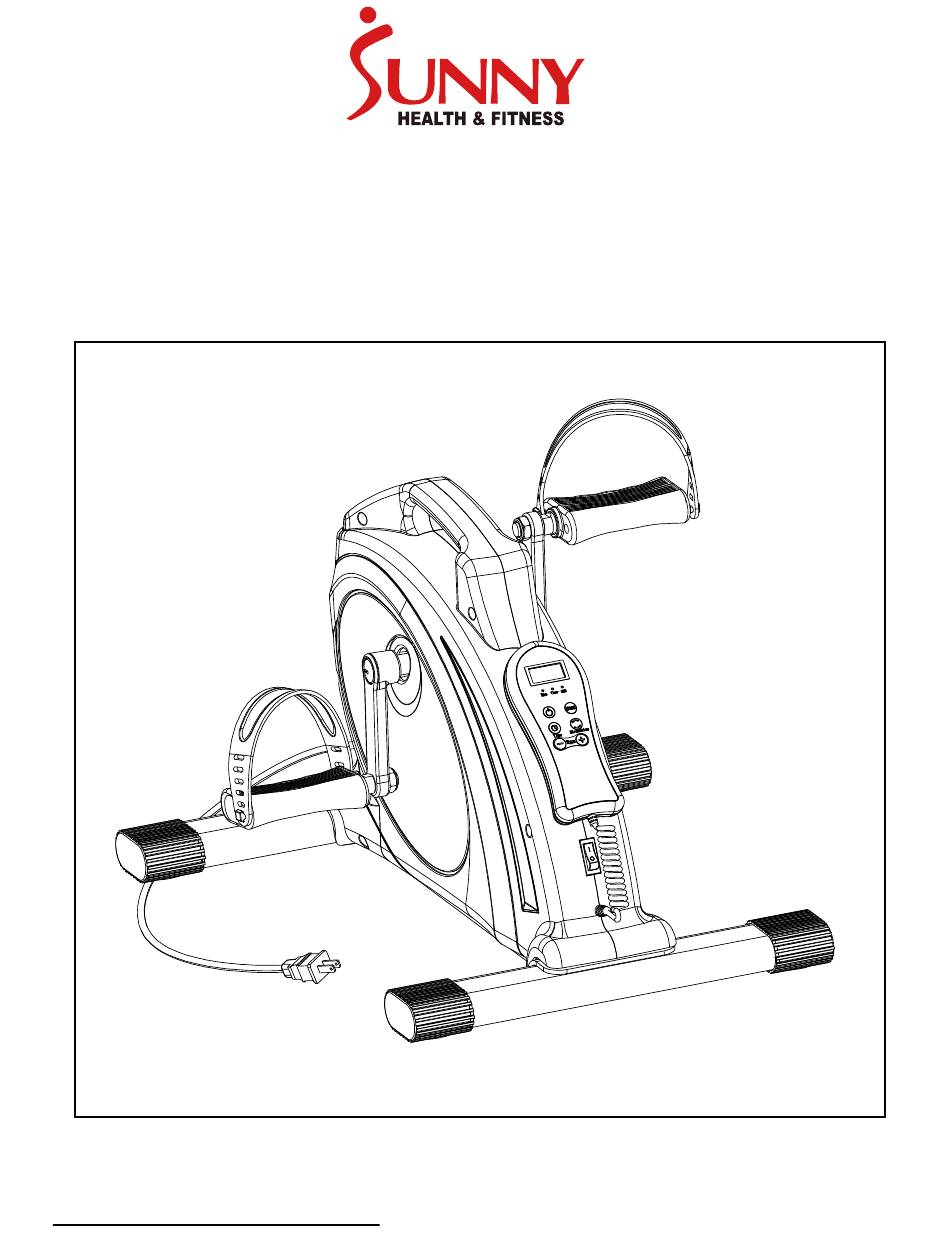

ELECTRIC SURFACE CYCLE 90
SF-B0717
USER MANUAL
IMPORTANT! Read all instructions carefully before using this product. Retain owner's
manual for future reference. For customer service, please contact:
support@sunnyhealthfitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-B0717 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunny Health & Fitness SF-B0717

  • Page 1 ELECTRIC SURFACE CYCLE 90 SF-B0717 USER MANUAL IMPORTANT! Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.

  • Page 3: Exploded Drawing

    EXPLODED DRAWING HARDWARE PACKAGE #5 M8 4pcs #5 M8 4pcs #A Spanner 1pc #B Wrench 1pc #C Wrench 1pc...

  • Page 4: Parts List

    PARTS LIST Description Spec. Main Frame Front Stabilizer Rear Stabilizer Screw Crank Cap Screw Crank-L Crank-R Screw Rubber Plate Motor Pedal-L Pedal-R Cover-R Screw Magnet Plastic Magnet Seat Washer Screw Screw Remote Control Rear Cover Screw Remote Control Remote Control Front Cover Label Remote Control Cable Power Cable...

  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS #5 M8 2pcs STEP 1: #A 1pc Attach the Front Stabilizer (No. 2) to the Main Frame (No. 1) using 2 Bolts (No. 5) and secure with Spanner (A). Attach the Rear Stabilizer (No. 3) to the Main Frame #5 M8 2pcs (No.
  • Page 6 STEP 2: Connect the Left Pedal (No. 13L) and Right Pedal (No. 13R) onto the Left Crank (No. 8L) and Right Crank (No. 8R). NOTE: The Left Pedal (No. 13L) and Right Pedal (No. 13R) are marked L for Left Pedal (No. 13L) and R for Right Pedal (No.

  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS ELECTRICAL INFORMATION ELECTRICAL INFORMATION Rated Voltage: 110V Rated Voltage: 110V SAFETY NOTES Do not stand on cycle. Only use while seated in a chair. If cycle is tilted over 45 degrees, it will auto stop. If cycle detects problems during exercise, it will auto stop within 10 seconds.
