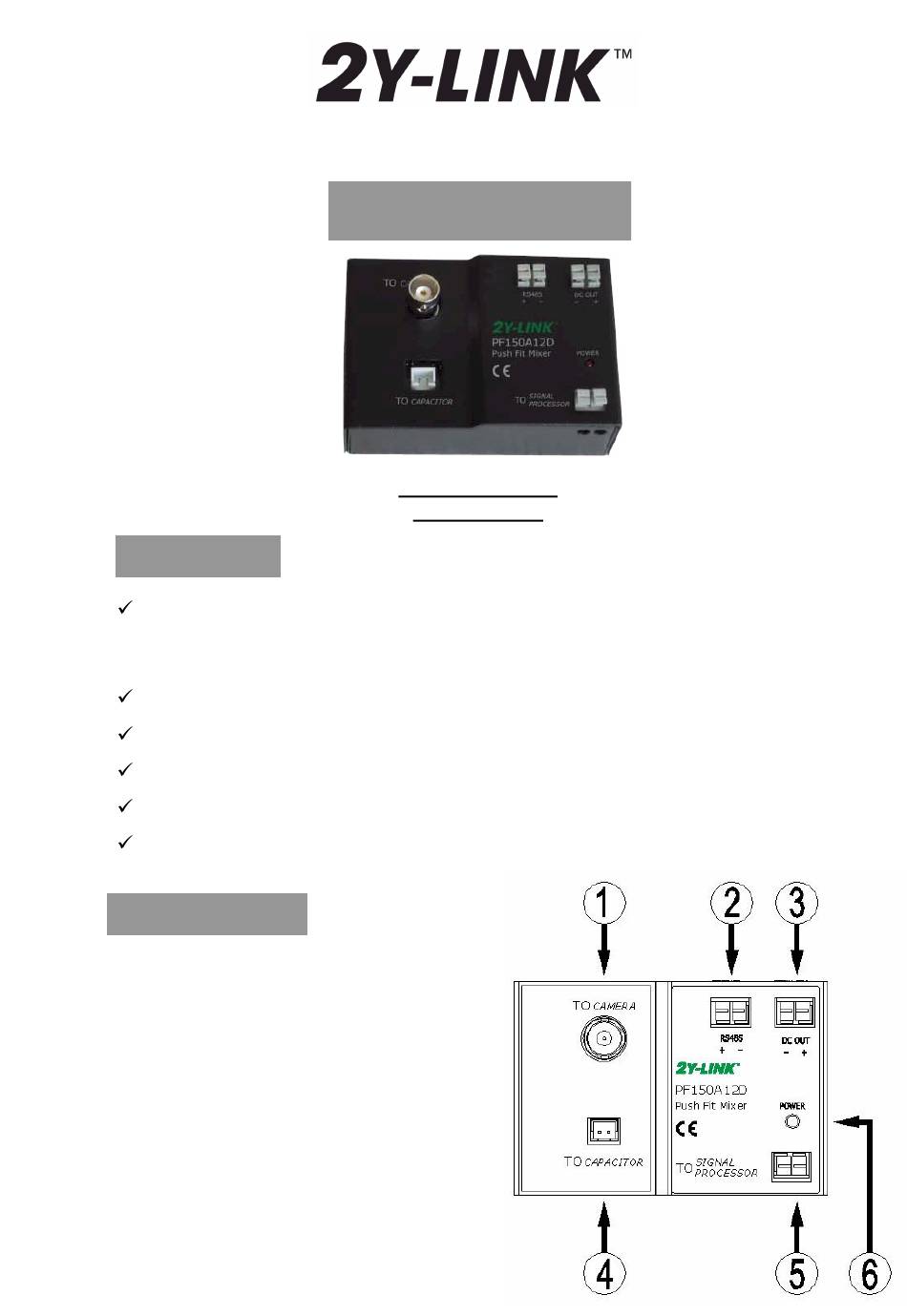

User Guide
Features
Power, video and control data are all transmitted between the
Signal Processor and Mixer through the same single pair of
wires, no separate wiring for RS485 data transmission
Transmission distance up to 500m
For cameras of power rating up to 1500mA
Push-Fit terminals for easy wiring with bell/speaker/UTP cable
No polarity restriction
Built-in ground loop isolation feature
Overview
1: Video Input (BNC Female plug)
2: RS485 (output, Push Fit Terminals)
3: Power to Camera
(Push Fit Terminals)
4: Power Stabilizer Terminal
5: 2-Wire to Signal Processor
Video & Power (Push Fit Terminals)
6: Power LED Indicator
High Power Model
User Guide
Push Fit Mixer
PF150A12D
1
Advertisement
Table of Contents
Related Manuals for 2Y-LINK PF150A12D
Summary of Contents for 2Y-LINK PF150A12D
- Page 1 High Power Model User Guide User Guide Push Fit Mixer PF150A12D Features Power, video and control data are all transmitted between the Signal Processor and Mixer through the same single pair of wires, no separate wiring for RS485 data transmission...
- Page 2 Connection Diagram Connect with CI-01-ASP-DI & PF150A12D as shown in this diagram Wiring Notes...
- Page 3 • The following table shows the necessary wire gauge for twin bell wire over the expected length between camera and TV Monitor. ≤ ≤ ≤ ≤ ≤ 680mA ≤ ≤ ≤ ≤ 1000mA 500mA PF150A12D PF150A12D PF150A12D AWG20 ≤ 400m ≤...
