AquaMetrix SHARK TX User Manual

Multi-parameter transmitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

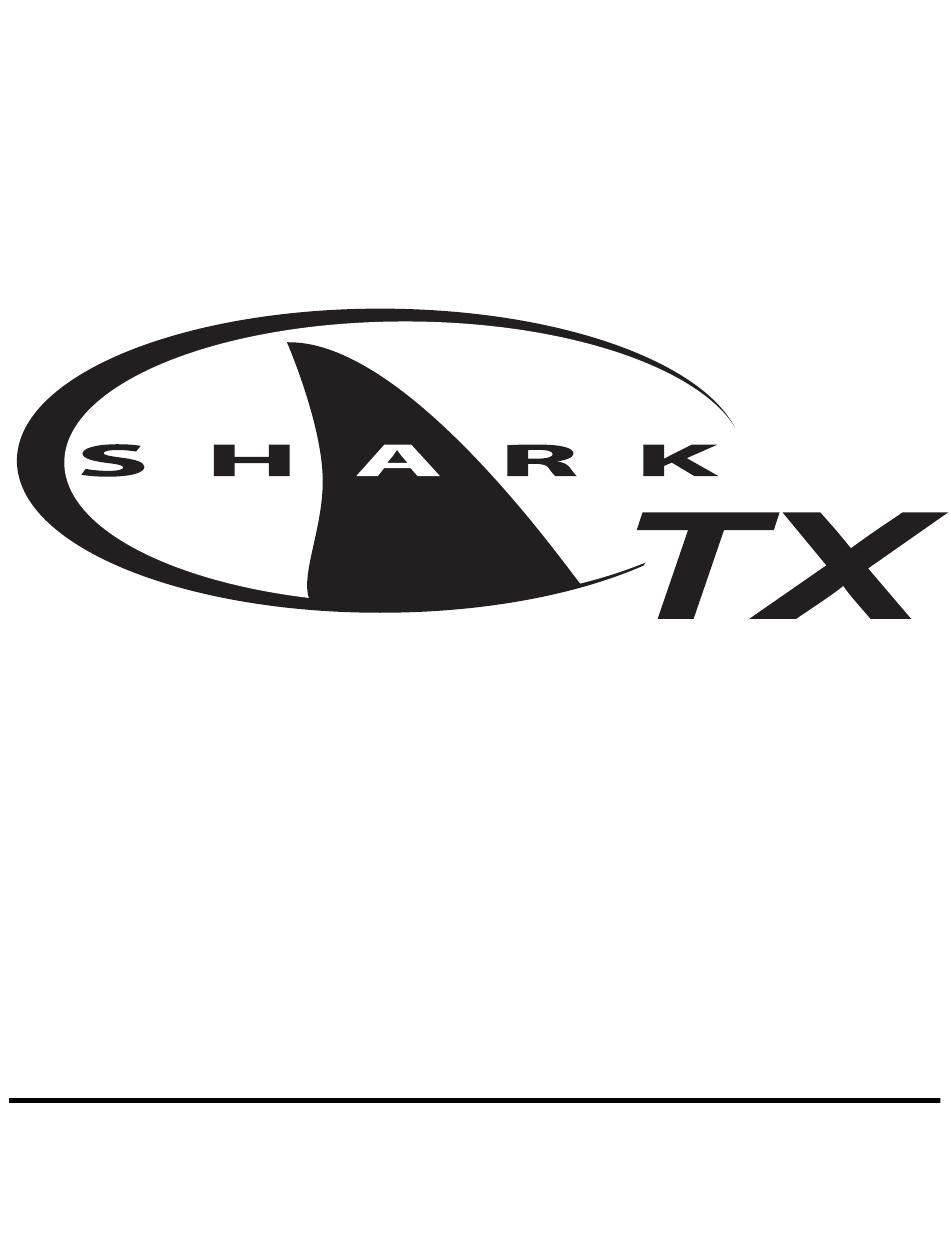

SHARK
& SHARK
MULTI-PARAMETER
TX
TXP
TRANSMITTER USER'S MANUAL
N116-35 Rev 3
A57-24
AquaMetrix Inc.
Tel: (800) 742-1413
1245 Maple Hill Ct., Unit 7
(905) 954-0841
Newmarket, ON
Fax: (905) 954-0415
Canada, L3Y 9E8
www.aquametrix.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHARK TX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AquaMetrix SHARK TX

  • Page 1 SHARK & SHARK MULTI-PARAMETER TRANSMITTER USER’S MANUAL N116-35 Rev 3 A57-24 AquaMetrix Inc. Tel: (800) 742-1413 1245 Maple Hill Ct., Unit 7 (905) 954-0841 Newmarket, ON Fax: (905) 954-0415 Canada, L3Y 9E8 www.aquametrix.com...

  • Page 2: Table Of Contents

    MULTI-PARAMETER TRANSMITTER USER’S MANUAL Table of Contents Subject Page No. Introduction Section 1 - Specifications Section 2 - Installation 3 - 5 Section 3 - Electrical Connections & Setup 6 - 11 Differential Probe connection & setup Combination Probe connection & setup Conductivity Cell (Contacting style) connection &...

  • Page 3: Introduction

    MULTI-PARAMETER TRANSMITTER USER’S MANUAL Introduction The SHARK & SHARK multi-parameter transmitter is a microprocessor based transmitter capable of measuring one of the following parameters, pH, ORP, conductivi- ty or flow. When shipped from the factory, the Shark is not set to measure any one parameter. When the Shark is powered up for the first time, it will display the meter selection screen where the meter type must be selected.

  • Page 4: Section 1 - Specifications

    MULTI-PARAMETER TRANSMITTER USER’S MANUAL Section I - Specifications Conductivity Flow Display 2 x 16 alpha-numeric LCD display Power Requirements 4 to 20mA, Loop Powered, 16 to 32 VDC Flow: 0 to 9999 with selectable MΩ/cm 0 to 19.99 0.01 flow rate units 0 to 2.000 0.01 0.01 to 14.00 ORP: -1999 to +1999mV...

  • Page 5: Section 2 - Installation

    2.2 Location Locate the transmitter close to the sensor. The list below gives typical maximum distances for various sensors. Refer to the sensor specifications for exact information. • Aquametrix Differential PH Probe 3000 ft (914 meters) • Aquametrix Combination PH Probe 10 ft (3 meters) •...
  • Page 6 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Section 2 - Installation Fig 2.2 SHARK Transmitter dimensions Dwg# N106-129 Panel Mount – The transmitters can be panel mounted to a panel using the hardware kit provided. The panel cutout dimensions are shown in fig. 2.1 and 2.2. Figure 2.3 Panel Mount EXTERNAL PANEL GASKET QTY.1...

  • Page 7: Section 2 - Installation

    MULTI-PARAMETER TRANSMITTER USER’S MANUAL Section 2 - Installation Surface Mount – The SHARK can be surface Figure 2.4 Surface Mount mounted using the hardware kit provided with the unit. UNIVERSAL MOUN TING BRACKET QTY.1 Pipe Mount – The SHARK can be mounted to a SCREW horizontal or vertical pipe with: 10-24 X 1/2"...

  • Page 8: Section 3 - Electrical Connections & Setup

    MULTI-PARAMETER TRANSMITTER USER’S MANUAL Section 3 - Electrical Connections and Setup 3.1 Conduit Connections The SHARK has two 1/2” conduit holes at the bottom of the enclosure as shown on fig. 2.1. The unit is shipped with these holes plugged with liquid tight conduit seals. These must be left in unused holes to maintain the NEMA 4X integrity.

  • Page 9: Differential Probe Connection & Setup

    3.3 pH and ORP Differential Probe connections and setup The drawing shows the connections for the Aquametrix Differential (5 wire) probe. The cable should be run in a conduit separate from AC power wires, and via a separate conduit hole.

  • Page 10: Combination Probe Connection & Setup

    3.4 pH or ORP Combination Probe connections and setup The drawing shows the connections for the Aquametrix Combination probe. The cable should be run in a conduit separate from AC power wires, and via a separate conduit hole. The cable length should not exceed 10 feet (3 meters).

  • Page 11: Conductivity Cell (Contacting Style) Connection & Setup

    3.5 Conductivity Cell (Contacting style) connections and setup The drawing shows the connections for the Aquametrix Conductivity Cells (Contacting style). The cable should be run in a conduit seperate from the AC power wires, and via a seperate conduit hole. The cell cable length should not exceed 300ft.

  • Page 12: Paddle Wheel Flow Sensor Connection & Setup

    MULTI-PARAMETER TRANSMITTER USER’S MANUAL Section 3 - Electrical Connections and Setup 3.6 Paddle Wheel Flow Sensor connections and setup The drawing shows the connnections for a typical paddle wheel flow sensor. The cable to the sensor should not exceed 2000’ (600 meters). Figure 3.5 Connections for Flow Sensor CAUTION: Always disconnect...

  • Page 13: 4-20Ma Isolated Output

    MULTI-PARAMETER TRANSMITTER USER’S MANUAL Section 3 - Electrical Connections and Setup 3.10 MANUAL TEST MODE (LCD MENU SECTIONS - pH: 4.4, ORP: 5.3, Conductivity: 6.4, Flow: 7.2) The setup can be tested using Manual Test Mode to simulate process changes. MANUAL TEST MODE is used to simulate a process reading in order to verify the correct response of the output.

  • Page 14: Section 4 - Using The Transmitter In Ph Mode

    MULTI-PARAMETER TRANSMITTER USER’S MANUAL Section 4 - Using the Transmitter in pH Mode 1/4" TURN SCREWS (FOR SHARK ONLY) 2 LINE, 16 CHARACTER UNIT LABEL LCD DISPLAY LABEL TO INDICATE UNIT OF MAIN MENU INTERFACE MEASURE SHARK IS SCREEN CONFIGURED FOR. SIMPLE THREE-BUTTON INTERFACE FOR FAST &...

  • Page 15: Lcd Menu

    MULTI-PARAMETER TRANSMITTER USER’S MANUAL pH - Menu Overview 4.0 RUN MODE 7.15pH 25.0C DOWN CALIBRATION MANUAL CALIBRATE DOWN DOWN MANUAL CAL pH pH PROBE UTILITIES SEC. 4.1 DOWN AUTO CALIBRATE DOWN AUTO CAL pH pH PROBE SETUP SEC. 4.2 DOWN DOWN CALIBRATE TEMP.
  • Page 16 MULTI-PARAMETER TRANSMITTER USER’S MANUAL pH - Calibration Menu - Manual Calibrate 4.1 RUN MODE 7.15pH 25.0C DOWN Place the probe in the first buffer solution, be sure to clean and rinse the Probe first with D.I. CALIBRATION MANUAL CAL pH IF BUFFER1 READY water and then insert it in the 7.00 buffer.
  • Page 17 MULTI-PARAMETER TRANSMITTER USER’S MANUAL pH - Calibration Menu - Auto Calibrate 4.2 RUN MODE 7.15pH 25.0C DOWN CALIBRATION MANUAL CAL pH DOWN Place the probe in the first buffer solution, be sure to clean and rinse the Probe first AUTO CAL pH IF BUFFER1 READY with D.I.
  • Page 18 MULTI-PARAMETER TRANSMITTER USER’S MANUAL pH - Calibration Menu - Temperature Calibration 4.3 RUN MODE 7.15pH 25.0C DOWN CALIBRATION MANUAL CAL pH If the Temperature Compensation Override is set to ON DOWN (see section 4.11), the Shark cannot calibrate the temperature sensor. This display will appear to alert the AUTO CAL pH user to the condition.
  • Page 19 MULTI-PARAMETER TRANSMITTER USER’S MANUAL pH - Utilities Menu - Manual Test Mode 4.4 Manual Test Mode is used to simulate a process reading in order to verify the correct response of the output. RUN MODE When in the Manual Test Mode, the output IS no longer 7.15pH 25.0C placed on hold as it is when in the rest of the menu.
  • Page 20 MULTI-PARAMETER TRANSMITTER USER’S MANUAL pH - Utilities Menu - Meter Selection 4.5 RUN MODE The Meter Selection menu is used to select the meter type that the 7.15pH 25.0C controller is configured for, either pH, ORP, Conductivity or FLow. DOWN Once selected, the controller will initialize itself for the selected meter's CALIBRATION functionality and move to run mode.
  • Page 21 MULTI-PARAMETER TRANSMITTER USER’S MANUAL pH - Setup Menu - Probe Select 4.6 RUN MODE 7.15pH 25.0C PROBE SELECT will allow the user to select DOWN whether the probe is a 2 or 4 wire CALIBRATION combination probe, or a 5 wire differential probe.
  • Page 22 MULTI-PARAMETER TRANSMITTER USER’S MANUAL pH - Setup Menu -Temp Unit 4.7 RUN MODE 7.15pH 25.0C TEMP UNIT allows the user to select either Degrees Centigrade or Fahrenheit units for DOWN display CALIBRATION DOWN UTILITIES DOWN SETUP PROBE SELECT DOWN TEMP UNIT TEMP UNIT Press the key once...
  • Page 23 MULTI-PARAMETER TRANSMITTER USER’S MANUAL pH - Setup Menu - Temp. Sensor 4.8 RUN MODE 7.15pH 25.0C TEMP SENSOR allows the user to select the type of temperature sensor used the in the DOWN probe. CALIBRATION The factory default for pH is a 300 NTC DOWN Ω...
  • Page 24 MULTI-PARAMETER TRANSMITTER USER’S MANUAL pH - Setup Menu - Auto Return 4.9 RUN MODE 7.15pH 25.0C DOWN AUTO RETURN is used to select what conditions will cause the controller to time-out of the operations CALIBRATION menu DOWN UTILITIES DOWN MENU ON will cause the controller to exit the menu and SETUP PROBE SELECTION revert back to the online run mode after 10 minutes with no...
  • Page 25 MULTI-PARAMETER TRANSMITTER USER’S MANUAL pH - Setup Menu - T.Comp Override 4.10 RUN MODE 7.15pH 25.0C Temperature Compensation Override is used to manually set the actual probe or process temperature. This is useful if the DOWN probe does not have a temperature sensor or if the process CALIBRATION temperature is constant.
  • Page 26 MULTI-PARAMETER TRANSMITTER USER’S MANUAL pH - Setup Menu - Display Damping 4.11 RUN MODE 7.15pH 25.0C DOWN CALIBRATION DOWN UTILITIES The Display Damping menu allows the user to adjust DOWN the rate at which the display and the output is SETUP PROBE SELECTION updated.
  • Page 27 MULTI-PARAMETER TRANSMITTER USER’S MANUAL pH - Diagnostics Menu - Firmware Rev 4.12 The FIRMWARE REV menu allows the user to see what revision of RUN MODE 7.15pH 25.0C the firmware is currently installed in the controller. This is a Read DOWN Only menu item.
  • Page 28 MULTI-PARAMETER TRANSMITTER USER’S MANUAL pH - Diagnostics Menu - Calibration Data 4.13 RUN MODE 7.15pH 25.0C The Calibration Data menu is a series of read only screens which DOWN allow the user to view the data collected during the last calibration. CALIBRATION DOWN UTILITIES...
  • Page 29 MULTI-PARAMETER TRANSMITTER USER’S MANUAL pH - Diagnostics Menu - Sensor Input 4.14 7.15pH 25.0C RUN MODE DOWN CALIBRATION DOWN The Sensor Input Menu allows the user to view real time, uncompensated process data from the probe. UTILITIES This is a Read only menu item. DOWN SETUP DOWN...
  • Page 30 MULTI-PARAMETER TRANSMITTER USER’S MANUAL pH - Output Menu - 4-20mA Output 4.15 RUN MODE 7.15pH 25.0C The Transmitter has a single 4-20mA output, electrically isolated from the ground. The output can source current into a DOWN maximum of 800 ohms. See Section 3.9 for wiring diagram. CALIBRATION The channel has a fully adjustable 4 &...

  • Page 31: Section 5 - Using The Transmitter In Orp Mode

    MULTI-PARAMETER TRANSMITTER USER’S MANUAL Section 5 - Using the Transmitter in ORP Mode 1/4" TURN SCREWS (FOR SHARK ONLY) 2 LINE, 16 CHARACTER UNIT LABEL LCD DISPLAY LABEL TO INDICATE UNIT OF MAIN MENU INTERFACE MEASURE SHARK IS SCREEN CONFIGURED FOR. SIMPLE THREE-BUTTON INTERFACE FOR FAST &...

  • Page 32: Lcd Menu

    MULTI-PARAMETER TRANSMITTER USER’S MANUAL ORP - Menu Overview 5.0 RUN MODE 500mV 25.0C DOWN CALIBRATION MANUAL CALIBRATE DOWN DOWN MANUAL CAL ORP ORP PROBE UTILITIES SEC. 5.1 DOWN CALIBRATE TEMP. DOWN TEMP CALIBRATION SENSOR IN ORP PROBE SETUP SEC. 5.2 DOWN DOWN EXIT...
  • Page 33 MULTI-PARAMETER TRANSMITTER USER’S MANUAL ORP - Calibration Menu - Manual Calibrate 5.1 RUN MODE 500mV 25.0C DOWN Place the probe in the buffer solution, be sure to clean and rinse the Probe first with D.I. CALIBRATION MANUAL CAL ORP IF BUFFER READY water and then insert it in the mV buffer.
  • Page 34 MULTI-PARAMETER TRANSMITTER USER’S MANUAL ORP - Calibration Menu - Temp. Calibration 5.2 RUN MODE 500mV 25.0C If the Temperature Display Override is set to ON (see DOWN section 5.10), the Shark cannot calibrate the temperature CALIBRATION MANUAL CAL ORP sensor. This display will appear to alert the user to the condition.
  • Page 35 MULTI-PARAMETER TRANSMITTER USER’S MANUAL ORP - Utilities Menu - Manual Test Mode 5.3 Manual Test Mode is used to simulate a process reading in order to verify the correct response of the output. When in the Manual Test Mode, the outputs is no longer RUN MODE 500mV 25.0C placed on hold as it is when in the rest of the menu.
  • Page 36 MULTI-PARAMETER TRANSMITTER USER’S MANUAL ORP - Utilities Menu - Meter Selection 5.4 The Meter Selection menu is used to select the meter type that the RUN MODE 500mV 25.0C controller is configured for, either pH, ORP, Conductivity or FLow. DOWN Once selected, the controller will initialize itself for the selected meter's functionality and move to run mode.
  • Page 37 MULTI-PARAMETER TRANSMITTER USER’S MANUAL ORP - Setup Menu - Probe Select 5.5 RUN MODE 500mV 25.0C PROBE SELECT will allow the user to select DOWN whether the probe is a 2 or 4 wire CALIBRATION combination probe, or a 5 wire differential probe.
  • Page 38 MULTI-PARAMETER TRANSMITTER USER’S MANUAL ORP - Setup Menu - Temp. Unit 5.6 RUN MODE 500mV 25.0C TEMP UNIT allows the user to select either Degrees Centigrade or Fahrenheit units for DOWN display CALIBRATION DOWN UTILITIES DOWN SETUP PROBE SELECT DOWN TEMP UNIT TEMP UNIT Press the...
  • Page 39 MULTI-PARAMETER TRANSMITTER USER’S MANUAL ORP - Setup Menu - Temp. Sensor 5.7 RUN MODE 500mV 25.0C TEMP SENSOR allows the user to select the type of temperature sensor used in the probe. DOWN CALIBRATION The factory default for ORP is a 300 NTC Thermistor.
  • Page 40 MULTI-PARAMETER TRANSMITTER USER’S MANUAL ORP - Setup Menu - Auto Return 5.8 RUN MODE 500mV 25.0C DOWN AUTO RETURN is used to select what conditions will CALIBRATION cause the controller to time-out of the operations DOWN menu UTILITIES DOWN MENU ON will cause the controller to exit the menu and SETUP PROBE SELECTION revert back to the online run mode after 10 minutes with no...
  • Page 41 MULTI-PARAMETER TRANSMITTER USER’S MANUAL ORP - Setup Menu - Temp. Display Override 5.9 RUN MODE 500mV 25.0C T. Display Override is used to blank the Temperature Display on the LCD menu and place 4 dots on the LED menu when DOWN Temp display is requested.This is to ensure the user isn't CALIBRATION...
  • Page 42 MULTI-PARAMETER TRANSMITTER USER’S MANUAL ORP - Setup Menu - Display Damping 5.10 RUN MODE 500mV 25.0C DOWN CALIBRATION DOWN UTILITIES The Display Damping menu allows the user to adjust DOWN the rate at which the display and the output is SETUP PROBE SELECTION updated.
  • Page 43 MULTI-PARAMETER TRANSMITTER USER’S MANUAL ORP - Diagnostics Menu - Firmware Rev 5.11 The FIRMWARE REV menu allows the user to see what revision of RUN MODE 500mV 25.0C the firmware is currently installed in the controller. This is a Read DOWN Only menu item.
  • Page 44 MULTI-PARAMETER TRANSMITTER USER’S MANUAL ORP - Diagnostics Menu - Calibration Data 5.12 RUN MODE 500mV 25.0C The Calibration Data menu is a series of read only screens which DOWN allow the user to view the data collected during the last calibration. CALIBRATION DOWN UTILITIES...
  • Page 45 MULTI-PARAMETER TRANSMITTER USER’S MANUAL ORP - Diagnostics Menu - Sensor Input 5.13 500mV 25.0C RUN MODE DOWN CALIBRATION DOWN The Sensor Input Menu allows the user to view real time, uncompensated process data from the probe. UTILITIES This is a Read only menu item. DOWN SETUP DOWN...
  • Page 46 MULTI-PARAMETER TRANSMITTER USER’S MANUAL ORP - Output Menu - 4-20mA Output 5.14 RUN MODE 500mV 25.0C The Transmitter has a single 4-20mA output, electrically isolated from the ground. The output can source current into a DOWN maximum of 800 ohms. See Section 3.9 for wiring diagram. CALIBRATION The channel has a fully adjustable 4 &...

  • Page 47: Section 6 - Using The Transmitter In Conductivity Mode

    MULTI-PARAMETER TRANSMITTER USER’S MANUAL Section 6 - Using the Transmitter in Conductivity Mode 1/4" TURN SCREWS (FOR SHARK ONLY) 2 LINE, 16 CHARACTER UNIT LABEL LCD DISPLAY LABEL TO INDICATE UNIT OF MAIN MENU INTERFACE MEASURE SHARK IS SCREEN CONFIGURED FOR. SIMPLE THREE-BUTTON INTERFACE FOR FAST &...

  • Page 48: Lcd Menu

    MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Menu Overview 6.0 RUN MODE 1000uS 25.0C DOWN CALIBRATION CALIBRATE PROBE DOWN DOWN MANUAL CAL COND WITH BUFFER SOL'N UTILITIES SEC. 6.1 DOWN CALIBRATE PROBE WITH DOWN DRY CAL COND MANUFACTURER'S DATA SETUP SEC. 6.2 DOWN DOWN CALIBRATE TEMP.
  • Page 49 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Calibration Menu - Manual Calibrate 6.1 Manual Calibration is used to "wet calibrate the cell". This can be done with the cell installed in the process, or with the cell suspended in a known buffer solution. When calibrated "In Process", the actual conductivity is determined with a grab sample or a hand held meter, and the value entered in the display.
  • Page 50 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Calibration Menu - Dry Cal Cond 6.2 Dry Calibration eliminates the need for conductivity reference solutions, the user inputs the Cell K factor supplied by the factory. RUN MODE 1000uS 25.0C If the conductivity cell has a tag attached to it, specifying the DOWN exact cell constant, the user is prompted to enter this value.
  • Page 51 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Calibration Menu - Temp. Calibration 6.3 Temperature Calibration In most cases, the factory temperature calibration is accurate enough to ensure correct temperature readings. However, in some circumstances, the user may wish to ensure the temperature sensor is calibrated accurately, especially when operating at the extreme end of the conductivity cell temperature operating range, or where the temperature compensation is critical to correct process readings.
  • Page 52 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Utilities Menu - Manual Test Mode 6.4 Manual Test Mode is used to simulate a process reading in order to verify the correct response of the output. When in the Manual Test Mode, the output is no longer RUN MODE 1000uS 25.0C placed on hold as it is when in the rest of the menu.
  • Page 53 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Utilities Menu - Meter Selection 6.5 RUN MODE 1000uS 25.0C The Meter Selection menu is used to select the meter type that the controller is configured for, either pH, ORP, Conductivity or Flow. DOWN Once selected, the controller will initialize itself for the selected meter's CALIBRATION functionality and move to run mode.
  • Page 54 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Setup Menu - Conductivity Range 6.6 Conductivity Range will allow the user to select the measuring range of the instrument. The ranges can be selected from any of the following: RUN MODE 1000uS 25.0C 200 mS/cm - cell constant 50 20 mS/cm - cell constant 10 DOWN...
  • Page 55 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Setup Menu - Temp. Unit 6.7 RUN MODE 1000uS 25.0C TEMP UNIT allows the user to select either Degrees Centigrade or Fahrenheit units for DOWN display CALIBRATION DOWN UTILITIES DOWN SETUP COND RANGE DOWN Press the key once TEMP UNIT...
  • Page 56 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Setup Menu - Temp. Sensor 6.8 RUN MODE 1000uS 25.0C TEMP SENSOR allows the user to select the type of temperature sensor used the in the DOWN probe. CALIBRATION The factory default for Conductivity is a 3000 Ω...
  • Page 57 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Setup Menu - Auto Return 6.9 RUN MODE 1000uS 25.0C AUTO RETURN is used to select what conditions DOWN will cause the controller to time-out of the CALIBRATION operations menu DOWN UTILITIES MENU ON will cause the controller to exit the menu and DOWN revert back to the online run mode after 10 minutes with no buttons pressed.
  • Page 58 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Setup Menu - T. Comp Override 6.10 RUN MODE 1000uS 25.0C Temperature Compensation Override is used to manually set the actual probe or process temperature. This is useful if the probe DOWN does not have a temperature sensor or if the process temperature CALIBRATION is constant.
  • Page 59 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Setup Menu - Display Damping 6.11 RUN MODE 1000uS 25.0C DOWN CALIBRATION DOWN UTILITIES The Display Damping menu allows the user to adjust DOWN the rate at which the display and the output is SETUP COND RANGE updated.
  • Page 60 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Setup Menu - Temp. Comp. Curve 6.12 The Temperature Compensation Curve setting allows the user to select the RUN MODE 1000uS 25.0C temperature compensation to match a specific process. DOWN The variation of Conductivity versus Temperature is dependent on the type of CALIBRATION solids and liquids in water, so no fixed compensation value will accurately compensate every process.
  • Page 61 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Diagnostics Menu - Firmware Rev. 6.13 The FIRMWARE REV menu allows the user to see what revision of RUN MODE the firmware is currently installed in the controller. This is a Read 1000uS 25.0C Only menu item.
  • Page 62 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Diagnostics Menu - Calibration Data 6.14 RUN MODE 1000uS 25.0C The Calibration Data menu is a series of read only screens which DOWN allow the user to view the data collected during the last calibration. CALIBRATION DOWN UTILITIES...
  • Page 63 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Diagnostics Menu - Sensor Input 6.15 RUN MODE 1000uS 25.0C DOWN CALIBRATION DOWN The Sensor Input Menu allows the user to view real time, uncompensated process data from the conductivity cell. UTILITIES This is a Read only menu item. DOWN This "Live Data"...
  • Page 64 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Conductivity - Output Menu - 4-20mA Output 6.16 RUN MODE The Transmitter has a single 4-20mA output, electrically 1000uS 25.0C isolated from the ground. The output can source current into a DOWN maximum of 800 ohms. See Section 3.9 for wiring diagram. CALIBRATION The channel has a fully adjustable 4 &...

  • Page 65: Section 7 - Using The Transmitter In Flow Mode

    MULTI-PARAMETER TRANSMITTER USER’S MANUAL Section 7 - Using the Transmitter in Flow Mode 1/4" TURN SCREWS (FOR SHARK ONLY) 2 LINE, 16 CHARACTER UNIT LABEL LCD DISPLAY LABEL TO INDICATE UNIT OF MAIN MENU INTERFACE MEASURE SHARK IS SCREEN CONFIGURED FOR. SIMPLE THREE-BUTTON INTERFACE FOR FAST &...

  • Page 66: Lcd Menu

    MULTI-PARAMETER TRANSMITTER USER’S MANUAL Flow - Menu Overview 7.0 RUN MODE TOTAL 0 DOWN CALIBRATION ENTER FLOW SENSOR DOWN DOWN K FACTOR CALIBRATION FACTOR UTILITIES SEC. 7.1 DOWN DOWN EXIT SETUP DOWN DOWN DOWN DIAGNOSTICS DOWN SIMULATE PROCESS OUTPUT MANUAL TEST MODE VERIFY OUTPUTS DOWN SEC.
  • Page 67 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Flow - Calibration Menu - K Factor 7.1 The K Factor menu is used to enter the flow sensor calibration factor. The K Factor represents the number of pulses per U.S. Gallon, generated by the combination of sensor and flow fitting. It is normally stamped on the flow fitting or attached to a tag on the cable.
  • Page 68 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Flow - Utilities Menu - Manual Test Mode 7.2 Manual Test Mode is used to simulate a process reading in order to verify the correct response of the output. When in the Manual Test Mode, the output is no longer RUN MODE TOTAL placed on hold as it is when in the rest of the menu.
  • Page 69 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Flow - Utilities Menu - Meter Selection 7.3 RUN MODE The Meter Selection menu is used to select the meter type that the TOTAL controller is configured for, either pH, ORP, Conductivity or FLow. DOWN Once selected, the controller will initialize itself for the selected meter's CALIBRATION functionality and move to run mode.
  • Page 70 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Flow - Setup Menu - Units of Volume 7.4 The Units of Measurement is broken into two variables, UNITS OF VOLUME and UNITS OF TIME. The two variables are then combined to display the desired units of measure. For example, if units of Volume is to set Cubic Meters (CM) and Units of Time is set for Seconds (S), the controller will display flow as Cubic Meters per Second on the front LED display.
  • Page 71 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Flow - Setup Menu - Units of Time 7.5 The Units of Measurement is broken into two variables, UNITS OF VOLUME and UNITS OF TIME. The two variables RUN MODE TOTAL are then combined to display the desired units of measure. For example, if units of Volume is to set Cubic Meters (CM) DOWN and Units of Time is set for Seconds (S), the controller will display flow as Cubic Meters per Second on the front LED display.
  • Page 72 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Flow - Setup Menu - Auto Return 7.6 RUN MODE TOTAL AUTO RETURN is used to select what conditions DOWN will cause the controller to time-out of the CALIBRATION operations menu DOWN MENU ON will cause the controller to exit the menu and UTILITIES revert back to the online run mode after 10 minutes with no buttons pressed.
  • Page 73 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Flow - Setup Menu - Display Damping 7.7 RUN MODE TOTAL DOWN CALIBRATION DOWN UTILITIES The Display Damping menu allows the user to adjust DOWN the rate at which the display and the output is SETUP UNITS OF VOLUME updated.
  • Page 74 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Flow - Setup Menu - Totalizer Reset 7.8 RUN MODE TOTAL Totalizer Reset is used to reset the Flow totalizer to zero. DOWN Note that once complete, this action cannot be reversed. The CALIBRATION accumulated total will be erased permanently. DOWN UTILITIES DOWN...
  • Page 75 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Flow - Diagnostics Menu - Firmware Rev 7.9 RUN MODE TOTAL The FIRMWARE REV menu allows the user to see what revision of the firmware is currently installed in the controller. This is a Read DOWN Only menu item.
  • Page 76 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Flow - Diagnostics Menu - Calibration Data 7.10 RUN MODE TOTAL The Calibration Data menu is a read only screen which allow the DOWN user to view the K factor entered during the last calibration. CALIBRATION DOWN UTILITIES DOWN...
  • Page 77 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Flow - Diagnostics Menu - Sensor Input 7.11 RUN MODE TOTAL The Sensor Input Menu allows the user to view real time signals from DOWN the probe. The display will show the current input pulse rate in Hz CALIBRATION (pulses per second).
  • Page 78 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Flow - Diagnostics Menu - Permanent Total 7.12 RUN MODE TOTAL The Permanent Total is a running total of all the volume units that DOWN have been accumulated by the controller. It starts at zero when new, CALIBRATION and can only be set to zero at the factory.
  • Page 79 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Flow - Diagnostics Menu - Total Rollover 7.13 RUN MODE TOTAL The Total Rollover menu is another read only screen. It is used to DOWN indicate how many times the Permanent and Resetable Totalizers CALIBRATION have rolled over during the life of the controller. DOWN UTILITIES DOWN...
  • Page 80 MULTI-PARAMETER TRANSMITTER USER’S MANUAL Flow - Output Menu - 4-20mA Output 7.14 RUN MODE The Transmitter has a single 4-20mA output, electrically TOTAL isolated from the ground. The output can source current into a DOWN maximum of 800 ohms. See Section 3.9 for wiring diagram. CALIBRATION The channel has a fully adjustable 4 &...

  • Page 81: Appendix A - Probe Configuration Table

    MULTI-PARAMETER TRANSMITTER USER’S MANUAL Appendix A - Probe Configuration Table Model# Probe Select Temp. Sensor Model# Probe Select Temp. Sensor P60C-4 DIFFERENTIAL 300Ω R60C-4 DIFFERENTIAL 300Ω P60C-4-A DIFFERENTIAL 300Ω R60C-4-H DIFFERENTIAL 300Ω P60C-4-H DIFFERENTIAL 300Ω R60C-4-G DIFFERENTIAL 300Ω P60C-6 DIFFERENTIAL 300Ω...

  • Page 82: Return Policy & Warranty Plan

    AquaMetrix liability shall not exceed the cost of the product. Under no circumstances will AquaMetrix be liable for any incidental or consequential damages, whether to person or property. AquaMetrix will not be liable for any other loss, damage or expense of any kind, including loss of profits, resulting from the installation, use, or inability to use this product.
