Summary of Contents for Aerpro CHVL02

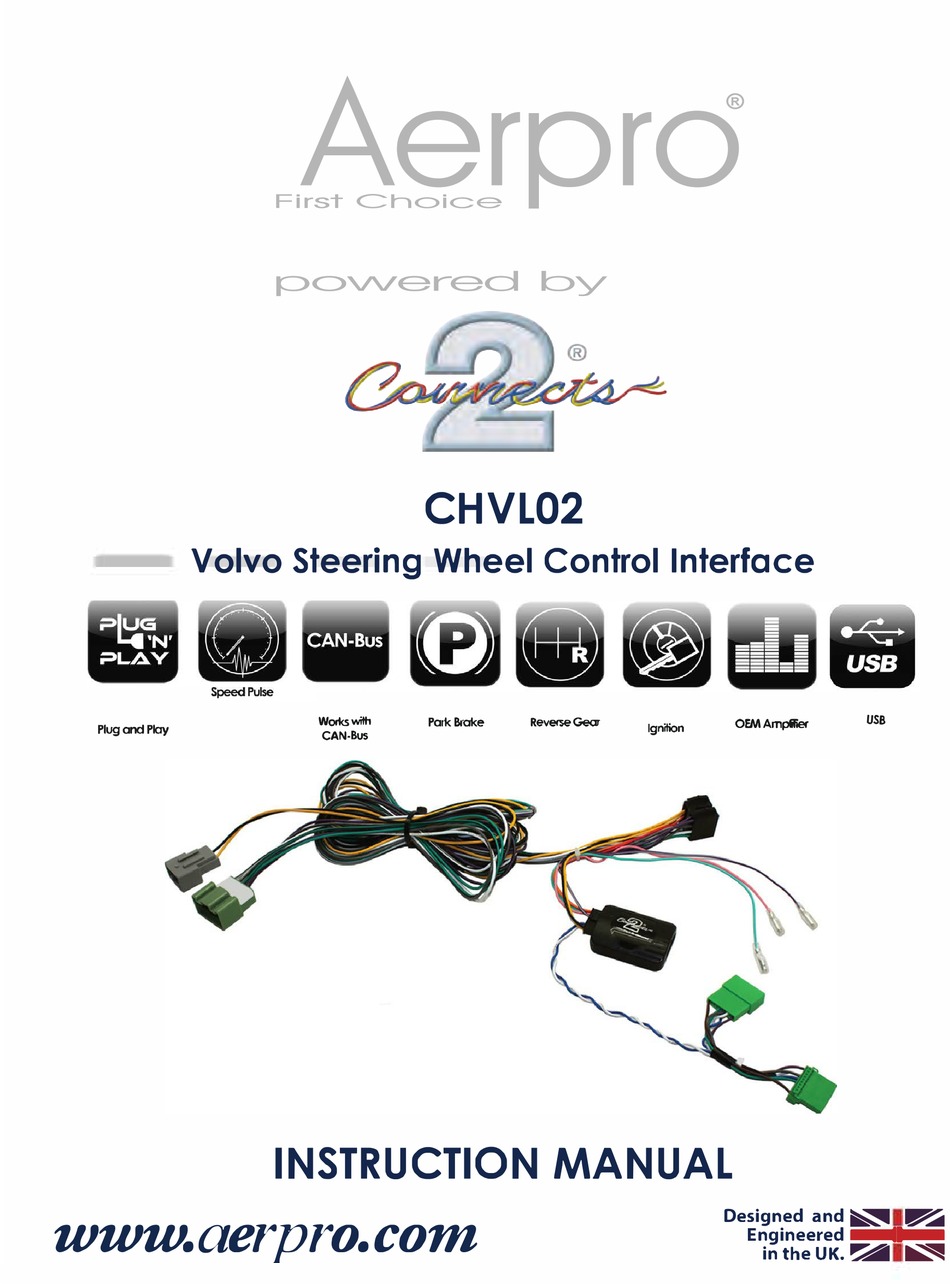

- Page 1 CHVL02 Volvo Steering Wheel Control Interface Park Brake Rev"""Gea OEM� ��;:: lgmion Plug and Play INSTRUCTION MANUAL www.aerpro.com Designed and � � Engineered - in the UK.��...
- Page 2 Aerpro can not be held responsible for the installation of this product. Technical Support Aerpro want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Aerpro, try to provide as much Information as possible.
- Page 3 Please see the head unit installation manual for further information on where to connect. Important Note: This step must be completed before connecting power to the interface. Failure to so do may result in no steering wheel control function. 4. Connect the 14 way molex connector to the interface. www.aerpro.com...
- Page 4 6. Feed the long extension loom down through the dashboard and behind the skirting (highlighted). Bring the wire up under the passenger seat and locate the OEM amplifier 7. Disconnect the amplifier connectors and plug these into the grey and green connectors of the extension loom www.aerpro.com...
- Page 5 Take the disconnected display lead and plug this into the female green vehicle display connector 9. Test head unit for correct operation and reassemble the dash. STEERING WHEEL CONTROL FUNCTIONS 1. Track - 2. Track+ 3. Pick Up 4. Hang Up 5. Volume+ 6. Volume - www.aerpro.com...
