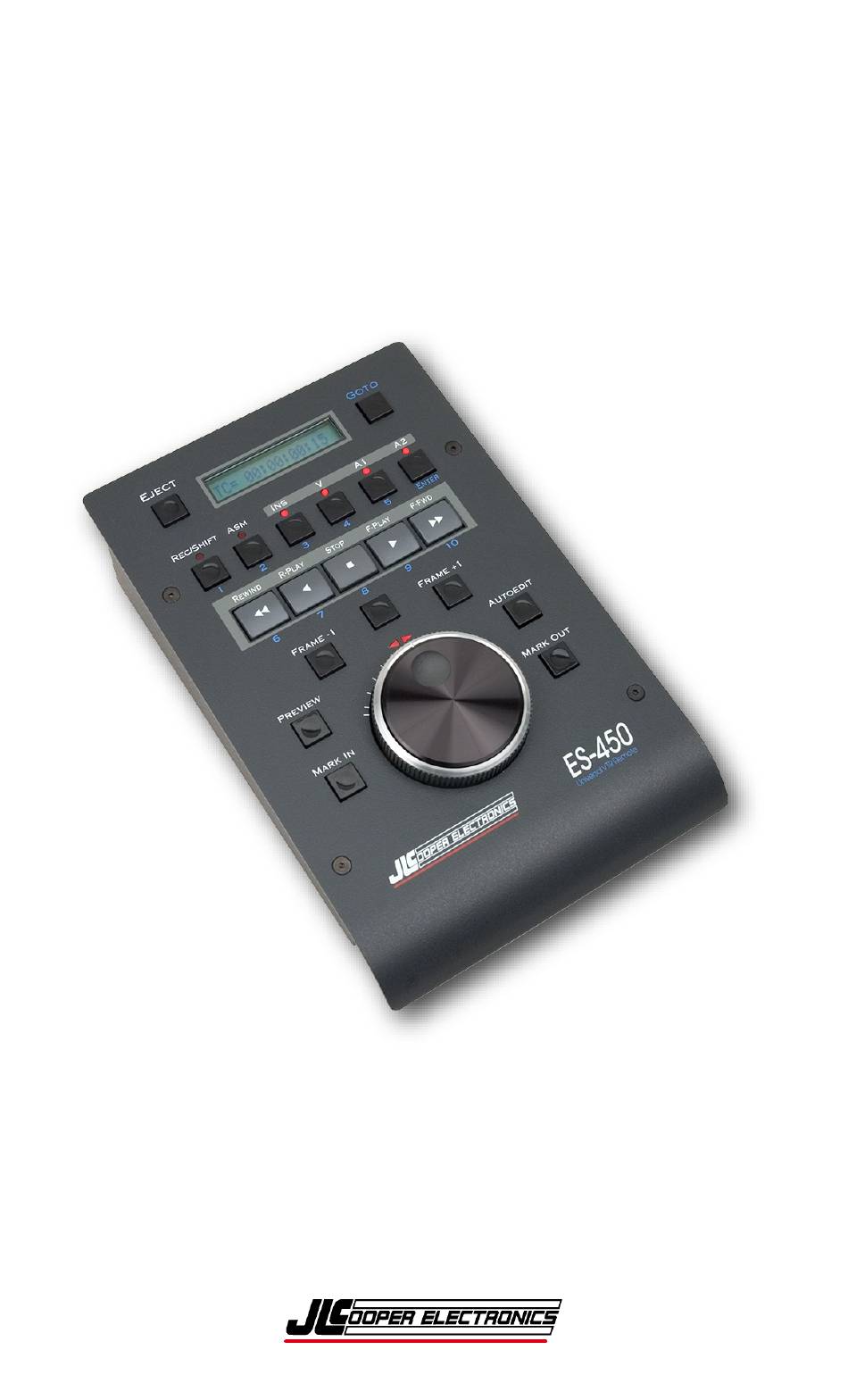

- Page 1 ES-450 J RS-422 Universal Jog/Shuttle Remote Users Manual August 24, 2018...
- Page 2 ES-450J RS-422 User’s Manual ES-450, ES-450J, ES-450J2 and ES-450J4 are trademarks of JLCooper Electronics. All other brand names are the property of their respective owners. ES-450J User’s Manual, Fourth Edition Part Number 932129 ©2018 JLCooper Electronics, 142 Arena Street, El Segundo, CA 90245 USA...
-
Page 3: Table Of Contents
One Touch Preset and Recall ..............Storing a Preset Location ..............Recalling a Preset Location ..............Technical Information ..............Pinout ....................command reference ................Replacement Parts ................Power Supply ..................Care and Service .................. JLCooper Electronics Limited Warranty ......... August 24, 2018... -
Page 4: Introduction

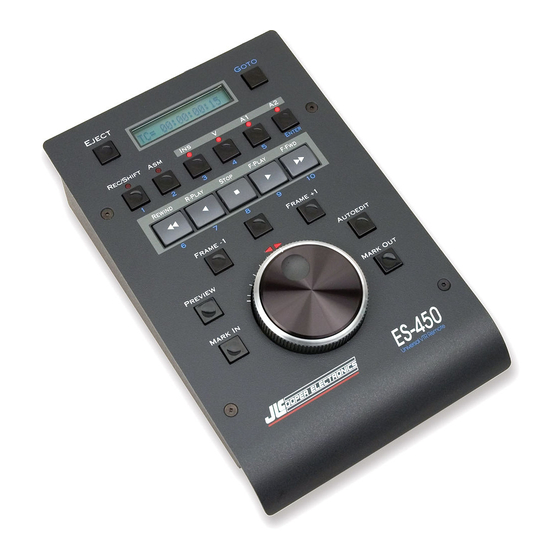

ES-450J RS-422 User’s Manual Introduction The JLCooper ES-450J RS-422 is a remote control for VTRs and other machines that support Sony 9 Pin "P2" protocol. The ES-450J controls professional analogue and digital VTRs, modular digital multitrack and disk-based VTR emulators. The ES-450J features a smooth, weighted and optically encoded jog shuttle wheel with concentric shuttle ring, and transport and function keys. -
Page 5: Connecting The Es-450J
ES-450J RS-422 User’s Manual Connecting The ES-450J! Connecting the ES-450J in your system is rather straightforward and easy. The ES-450J comes with an attached breakout cable. The end has 1 connector that connects directly to a video recorder. A power connector allows the connection of an AC power adapter. -
Page 6: Using Your Es-450J
ES-450J RS-422 User’s Manual Using Your ES-450J Identifying Your Recorder As soon as the ES-450J is powered up, the controller continuously asks the recorder for its Device ID. The ES-450J uses this response to adjust its behavior to specific recorders. The ES-450J also uses this Device ID to determine the frame rate of the recorder. -
Page 7: Using The Es-450J
ES-450J RS-422 User’s Manual Using The ES-450J F-PLAY Pressing the F-PLAY button causes the ES-450J to send the Play command. RECORD Pressing the SHIFT + F-Play button causes the ES-450J to send the Record command. This also known as Crash Record. When the recorder enters the record mode, the recorder will respond accordingly and the ES-450J will illuminate the Record indicator. -
Page 8: Clip/10 Sec+, Clip/10 Sec
ES-450J RS-422 User’s Manual CLIP/10 SEC+, CLIP/10 SEC- For the Ki Pro, Sony XDCAM and VideoDevices PIX Series recorders, pressing the Clip/10 Sec+ button causes the ES-450J to command the recorder to load the next clip. Pressing the Clip/10 Sec- button causes the ES-450J to command the recorder to load the previous clip. -
Page 9: Shuttle Ring
ES-450J RS-422 User’s Manual SHUTTLE RING Turning the outer Shuttle ring causes the recorder to play video quickly (faster than play speed). Turning the Shuttle ring clockwise from the center detent position causes the video to move forward. Conversely, turning the Shuttle ring counterclockwise from the center detent position causes the video to move backwards. -
Page 10: Goto
ES-450J RS-422 User’s Manual GOTO The ES-450J has the ability to cue the recorder to any arbitrary location that is valid for the recorder. The ES-450J has two ways to cue the recorder. • Manual Timecode Entry • One Touch Preset and Recall Manual Timecode Entry The Manual Timecode Entry method allows you to manually enter a timecode and have the ES-450J command the recorder(s) to go to that... -
Page 11: One Touch Preset And Recall
ES-450J RS-422 User’s Manual One Touch Preset And Recall The One Touch Preset and Recall method allows you to store a location and later recall that location. When the location is recalled, the ES-450J will command the recorder(s) to go to that location. Up to 7 locations can be stored. -
Page 12: Technical Information
ES-450J RS-422 User’s Manual Technical Information Pinout The pinout of the 9 pin D Subminiature connectors is shown in the following table. ES-450J Direction Recorder Ground Ground ← Receive A (-) Transmit A (-) Transmit B (+) → Receive B (+) Ground Ground Not used... -
Page 13: Command Reference
ES-450J RS-422 User’s Manual Command Reference The table below lists the various command messages that the ES-450J sends to the recorder. The specific messages may vary based on the actual recorder detected. Function Command 21 13 00 STOP 20 01 F-PLAY 21 22 40 R-PLAY... -
Page 14: Replacement Parts
ES-450J RS-422 User’s Manual Replacement Parts If replacement parts are needed, you can order them directly from JLCooper Electronics. You can contact us at the following email address: service@jlcooper.com You can also contact us at the following phone number: +1-310-322-9990 Power Supply The ES-450J uses a power supply that is rated at 9 volts DC at 500mA. -
Page 15: Jlcooper Electronics Limited Warranty
ES-450J RS-422 User’s Manual JLCooper Electronics Limited Warranty JLCooper Electronics ("JLCooper") warrants this product to be free of defects in materials or workmanship for a period of 12 months from the date of purchase. This warranty is non- transferable and the benefits apply only to the original owner. Proof of purchase in the form of an itemized sales receipt is required for warranty coverage.
