Penn Scale CM-101 Manual

CM-101

Legal for Trade

Certificate #04-101A1
Specification
Model CM - 101
Capacity 30.00 x 0.01 lb / 15.000 x 0.005 kg
Display LCD ( 5 / 5 / 6 )
Op. Temp. 0 C ~ 35 C / 32 F ~ 95 F
Dimension
Platter 300 x 250 mm
Height 110 mm
Length 335 mm
Width 320 mm
Power
DC 4 V / 4 Ah Rechargeable Battery
AC 120 V 50 / 60 Hz
Connecter Standard AC power connecter
Charge Life 120 hrs
Method to check the voltage condition
Method 1:
After the self-checking when you switch on the scale, the
price window will display: DC *.** (the voltage now)
Method 2:
During the process of usage, you can press the * key
and 00 key meanwhile, then the price window will
display: DC *.** (the voltage now),then you can press
any key to be back to the normal weighing condition.

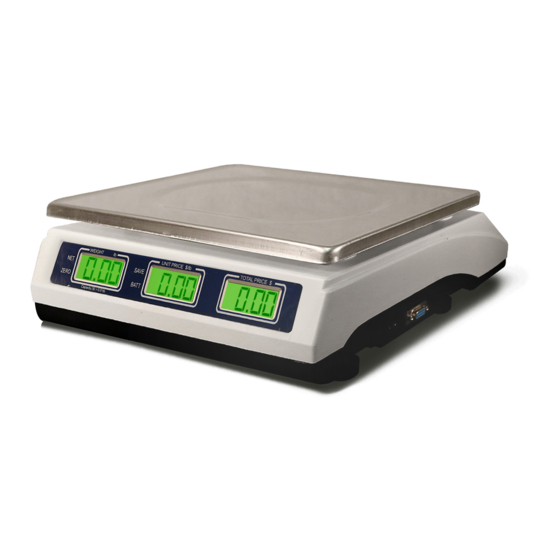

PENN SCALE
Price Computing Scale
/ 11.8 x 9.8 "
/ 4.3 "
/ 13.1 "
/ 12.5 "
Calibration Procedure
( Authorized License Dealer only )
Step 1. Turn the scale Power ON
Step 2. While the scale is in Testing Mode,
press TARE key
Step 3. Enter PASS-WORD
Step 4. When the scale displays
" c a l , f 1 ", press TARE key
Step 5. When the scale displays " Uload",
press TARE key with nothing on
the platter,
Step 6. When the scale displays " load " ,
place 30 lb weight on the Platter,
then press TARE
the scale will display "span pass"
< Note >
This procedure must be performed ONLY by the
authorized licensed personnel
If done by other, the field inspector from W & M
may NULLIFY the validity of the scale
Penn Scale Mfg. Co., Inc.
150 W. Berks Street
Philadelphia, PA 19122
Phone: (215) 739-9644
Fax: (215) 739-9640
