Steelcraft STX300 Installation Instructions

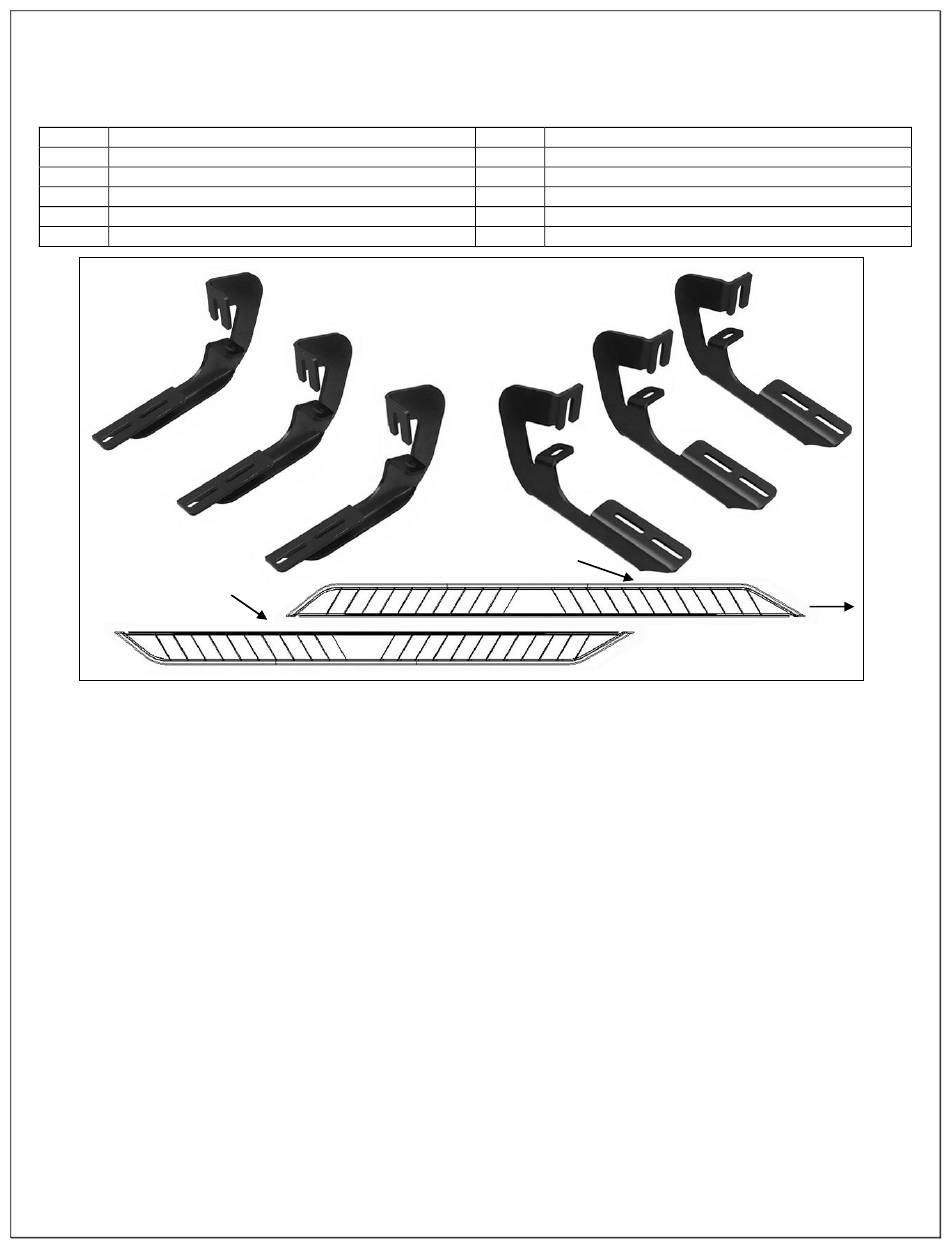

PARTS LIST:

Qty Description
6 Universal Mounting Brackets
12 8mm Deep Clip Nuts
12 8-1.25mm x 25mm Hex Bolts
12 8mm x 24mm OD x 2mm STD Flat Washers
Passenger/right
Running Board

PROCEDURE:

1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS
CAREFULLY BEFORE STARTING INSTALLATION.
2. Starting on the driver side of the vehicle, locate the (2) holes in the bottom of the body panel, (pinch
weld). Next locate the rectangular opening and (2) small holes in the inner body panel directly above
the holes in the pinch weld, (Figure 1). Installation will use only the forward holes in each mounting
location. NOTE: The holes in the inner panel may be covered with sealing tape or insulation, remove as
required.
3. Slide (1) 8mm Clip Nut into the rectangular opening with the nut towards the inside. Line up the
threaded nut on the clip with the round hole toward the front of the vehicle, (Figure 2). Repeat to install
an 8mm Clip Nut in forward hole in the pinch weld. NOTE: If necessary, hold a mounting Bracket up in
position to determine correct factory mounting holes to use.
4. Attach the Mounting Bracket to the (2) Clip Nuts with the included (2) 8mm Hex Bolts, (2) 8mm Lock
Washers and (2) 8mm Flat Washers, (Figure 3). Depending on model and year, the brake cable may
be run on the inside or outside of the Bracket. Do not tighten hardware at this time.
5. Next, move toward the center of the vehicle. Locate the (2) holes in the pinch weld similar to the front
location, (Figures 1 & 4). Repeat Steps 2—4 to install a Bracket in the center mounting location,
(Figure 8).
6. Continue along the cab to the rear mounting location. Locate the last (2) mounting holes in the pinch
weld towards the back of the cab, (Figures 1 & 5). Repeat Steps 2—4 for rear mounting Bracket
installation, (Figure 9).
7. Carefully unwrap and select the driver side Running Board. Locate the two channels in the bottom of
the Running Board. Slide (3) 6mm T-Bolts into each channel, (Figure 6).
Qty
12
12
12
12
12
(6) Universal (left or right)
Mounting Brackets
Driver/left Running Board
Page 1 of 4
STX300 RUNNING BOARD BRACKET KIT
04-14 FORD F-150 SUPER CAB
04-08 F150 CREW CAB
Description
8mm Lock Washers
6-1.0mm x 20mm T-Bolts
6mm x 22mm OD x 2mm Flat Washers
6mm Lock Washers
6mm Hex Nuts
Front
