CS Instruments DS 300 mobile version Instruction Manual

Multi-channel display and data logger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction manual
D
S
3
0
0
m
o
b
i
l
e
v
e
r
s
i
o
n
D
S
3
0
0
m
o
b
i
l
e
v
e
r
s
i
o
n
Multi-channel display and data logger
V4_03_2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS 300 mobile version and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CS Instruments DS 300 mobile version

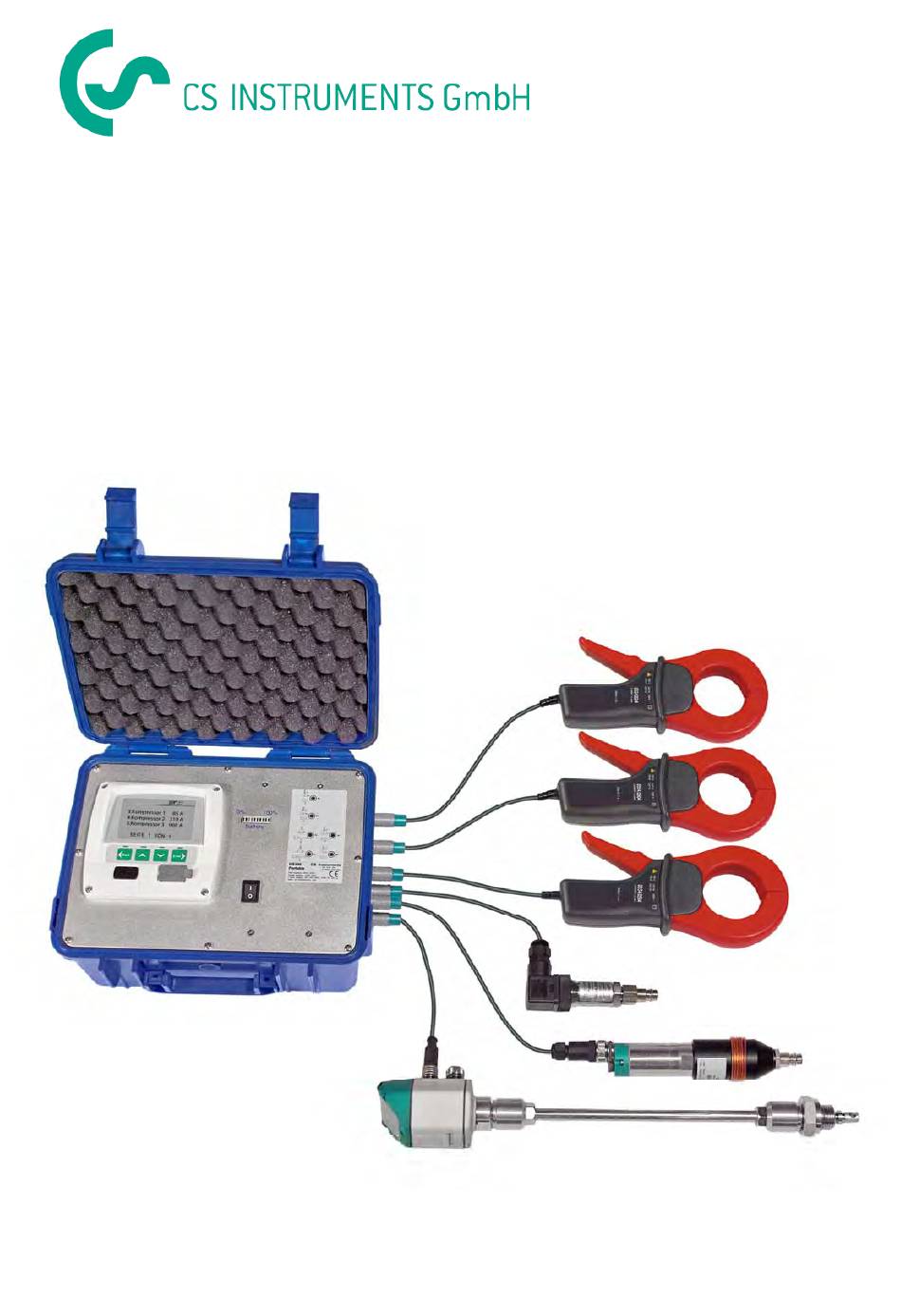

  • Page 1 Instruction manual Multi-channel display and data logger V4_03_2011...

  • Page 2: Table Of Contents

    Contact Introduction Dear CS customer, You have made the right decision by choosing a measuring instrument from CS Instruments GmbH. Thousands of customers buy our high standard products every year. There are a few good reasons for doing so: • The cost-performance ratio - reliable quality at a fair price.

  • Page 3: Instruments Description

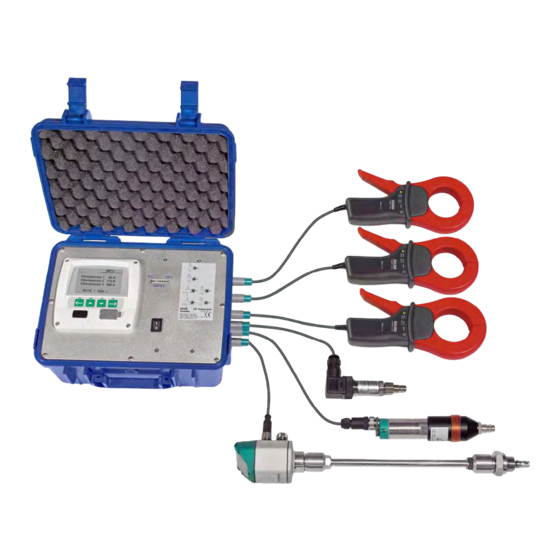

    Consumption measurement • Leakage calculation The all-rounder DS 300 mobile version in a robust case is the ideal multifunction measuring instrument for the mobile use. The internal rechargeable battery enables mains-independent measurements of up to 4 hours. Up to 6 parameters can be recorded at the same time (consumption, pressure dew point, current consumption, pressure, temperature …).

  • Page 4: Technical Data

    2. Technical data Case Dimensions: 265 x 220 x 150 mm Sensor inputs 2 channel version: 2 inputs for consumption and dew point sensors no analogue inputs 4 channel version: 2 inputs for consumption and dew point sensors, 2 additional inputs for analogue sensors 0/4…20 mA 6 channel version: 2 inputs for consumption and dew point sensors, 4 additional inputs for analogue...

  • Page 5: Key Features

    CS Instruments GmbH offers no gurantee for the suitability for any other purpose and is not liable for errors which may have slipped into this operation manual.

  • Page 6: Ds 300 With Va 400 Consumption Sensor

    6. DS 300 mobile version with VA 400 consumption sensor Please read carefully before starting the device! 1. Do not exceed pressure range > 50 bar 2. Observe flow direction of the sensor 3. Adapter sleeve must be tightened with a torque of 20-30 Nm 4.
  • Page 7 6.1 Technical data consumption sensor VA 400 ± 3 % m.v. Accuracy with ± 2 % m.v. measuring section via 5 point ISO precision calibration Units freely selectable m³/h, m³/min, l/min, l/s, ft/min, cfm, kg/h, kg/min, kg/s Inlet length 15 x inner pipe diameter Outlet 5 x inner pipe diameter Ball valve 1/2"...

  • Page 8: Ds 300 With Fa 410 Dewpoint Sensor

    7. DS 300 mobile version with FA 410 dew point sensor Please read carefully before starting the device! 1. Attention: Do not exceed pressure range of > 50 bar with standard version. (Up to 350 bar in case of special version).

  • Page 9: Sensor Connection

    8. Sensor connection Sensor connections (factory settings): 1 Consumption sensor resp. dew point sensor 2 Dew point sensor resp. consumption sensor 3 Analogue sensor 4 Analogue sensor 5 Analogue sensor 6 Analogue sensor 7 Power supply 100-240 VAC 9. Flexible current supply (100… 240 VAC / 50…60 Hz) In case of fully loaded rechargeable battery (green LED at the right hand side) (approx.

  • Page 10: Survey Operation Menu

    10. Survey operation menu (with "Enter" one menu level down and return with "Back") - 10 -...

  • Page 11: Operation

    These icons show the system status. For easier handling the position of each icon should be fixed. 1) USB connection icon: This icon shows that DS 300 mobile version is connected to a PC via USB 2) Logger module status icon...
  • Page 12 11.2 Operation of the main keys Basic concept for MENU mode key operation Enter Logger operation Sensor setting -20,0 °Ctd System status and setting enter MENU mode Page 1 of 8 Item 2 of 5 existing MENU mode Enter Back Back Enter Back...
  • Page 13 Typical display layout for option selection: The radio button for selecting the units (°C/°F) - Radio button style for de-selected item - Radio button style for selected item Procedure: 1) Use key in order to select the desired option 2) Use key to activate the selected option Item 1 of 2 For leaving this option:...
  • Page 14 Powered on device If DS 300 mobile version is powered on the display will show the following system information for approximately 5 seconds: The system information is helpful for any service inquiries in order to identify the specific model and version.
  • Page 15 The operation in detail By means of the "Enter" key the menu can be accessed. DS 300 mobile version has the following main menus: Logger operation Sensor settings System status and settings Page 1 of 2 Enter Back Logger operation DS 300 includes a data logger.

  • Page 16: Sensor Settings

    Deletes the internal logger 11.3 Sensor settings 11.3.1 Consumption and dew point sensors The consumpiton and dew point sensors of CS Instruments are automatically recognized at channel 1 or 2. 11.3.1.1 Setting of consumption sensor VA 400 (Attention: Please adjust inner diameter of the pipe!)
  • Page 17 11.3.2 CS Analogue sensors (pressure sensor, clamp-on ammeter, temperature sensor, …) DS 300 mobile version has 2 resp. 4 analogue input channels. The analogue input channels are not automatically recognized so the analogue sensor for the respective channel has to be selected.
  • Page 18 Maximum current supply 12 VDC / 25 mA! If the non-CS analogue sensors have a higher current consumption please use an own power supply! Connection cables: CS Instruments offers connection cables with open ends. Order no. 0553 0110, cable length: 5 m. Connection scheme: Attention: DS 300 mobile version is configured on our premises.

  • Page 19: System Status

    13. Scope of delivery DS 300 mobile version in a robust case, as per your order Power cable Shoulder strap Instruction manual...

  • Page 20: Order Information

    Connection cable for probes 5 m with ODU plug (for pressure sensors and 0553.0110 temperature probes) Extension cable 5 m for DS 300 mobile version with ODU plug 0553.0103 Software: CS Soft Professional, data evaluation in graphic and table form with USB cable...

  • Page 21: Notes

    Notes - 21 -...
  • Page 22 Notes - 22 -...

  • Page 23: Notes

    Notes - 23 -...

  • Page 24: Contact

    Contact • Advice • Sale • Service Sales office North Germany CS Instruments GmbH Am Oxer 28c D-24955 Harrislee Phone +49 (0) 461 – 700 2025 +49 (0) 461 – 700 2026 info@cs-instruments.com www.cs-instruments.com Sales office South Germany CS Instruments GmbH Zindelsteiner Straße 15...
