Hobo RX3000 RXW Manager Manual

HOBO® RX Wireless Sensor Network
HOBO RX3000 RXW Manager (RXMOD-RXW-xxx) Manual
HOBO RX3000
RXW Manager
Models:
• RXMOD-RXW-900 (US)
• RXMOD-RXW-868 (Europe)
• RXMOD-RXW-922
(Australia/NZ)
Items Included:
• Cable ties
• Screws

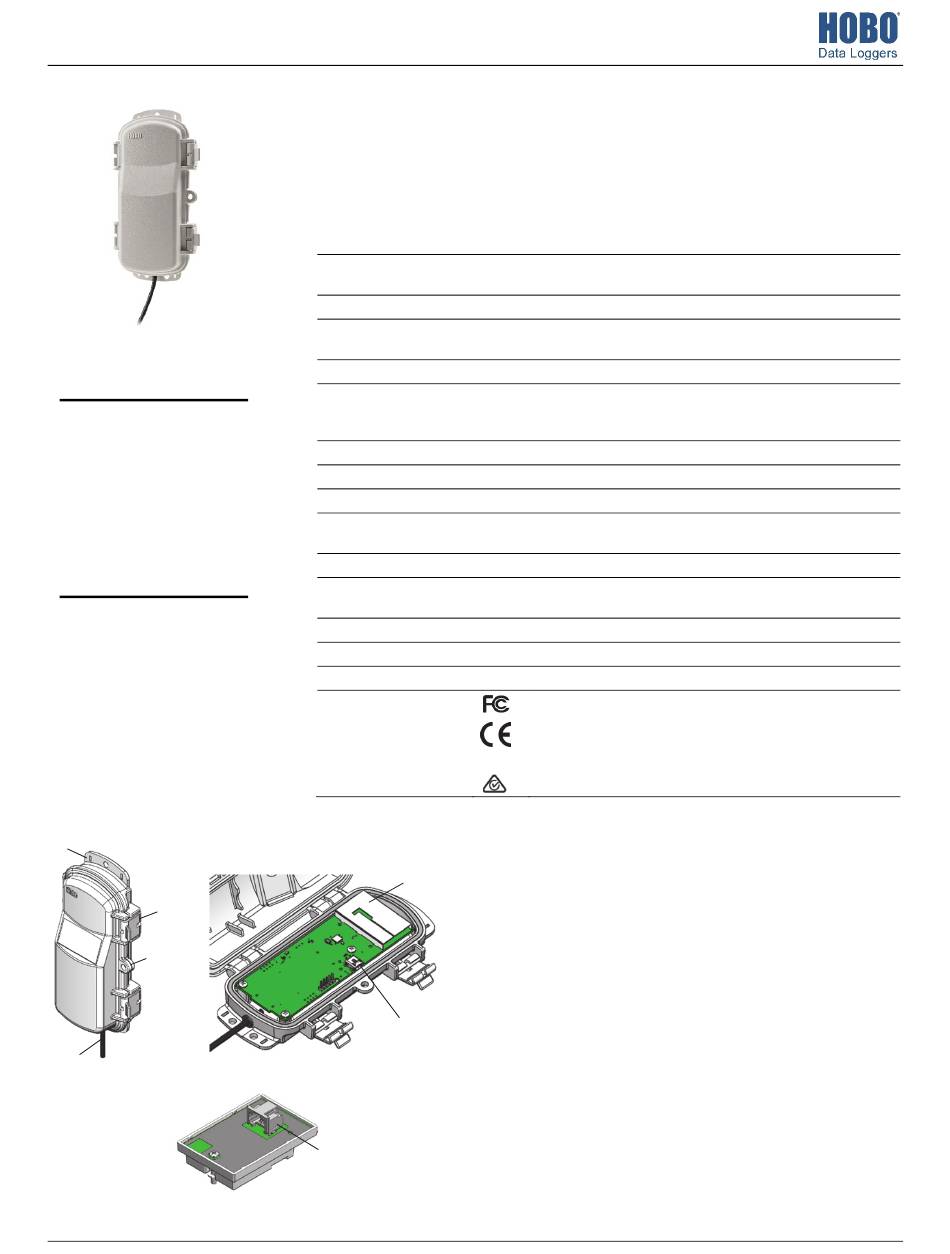

Components and Operation

Mounting
Tab
Latch
Eyelet
Cable
Manager Mote Closed
22248-A
The HOBO RX3000 RXW Manager is a module and mote designed to work with the HOBOnet
Wireless Sensor Network. When the RXW Manager module is installed in an RX3000 station, data
is transmitted wirelessly from sensor motes across the network to the RX3000 station and then
uploaded to HOBOlink® web-based software. You can use HOBOlink to monitor the network, view
graphs, set up alarms, download data, and more.

Specifications

Operating Temperature
Range
Radio Power
Transmission Range
Wireless Data Standard
Radio Operating
Frequencies
Modulation Employed
Data Rate
Duty Cycle
Maximum Number of
Motes
Power Source
Dimensions
Weight
Materials
Environmental Rating
Compliance Marks
Manager Mote Opened
Module Jack
Manager Module
-25° to 60°C (-13° to 140°F)
12.6 mW (+11 dBm) non-adjustable
Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high
Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high
IEEE 802.15.4
RXMOD-RXW-900: 904–924 MHz
RXMOD-RXW-868: 866.5 MHz
RXMOD-RXW-922: 916–924 MHz
OQPSK (Offset Quadrature Phase Shift Keying)
Up to 250 kbps, non-adjustable
<1%
50 motes per one RX Wireless Sensor Network
Powered by the RX3000 station
Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
Cable length: 2 m (6.56 ft)
Mote: 159 g (5.62 oz)
Mote: PCPBT, silicone rubber seal
Mote: IP67, NEMA 6
RXMOD-RXW-900: See last page
RXMOD-RXW-868: The CE Marking identifies this product as
complying with all relevant directives in the European Union
(EU).
RXMOD-RXW-922: See last page
The RXW Manager consists of a mote with a cable attached that
is plugged into a module, which is installed in the RX3000
Antenna
station. These are the components of the mote and module.
Mounting Tab: Use the tabs at the top and bottom of the mote
to mount it (see Deploying and Mounting).
Cable: Use this cable to connect the mote to the module.
Eyelet: Use this eyelet to attach a 3/16 inch padlock to the
mote for security.
USB Port
Latch: Use the two latches to open and close the mote door.
Antenna: This is the built-in antenna for the radio
communications across the RX Wireless Sensor Network.
USB Port: Use this port to connect to the mote to a computer
via USB cable if you need to update the firmware (see Updating
Mote Firmware).
Module Jack: Use this jack to connect the mote to the module
with the cable attached to the mote (see Installing the Module).
