Squibb-Taylor RSD-E1 Installation And Operation Manual

IMPORTANT:

KEEP THIS DOCUMENT WITH THE PRODUCT UNTIL IT REACHES THE END USER.
1. Contact with or inhalation of Anhydrous Ammonia (NH
2. Before installation or removal of any valve, the system must be purged of all product.
3. Personal Protective Equipment (PPE), safety gloves, goggles and clothing should be worn.
4. For proper handling and storage of NH
5. An abundant supply of fresh water should be available to provide immediate first aid treatment for exposure to NH
6. To ensure long term safe operation, the manufacturer recommends that under normal service conditions this product should be
inspected at least twice every year and be repaired or replaced as required. Transmitter battery should be checked/tested once
daily when in use.
WARNING: This product should be used with Anhydrous Ammonia (NH
Remote is for emergency use only. Not intended for operational shut-down.
WARNING:
Always reset the receiving unit after actuating system with handheld remote.

DESCRIPTION

The RSD-E1 is a handheld, wireless transmitter. Together with the RSD-E-BOX, they are designed to add remote shut-down
capabilities to a stationary anhydrous ammonia (NH
may remotely shut-down the electromagnet or pneumatically actuated valves using the RSD-E1 transmitter.
When the "Emergency Shut-down" button is pressed on the RSD-E1, it sends an encoded 32-bit ID number and commands to
the receiver. Only the receivers that have that transmitter's ID in its programmed list of transmitters will respond. One RSD-E-
BOX receiver can be easily programmed to respond to up to 15 different RSD-E1 transmitters.

ELECTRICAL SPECIFICATIONS

Modulation:
Carrier Frequency:
Antenna:
Transmit Range:
Battery:
Battery Life:
Low Battery Voltage:
Operating Humidity:
Operating Temperature Range:
Weight:
Enclosure:
NOTICE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
WARNING:
While this information is presented in good faith and believed to be accurate, Individuals using this literature must exercise their independent judgment in evaluating product selection and determining
product appropriateness for their particular purpose, system requirements and certifications. The manufacturer reserves the right to change product designs and specifications without notice.
Form IOM-RSD-E1 Rev 02
, refer to ANSI Standard K61.1, CGA 2.1 or Local Authority having jurisdiction.
3
) storage tank. In the event of an unintentional product release, the operator
3
FM
433.92 MHz
Reduced Height ¼ Wave Whip
Up to 120 meters (400 feet) over open ground
2 X AAA Alkaline or rechargeable NI-CD or NI-MH
> 10,000 Transmits
2.3 Volts Typical (1.15 V per cell)
0 to 100%
-25°C to +80°C (-13°F to +176°F)
160g (5.6oz)
Buna-N Rubber and Stainless Steel
2.25" X 3.72" X 0.80" (excluding antenna)
Any changes or modifications not expressly approved by the Parker Hannifin
Corporation could void the user's authority to operate this device.
Installation and Operation Manual
January 2016
) can cause SERIOUS INJURY OR DEATH.
3
RSD-E1
Form IOM-RSD-E1 - Rev 02
.
3
) only.
3

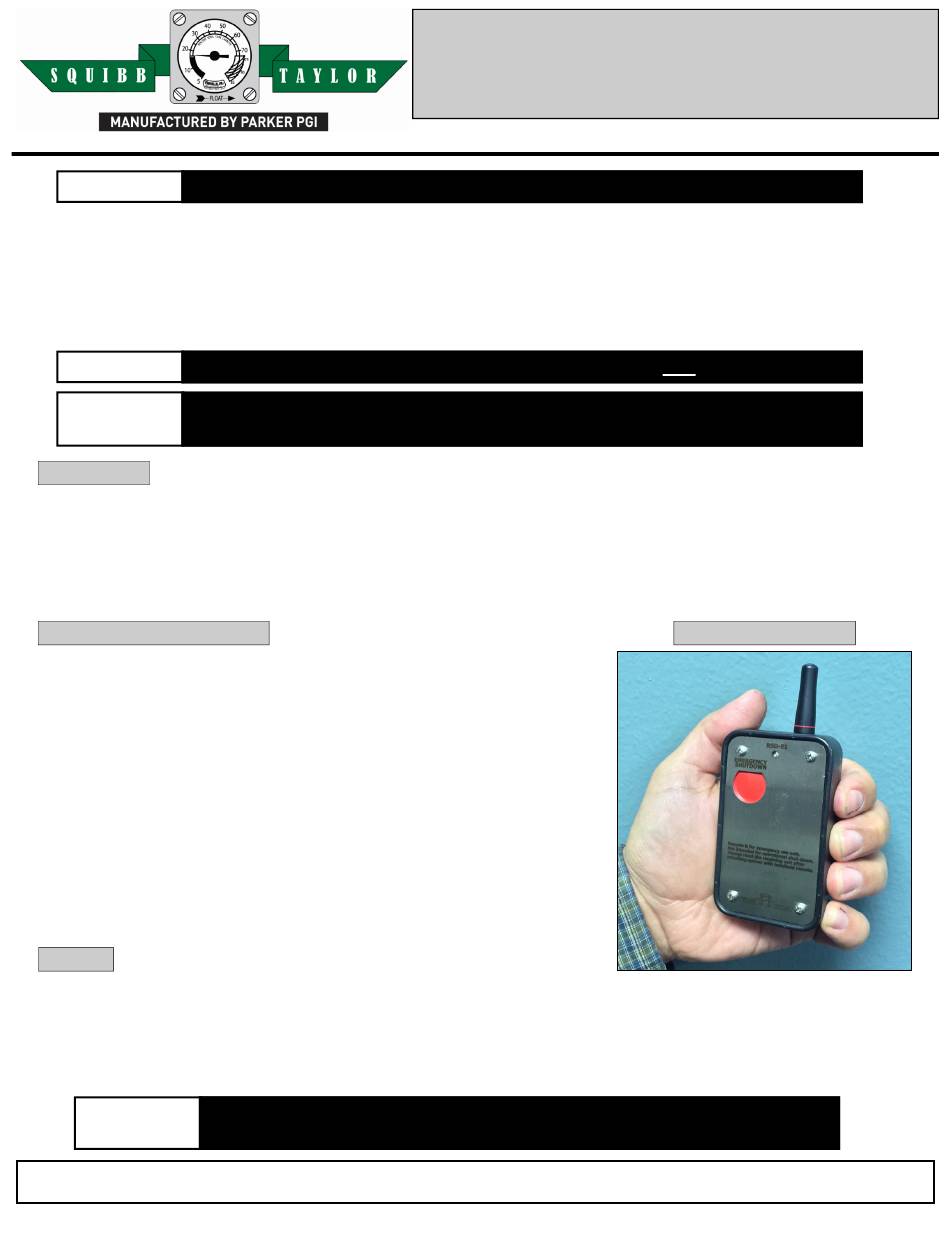

RSD-E1 TRANSMITTER
GEARS 48184 1 of 2
