User Manual

Mini HDMI
Wireless Extender
Model No. HDEX0018M1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDEX0018M1 and is the answer not in the manual?

Questions and answers

Related Manuals for Ask HDEX0018M1

Summary of Contents for Ask HDEX0018M1

  • Page 1: User Manual

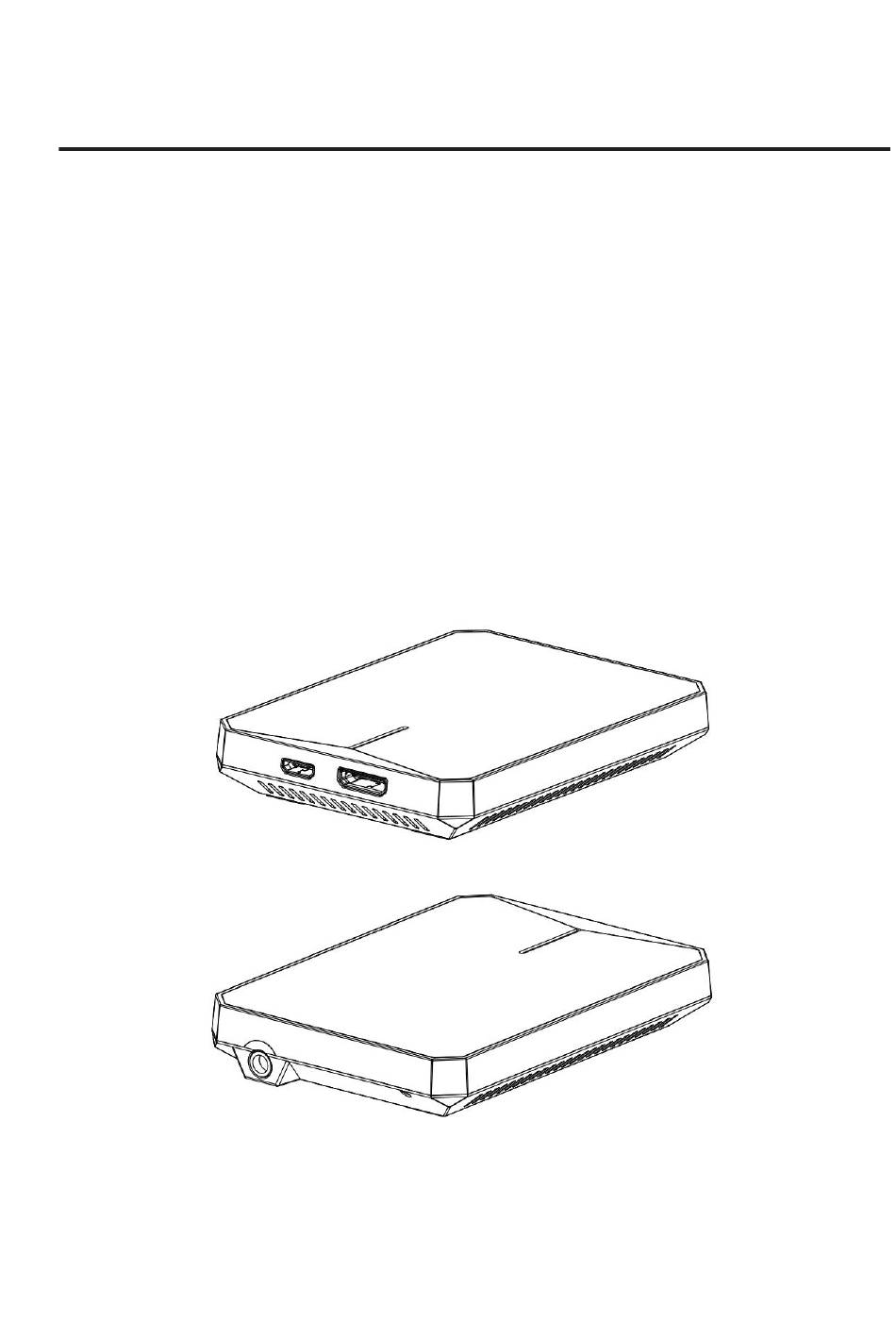

    User Manual Mini HDMI Wireless Extender Model No. HDEX0018M1...
  • Page 2 FEATURES OF THE INTERFACE: Picture 1.0 Transmitter (TX) IR out port Power status light Wireless status light USB 5V power jack HDMI Signal light Built-in reset key HDMI input port Picture 1.1 Receiver (RX) IR in port Power status light Wireless status light USB 5V power jack HDMI Signal light...

  • Page 3: Connection And Operation

    Connection and Operation: 1. CONNECTION DIAGRAM This side faces This side faces Source remote control HDTV Monitor/Projector DVD/PS3/STB/PC 1.1 Connect the HDMI input port of the HDMI wireless TX to the HDMI output port of the signal source by HDMI cable. 1.2 Connect the HDMI output port of the HDMI wireless RX to the HDMI input port of the TV/Monitor by HDMI cable.
  • Page 4 2. Restore factory settings and switch wireless band: The reset key is hidden in the RESET hole. It is able to work under power on status. To use one long and narrow insulated stick (like toothpick) to insert the hole end to press the button as below: 2.1 Restore Factory Setting: To press the button for lasting three seconds, then the HDMI Status Led Light will flash for three times and restart, it shows that Restore Factory Set is successful.

  • Page 5: Other Notes

    3.5 Enter the default login password: admin click “Login” open the Settings Interface. If you want to modify the login password, please click on the " Modify ", after modified click "save" to save and exit. Restore factory settings when click "reset". 3.6 If you have an error in setting or forgot the password, you can restore factory setting.

  • Page 6: Specifications

    SPECIFICATIONS: Model No. HDEX0018M1 Model name Mini HDMI Wireless Extender HDMI resolution 480P/720P/1080P@50Hz/60Hz HDMI Audio format LPCM2.0/48KHz/16Bit HDMI Max bandwidth 225MHz HDMI Max baud rate 6.75Gbps Output cable length 1080P/AWG 26 ≤12m Antenna type Built-in 3dBi gain antenna Wireless standard IEEE 802.11a/n/ac...
