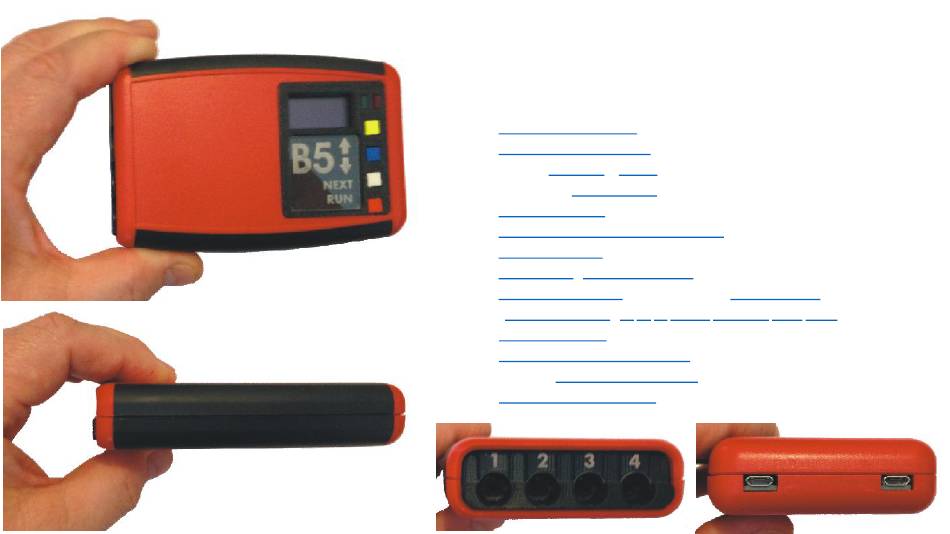

User Manual for the Micro-Pulse

Model B5

TABLE of CONTENTS:

1 -

Terminology in

2 -

Terms and Conditions of Use

3 - POWER:

USB cable

4 - Placement of

5 -

Programming Guide

6 -

What Level of Complexity is Right for You?

7 -

General Guidelines

8 -

User

Interface:

9 -

Adjusting the Intensity

10 -

Selecting a

11-

Adjusting a

Protocol: B5 A9 P2 Omni Schumann HOLD WAVE

12-

Table of Available Frequencies (pps)

13- OOPS!?!?

Resetting the B5 to default

14-

Advanced System Diagnostics

ICES-PEMF: Hz versus pps

battery

Coils and Arrays

for Programming the B5

Functions of Buttons

(power level) at the

START-UP Screen

Protocol:

B5 A9 P2 Omni-1 Schumann HOLD WAVE

(erase/reset all changes

Rev: 2018-02-21

Need help?

Do you have a question about the B5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Micro-Pulse B5

Page 1 10 - Selecting a Protocol: B5 A9 P2 Omni-1 Schumann HOLD WAVE Adjusting a Protocol: B5 A9 P2 Omni Schumann HOLD WAVE Table of Available Frequencies (pps) 13- OOPS!?!? Resetting the B5 to default (erase/reset all changes Advanced System Diagnostics...
Page 2 Institutional Review Board (IRB), or a recognized animal use and care authority. 9 - You will not give, loan, or otherwise assign Micro-Pulse LLC products to any person who intends to use any Micro-Pulse LLC product in a manner contrary to these terms or contrary to law.
Page 3 PEMF. For you as a user of PEMF technology it is fine to use the terms pps and Hz interchangeably. But as a scientist, I believe I have the responsibility of adhering to more precise technical terminology. The B5 is a scientific instrument, so I feel obligated to describe its performance with an appropriate level of scientific precision.
Page 4 • 3, 6, 10 feet (any length is OK) • USB data lines are not used • Use either micro-B port on the B5 • Do not use both ports, use only one at a time (second one is a spare) USB micro-B COPYRIGHT ©...
Page 5 • 3, 6, 10 feet (longer ~ stiffer, be careful not to damage the USB micro-B ports) • USB data lines are not used • Use either micro-B port on the B5 • Do not use both ports, use only one at a time (second one is a spare)
Page 6 Power Input: 5 VDC @ 2 Amps (or higher rating) • A laptop USB port may not have adequate power rating (< 2 Amps). • Most plug-in car or wall outlet USB power/charger ports work very well. Be sure the rating is at least 2 Amps (10 Watts) per port...
Page 7 Power Input: Battery Packs Inadequate power: < 10,000 mAh • AmazonBasics Power Bank ( < 10,000 mAh) • HAME 4000mAh • Mocreo 2500mAh...
Page 8 Power Input: Battery Packs (some work well, others do not) Use Battery Packs with -- > 2.0 Amp rating -- > 10,000 mAh capacity • Anker PowerCore 10000 • KMASHI 10000mAh with 3.1A Output • Unifun 10400mAh • Polanfo M50000- 12000mAh...
Page 9 • Most battery power packs will shut off automatically if they detect very little or no power drain. This can be a problem, because the B5 is ultra efficient, so the battery power pack may decide that it is not connected to anything that is using...
Page 10 POWER/RESET Button • Or, if you draw too much power, such as at POWER UP for the B5 when it draws the most power, about 2 Amps, the battery pack may automatically shut down if it detects an over-current error. This protects the battery from self destructing.
Page 11 USB wall power converters • Any length USB – micro B power cable can be used • Some cables are better than others: some have unreliable connections while others seem to provide a good, reliable connection. COPYRIGHT © 2017 Micro-Pulse LLC...
Page 12 Power • To power up the B5, first plug in to a USB power port, or in to an external battery pack. • Then, switch the power ON • The Power Switch is recessed into the ON - OFF case to prevent accidental switching •...
Page 13 • The B5 can only be adjusted within the first Power ON 15 seconds of power-up. After that, it initiates the AUTO-RUN sequence. • Once the B5 is running, you can not adjust the settings. This is to prevent accidental changes to settings if you are wearing the device.
Page 15 Connecting Coils and Arrays ICES COIL OUTPUTS: The B5 has four identical synchronized independently powered and controlled I.C.E.S. output ports to drive 4 sets of original I.C.E.S. coils, or 4 new 2x2 coil arrays, or any combination Plug each coil in firmly, all the way Use any or all four ports COPYRIGHT ©...
Page 16 Connecting Coils and Arrays • Any Micro-Pulse coils or coil arrays can be used • Coils and arrays can be used in any combination and in any port • We advise against using audio cable splitters COPYRIGHT © 2017 Micro-Pulse LLC...
Page 17 How to Place Coils on the Body For the most recent advice on coil placement, please visit YouTube and search the following terms: “ICES PEMF tutorial” (optionally refine the search with the term “coil”) Optionally, you can jump straight to the following links: https://www.youtube.com/watch?v=FGMyCZVQM5E https://www.youtube.com/watch?v=Ew1H4nglT0A&t=8s https://www.youtube.com/watch?v=_WtdIF0OmJ0&t=275s...
Page 18 – 5 – 100 – 100 – 5 – 100 – 100 – rest Omni1 – selected subharmonics Schumann – first five harmonics Hold – select one frequency Wave – setup a frequency wave Matrix – special wellness network COPYRIGHT © 2017 Micro-Pulse LLC...
Page 19 • Think of it as a pyramid… • You start at the bottom. Everyone starts here. It is the least complex. Here, you just plug in coils and USB power, turn the B5 ON, and use NO ADJUSTMENTS it just as it is out-of-the-box, with no adjustments.
Page 20 Start simple, grow toward more complexity • Think of it as a pyramid… • Then you learn to adjust the intensity. There ADJUST INTENSITY are 16 intensity levels: 0 through 15 COPYRIGHT © 2017 Micro-Pulse LLC...
Page 21 Start simple, grow toward more complexity • Think of it as a pyramid… • When you are comfortable adjusting the SELECT intensity, then you can learn how to select PROTOCOL from one of the 8 available ICES protocols COPYRIGHT © 2017 Micro-Pulse LLC...
Page 22 • Think of it as a pyramid… • By now you’re getting into advanced territory. Most people will probably never ADJUST TIMING need to do this, but the B5 will allow you to adjust the timing in each protocol. COPYRIGHT © 2017 Micro-Pulse LLC...
Page 23 • Advanced users and researchers will also be able to adjust the pulses per second (pps) and to use timed waves of frequency change to create more complex waveforms. This can only be done in the advanced protocols: HOLD and WAVE. COPYRIGHT © 2017 Micro-Pulse LLC...
Page 24 • At the very top, advanced researchers, hard- core self hackers, and anyone who genuinely wishes to keep ahead of the science can work with me to develop new ICES protocols. This requires scientific and engineering work to make firmware upgrades. COPYRIGHT © 2017 Micro-Pulse LLC...
Page 25 Start simple, grow toward more complexity The B5 is designed for everyone, at every level, to grow with each individual who needs the power of PEMF. With the B5, you get easy access to the best technology with the flip of a switch, or you can tailor it to your needs from...
Page 26 General Guidelines: WHAT TO EXPECT Please do not get discouraged or frustrated by the sophistication of the B5. If it sounds complicated, that is because it is a complex device. When these technical details are discussed with most other PEMF manufacturers, their eyes glaze over.
Page 27: General Guidelines
General Guidelines The B5 has 8 built-in ICES protocols. More may be added in the future. To get more protocols in the future when they are released, you will need to send your B5 back for reprogramming to check your hardware and update the firmware.
Page 28 B5 is easy and very fast. If you don’t think about it beforehand, and you want to just decide as you go, you will find the B5 is very frustrating to use. You only have 5 seconds on each screen. This is plenty of time if you know what you want, but...
Page 29 If the timer runs out or if you make a mistake you just need to power the B5 OFF then ON, and you will start again right where you left off. At first this seems annoying, but you will get...
Page 30 General Guidelines: The Structure of Protocols Each of the built-in protocols has one or more modes. Each mode is a pattern of pulses that runs for a certain period of time. Each mode had a default time setting programmed in minutes. For example, the A9 protocol has three modes: Mode_1 = 5 pulses per second (pps), alternating polarity Mode_2 = a burst of 5 pulses at 100 pps, one burst per second,...
Page 31 At the end of the last mode, the B5 starts again with the first mode. The B5 will continue to cycle through each mode: 1, 2, 3, 1, 2, 3, 1, 2, ……. Each mode runs for a defined time “t” in minutes.
Page 32 PEMF systems as safe and effective, to be used by prescription. Micro-Pulse ICES products are NOT FDA approved for any use. The B5 is a scientific instrument designed to allow you to experiment and explore these effects for...
Page 33 You can adjust the time of each mode to any number of minutes, ranging from 0 minutes to 255 minutes. When you set a mode to 0 minutes, the B5 will just skip over that mode.
Page 34 The second mode (100+ pps) will run for 10 minutes (this is the default setting, you did not change it) The B5 will skip right past the third mode since you set it to 0 minutes The B5 will remember your changes, so the next time you use the A9 protocol, it will remember and use these new settings.
Page 35 Usually you will start in the low power range until you get accustomed to higher levels of power. When you first use the B5, the HOLD protocol has a single mode that looks like this by default: HOLD at 10.0 pps...
Page 36 Then you ADJUST the HOLD protocol to 4.0 seconds with the yellow and blue (up and down) keys on the ADJUST PROTOCOL screen until it says “HOLD at 4.00 pps”. Then you just press the RUN button (red key) and the B5 will begin pulsing at 4.00 pps. The result is as follows: The B5 will run continuously at 4.00 pps until you shut it OFF...
Page 37 Then you just press the RUN button (red key) and the B5 will begin pulsing at the lowest frequency. The result is as follows: The B5 will ramp up from 0.6 pps to 3.6 pps in ten equal frequency steps over a period of 7 minutes, then back down over 7 minutes, …...
Page 40 User Interface OLED Display yellow button (UP) blue button (DOWN) The B5 name plate reminds you of the white button (NEXT) button functions: UP DOWN NEXT RUN red button (RUN) COPYRIGHT © 2017 Micro-Pulse LLC COPYRIGHT © 2017 Micro-Pulse LLC...
Page 41 • When you adjust the intensity (power) level, go to a protocol screen, or adjust a mode time, the B5 already sets the new value. You do not have to press a button to set it. If you see it, it is already set. So, if you go to the screen SELECT PROTOCOL –...
Page 43 User Interface: Starting at Power-Up • The B5 takes about 4 seconds to power up. • First the green LED will switch ON for 1 second. This simply allows you to verify that the LEDs are working, and power is ON.
Page 44 ICES model B5a • RED = <RUN> which means RUN NOW Rev: B520170324a • If you do nothing, the B5 will continue on automatically to the next screen © 2017 Micro-Pulse in 5 seconds, then on to AUTO RUN.
Page 45: Power Level
• WHITE = <NEXT> = go to next screen (Select Protocol) • RED = <RUN> = RUN NOW POWER LEVEL = 9 • If you do nothing, the B5 will continue - - - - - - ] on automatically to the next screen in 5 seconds.
Page 46 • Screen # 2 at POWER UP is the only time you can adjust the power level. • To reset the power level, you must turn the B5 OFF, then ON again and wait for this screen which will display about 8 seconds after POWER UP.
Page 47 • Press the WHITE button <NEXT> to go to next screen which allows you to SELECT the protocol that will run. • Press the RED button <RUN> to jump straight to RUN NOW. The B5 will immediately begin running the selected protocol at the power level you set.
Page 48: Select A Protocol
– 5 – 100 – 100 – 5 – 100 – 100 – rest Omni1 – selected special frequencies Schumann – first five harmonics Hold – select one frequency Wave – setup a frequency wave Matrix – special wellness network Copyright © 2017 Micro-Pulse LLC...
Page 49 It will remember this protocol setting. # $ <NEXT> <RUN> • If you do nothing, the B5 will continue automatically to the next screen in 5 seconds. • Then it will automatically RUN in 5 seconds.
Page 50 10 2 2 1 1 1 1 1 min • Omni 1 has 8 different modes, as shown. # $ <NEXT> <RUN> • You can adjust any of the times for any mode in any protocol (except Matrix). COPYRIGHT © 2017 Micro-Pulse LLC...
Page 51 • Then, just press the RED (RUN) button. Or do nothing and the B5 will AUTO RUN in a few seconds. • When you press the RED button, the B5 will set the protocol to the one you have scrolled to, it will remember it, and it will begin running it automatically.
Page 52 SELECT B5 PROTOCOL • This is the default screen for the B5 protocol: SELECT PROTOCOL • When you scroll down to this screen, the - - B5 - - system will remember that you want to use 10 2 2 5 1 1 mn this protocol.
Page 53 • You can adjust any of these mode times The system will remember this protocol as its current setting, and will start here from 0 to 255 minutes the next time you power up the system. COPYRIGHT © 2017 Micro-Pulse LLC...
Page 54 • You can adjust any of these mode times from 0 The system will remember this protocol to 255 minutes as its current setting, and will start here the next time you power up the system. COPYRIGHT © 2017 Micro-Pulse LLC...
Page 55 • You can adjust any of these mode times from 0 to 255 minutes. The system will remember this protocol as its current setting, and will start here the next time you power up the system. COPYRIGHT © 2017 Micro-Pulse LLC...
Page 56 • You can adjust any of these mode times from 0 to 255 minutes. The system will remember this protocol as its current setting, and will start here the next time you power up the system. COPYRIGHT © 2017 Micro-Pulse LLC...
Page 57 RED button to start the ICES • You select one frequency from the list stimulation immediately without • The B5 runs that frequency continuously adjusting the mode times. • The default is 10.0 pps, but you can set any frequency you want from the list at the end of this document.
Page 58 The system will remember this protocol • When you adjust the frequencies or the ramp time, it is automatically as its current setting, and will start here remembered. the next time you power up the system. COPYRIGHT © 2017 Micro-Pulse LLC...
Page 59 The system will remember this protocol • If you want to adjust the Matrix protocol, use the as its current setting, and will start here Omni-1 protocol. the next time you power up the system. COPYRIGHT © 2017 Micro-Pulse LLC...
Page 60 – 5 – 100 – 100 – 5 – 100 – 100 – rest Omni1 – selected special frequencies Schumann – first five harmonics Hold – select one frequency Wave – setup a frequency wave Matrix – special wellness network Copyright © 2017 Micro-Pulse LLC...
Page 62 -- A9 -- ADJUST adjust the time of each mode, in minutes. • If you want to set different pulse frequencies t1: 5pps – 10 min you must select the HOLD or WAVE protocol. # $ <NEXT> <RUN> COPYRIGHT © 2017 Micro-Pulse LLC...
Page 63 • When ADJUSTING a Protocol, you will see the screen below, right, or one like it with a different protocol (B5, A9, P2, Omni1, Schumann, HOLD, WAVE, or Matrix) • All protocols can be adjusted except Matrix, which is fixed to prevent any changes.
Page 64 • To adjust the next mode time, press the WHITE (NEXT) button. • If you screw something up, just power OFF, then ON and start again. • The B5 will remember all of the changes you made, so it will not take to long. -- A9 -- ADJUST...
Page 65 • To adjust the next mode time, press the WHITE (NEXT) button. • If you screw something up, just power OFF, then ON and start again. • The B5 will remember all of the changes you made, so it will not take to long. -- A9 -- ADJUST...
Page 66 • If you screw something up, just power OFF, then ON and start again. -- A9 -- ADJUST -- A9 -- ADJUST Press the BLUE (DOWN) t2: 100pps – 0 min t2: 100pps – 10 min Button 10 times # $ <NEXT> <RUN> # $ <NEXT> <RUN> → COPYRIGHT © 2017 Micro-Pulse LLC...
Page 67 Adjust a Protocol • If you pressed the RED (RUN) button, all of your adjustments will be remembered, and the B5 will begin to RUN the adjusted A9 protocol immediately. • The screen will change to the RUNNING SCREEN, as shown below on the right.
Page 68 Adjust a Protocol • On the RUNNING SCREEN, the B5 tells you a lot of information: • The top line tells you the protocol, in this case A9. • The second line tells you the intensity (power level) as both a bar and a number •...
Page 69 Adjust a Protocol • If you screw something up, just power OFF, then ON and start again. • Once the B5 has started RUNNING you can not change the settings unless you POWER OFF and RESTART. • The buttons have different functions when the B5 is RUNNING. Those are discussed in the next section.
Page 70 LOWEST = 1.00 pps list of frequencies at the end of this document. # $ <NEXT> <RUN> • You set the time to ramp up/down in minutes (1-255) • Once you set the parameters, press RED to run. COPYRIGHT © 2017 Micro-Pulse LLC...
Page 71 • Each mode has a time in minutes, tx, Hold-1 – select one frequency where “x” is the number of the mode Wave-1 – setup a frequency wave in a protocol (mode # 1, 2, 3, 4, …) Matrix – special wellness network COPYRIGHT © 2017 Micro-Pulse LLC...
Page 72: Reset To Default
B5, join the club! I have done this hundreds of times. Here is how you fix it: ***Reset to Default*** This resets the B5 to the settings originally programmed into it. Bad news: it forgets all your changes. Good news: it forgets all your changes.
Page 73 I suggest you just start again by powering OFF then ON. The B5 will remember the last change you made, so just work your way back to that screen, then you can adjust it and move on.
Page 74 RESET to DEAFULT SELECT PROTOCOL - - B5 - - • Power up the B5 and just wait, or press the WHITE (NEXT) button twice to get to any SELECT PROTOCOL 10 2 2 5 1 1 min screen, as shown above: # $ <NEXT>...
Page 75: Advanced System Diagnostics
They contain a lot of electronic noise that is unavoidable. You might need to look at these numbers if you require over- the-phone diagnostic help with your B5, before sending it in. Copyright © 2017 Micro-Pulse LLC...
Page 76 ADVANCED SYSTEM DIGNOSTICS • Once the B5 is in RUN mode, the buttons can no longer be used to change the protocol settings. • This is to assure that settings do not inadvertently change while the system is operating. • While operating, the green LED will flash or toggle ON/OFF for every pulse.
Page 77 • The voltages to not include the decimal point, so NNN = NN.N volts, and MMM = MM.M volts • Temperature is in degrees Fahrenheit, also accurate only to +/- 4 F COPYRIGHT © 2017 Micro-Pulse LLC...
Page 78 Channel 4 over temp test chip that comes with every Micro-Pulse system. • But this screen may be helpful to you as a quick check that the B5 system thinks everything is OK. • Keep in mind, these status indicators are based upon calculations of the coil voltages during operation.
Page 79 • The second line shows you the firmware revision and release date (24 March 2017). • The third line is a copyright statement. • The fourth line tells you how many times the B5 has PRESS been powered ON since updating the firmware. This is similar to the odometer on a car.
Page 80 (and frequencies for HOLD the HOLD and WAVE protocols). • The fourth line reminds you that you need to shut the power OFF in order to reset or adjust the B5 settings. COPYRIGHT © 2017 Micro-Pulse LLC...
Page 81 You may see a warning screen. You should turn the power OFF. • The system may automatically adjust your intensity (power level) down to a safe level, usually level 9. COPYRIGHT © 2017 Micro-Pulse LLC...
Page 82 Properly designed, PEMF works at very low power. • If the B5 tells you it is in the danger zone, then it is too much. Tone it down a bit by reducing the frequency or the power level or both.
Page 83 80, 85, 90, 95, 100, 110, 120, 130, 140, 150, 160, 170, 180, 190, 200, 210, 220, 230, 240, 250, 260, 270, 280, 290, 300 (all are pulses per second) Return to ToC Return to HOLD Return to WAVE COPYRIGHT © 2017 Micro-Pulse LLC...
Page 84 • 3- Conduct and support only good-quality science – in scientific meetings and other forums of scientific discussion, I will try to raise the bar by encouraging precision in the discussion. Return to ToC Return to Terminology COPYRIGHT © 2017 Micro-Pulse LLC...
Page 85 = ( f ) / 2 beat system earth thus generating an amplitude modulation of much lower frequency. https://en.wikipedia.org/wiki/Beat_(acoustics) Return to ToC Return to Schumann Protocol COPYRIGHT © 2017 Micro-Pulse LLC...
