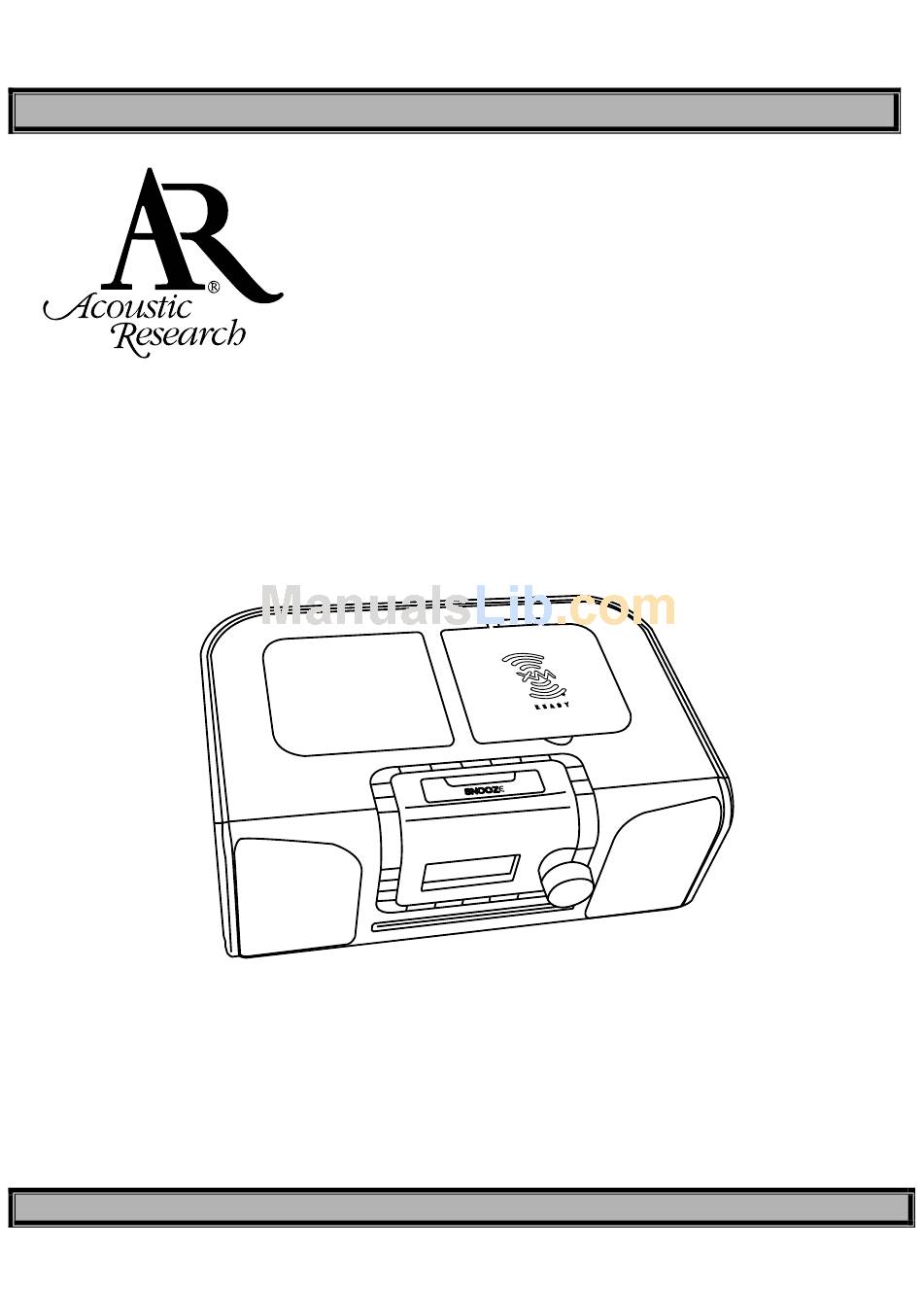

- Page 1 MODEL XMC90 OWNER’S MANUAL AM/FM RADIO WITH XM RADIO, iPod AND CD PLAYER CAPABILITY Model XMC90 Owner’s Manual VERSION V 0.0 Page 1 of 20...
-
Page 2: Function Of Controls And Indicators
MODEL XMC90 1.0 Function of Controls and Indicators Power On/Off Button (Standby) DISP Button (Preset) DIRECT Button (Direct/Preset A,B,C) MENU Button XM: Category, AM/FM: Search, CD: Stop ( XM: Ch Down, AM/FM: Ch Down, CD: Previous Track CD Play/Pause (... -
Page 3: Unit Description
MODEL XMC90 2.0 Unit Description 2.1 Power On/Off Button ( When this button is pressed, power is applied to the radio circuits from the standby mode, and the unit enters into the play mode (XM/FM/AM/AUX/iPod). When pressed again during any play mode, power is removed from the radio circuits and the unit reverts to the standby mode. - Page 4 MODEL XMC90 2.3.1 FM/AM Radio Ranges In DIRECT mode, the FM radio band ranges from 88.1 to 107.9MHz, while the AM band ranges from 530 to 1710kHz. 2.3.2 Changing FM/AM Radio Frequencies FM and AM radio frequencies can be changed by using the CH Up/Down buttons; each button press changes the frequency in 100kHz steps (FM).
- Page 5 MODEL XMC90 2.4 MENU Button When MENU is pressed, a list of menu items appears on the display. Select the desired item using the Channel Up and Channel Down ( CH adjustment of the selected parameter. Menu Item: 1-SOFTWARE VERSION...
- Page 6 MODEL XMC90 2.4.3.2 Display Setting: Enter this item to switch the LCD screen image from positive to negative. 2.4.4 AUDIO SETTING: When selected, this item enables adjustment of the BASS and TREBLE parameters, each within a range of -5 to +5, and also enables activation of SURROUND sound (ON/OFF).
- Page 7 MODEL XMC90 2.4.6 CLOCK SETTING: When selected, this item sets the current time in either the 12 or 24 hour system. During any play mode, press the menu button; then press CH+/- to highlight this item Select “STOCK TICKER’, then select ‘ADD Stock”. Use the ch+/- to select the first letter in the stock symbol.
- Page 8 MODEL XMC90 2.8 Volume Control and Select Button 2.8.1 Volume Control This integral scroll wheel/volume control and select button is also used to adjust the speaker volume (when not scrolling through menu items for selection or adjustment) in the XM/FM/AM/AUX/iPod modes within the range of 0~30.
-
Page 9: Ipod Docking Station
3.0 iPod Docking Station This station provides docking accommodations for an external iPod. When properly installed, iPod operation can be controlled using the XMC90 controls. VERSION V 0.0 OWNER’S MANUAL Press select to enter and confirm selection,... - Page 10 Choose the compatible adapter/holder for your iPod model and install it in the bay. Note: The XMC90 is supplied with an iPod adapter for installation in the iPod bay. Most iPods come with their own (original) adapters which can also be used if necessary.
- Page 11 4.0 XM Docking Station This station provides docking accommodations for an external mini XM receiver. (Refer to previous figure.) Note: The XM mini receiver and XM antenna are not included with the XMC90.( P/N:CNP2000) Using the XM Docking Station 1. Swing up the protective cover door to access the iPod/XM receiver system connector bay.
- Page 12 MODEL XMC90 Set Preset First set the desired channel number. Press DIRECT to access the desired memory bank ; press and hold the desired 1-10 number using the number buttons 5.0 CD Functions When playing discs, use the Mode control to select the CD functions.
-
Page 13: Connector Functions
MODEL XMC90 Other CD Functions When playing audio CDs, if the CD function is selected with the MODE button button, and no CD is loaded, the following message appears on the display: If a CD is loaded, and the CD mode is selected, the initial display conveys the number of folders on the disc and the total number of tracks. - Page 14 MODEL XMC90 Beeper Speaker This speaker provides beeper tone alarm audio output. DC IN Jack This jack connects to the 15 V DC output of the AC/DC adapter supplied with the radio. AUX IN Jack This RCA (red/white) stereo type jack accepts an external audio input from an optional DVD player, video game console, etc.
-
Page 15: Remote Control
MODEL XMC90 OWNER’S MANUAL Remote Control The remote control provides remote commands for both the radio and for an iPod. VERSION V 0.0 Page 15 of 20... - Page 16 MODEL XMC90 1. POWER Button: Places unit in standby or power on condition. 2. SLEEP Button: Enters sleep setting. 3. ALARM Button: Sets alarm time. 4. MUTE Button: Sets audio mute on-off. 5. MODE Button: Switches between play modes (XM/FM/AM/AUX/iPod).
- Page 17 MODEL XMC90 14. CH / Buttons: Used to select radio station frequency in radio mode, and also highlights menu mode adjustment. Also used to control selection of iPod menu items. 15. SHUFFLE Button: Press this button to play iPod songs in a completely random manner.
- Page 18 MODEL XMC90 9.0 Initial Use* and Battery Replacement *When purchased the remote control has a battery installed with a plastic insert to prevent battery discharge. Remove the plastic insert before attempting to use the remote. 1. Remove the battery holder. Refer to the drawing.
- Page 19 MODEL XMC90 OWNER’S MANUAL NOTES VERSION V 0.0 Page 19 of 20...
- Page 20 MODEL XMC90 OWNER’S MANUAL © 2008 Audiovox Electronics Corporation, 150 Marcus Blvd., Hauppauge, NY 11788 128-8283 VERSION V 0.0 Page 20 of 20...
