Summary of Contents for Teleste CFO100

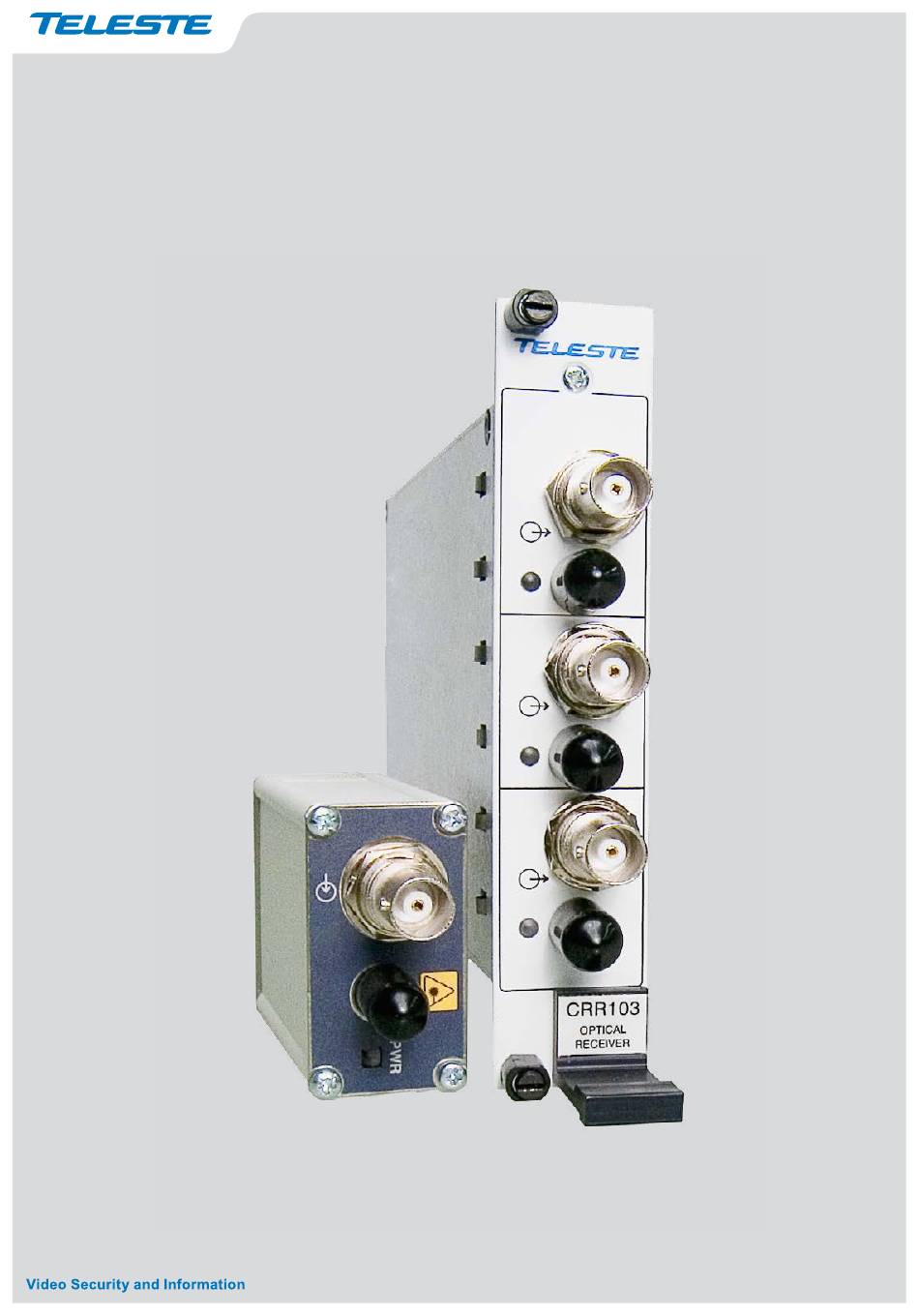

- Page 1 User manual Single and triple channel video only link CFO First Mile series consist of fibre optic modems which provide a high quality and lossless video transmission for variety of CCTV applications. CFO100 user manual, 59300292, rev003...
-
Page 2: Table Of Contents
Contents CFO100 - Single and triple channel video only link ....................1 General ................................1 Features ................................1 CPT101 mini sized stand-alone video transmitter....................2 General ................................2 Video input ................................ 2 Fibre connection ..............................2 CPT101 stand-alone installation ........................3 CRT103 triple channel video transmitter ........................ -
Page 3: Cfo100 - Single And Triple Channel Video Only Link
CFO100 - Single and triple channel video only link CFO100 First Miles series offers a 10-bit video transmission over one mutimode fibe / video channel for fixed camera applications. Welcome, and thank you for purchasing Teleste’s CFO products. General CFO100 First Mile series offers a highly cost-effective single channel composite video transmission over one multimode fibre. -
Page 4: Cpt101 Mini Sized Stand-Alone Video Transmitter
4) Power supply connector The optical connector is of the type ST. The optical output level is (2-pin screw terminal) typically -4 dBm. For testing purposes the CFO100 series transmitter 5) Grounding and receicer can be connected with a short fibre patch cable. -
Page 5: Cpt101 Stand-Alone Installation
16...24 VAC. In DC use the +12V DC supply voltage is supplied by the means of a separate mains adapter with a regulated output, (e.g. CPS251). The permitted operational temperature range is -34...+74°C. Wall bracket dimensions. CFO100 user manual... -
Page 6: Crt103 Triple Channel Video Transmitter
STATUS led in CRT103 units has no real value and is always green. CRT103 OPTICAL TRANSMITTER CRT103 Optical Transmitter 1) Locking screw (2 pcs) 2) Video input (BNC female) 3) Optical output (ST) 4) Link status indicator led 5) Handle (with unit information) See further information on dedicated sections. CFO100 user manual... -
Page 7: Crt103 Stand-Alone Installation
CIK002. CMA015 module adapter. CPS251 12VDC mains adapter. DC connection polarity CMA025 module adapter with CIK002 rear mounting kit. 1. CMA025 module adapter 2. CIK002 rear mounting kit CFO100 user manual... -
Page 8: Fibre Connection
Fibre connection The optical connector is of the type ST. The optical output level is typically -4 dBm. For testing purposes the CFO100 series transmitter and receicer can be connected with a short fibre patch cable. The operating wavelenght is 1310 nm. -
Page 9: Crr101/103 Single And Triple Channel Video Receiver
1) Locking screw (2 pcs) 2) Video output (BNC female) 3) Optical input (ST) 4) Link status indicator led 5) Handle (with unit information) See further information on dedicated sections. Note! CRR101 is a single channel version of CRR103. CFO100 user manual... -
Page 10: Crr101/103 Stand-Alone Installation
CIK002. CMA015 module adapter. CPS251 12VDC mains adapter. DC connection polarity CMA025 module adapter with CIK002 rear mounting kit. 1. CMA025 module adapter 2. CIK002 rear mounting kit CFO100 user manual... -
Page 11: Fibre Connection
60825-1: 2001 and US department of health services 21 CFR 1040.10 ST Connectors. and 1040.11 (1990) when operated within the specified temperature, Make sure the key is aligned in the slot power supply and duty cycle ranges. properly before tightening! INVISIBLE LASER RADIATION CLASS 1M CFO100 user manual... -
Page 12: Legal Declarations
Teleste reserves the right to revise this document or withdraw it at any time without notice. WEEE directive...
