HAND HELD PROGRAMMER

PRODUCT MANUAL

IMPORTANT

Installer: This manual is the property of the customer and

must be retained with the product for

maintenance and operational purposes.

Table of Contents

Need help?

Do you have a question about the rada and is the answer not in the manual?

Questions and answers

Summary of Contents for Pulse rada

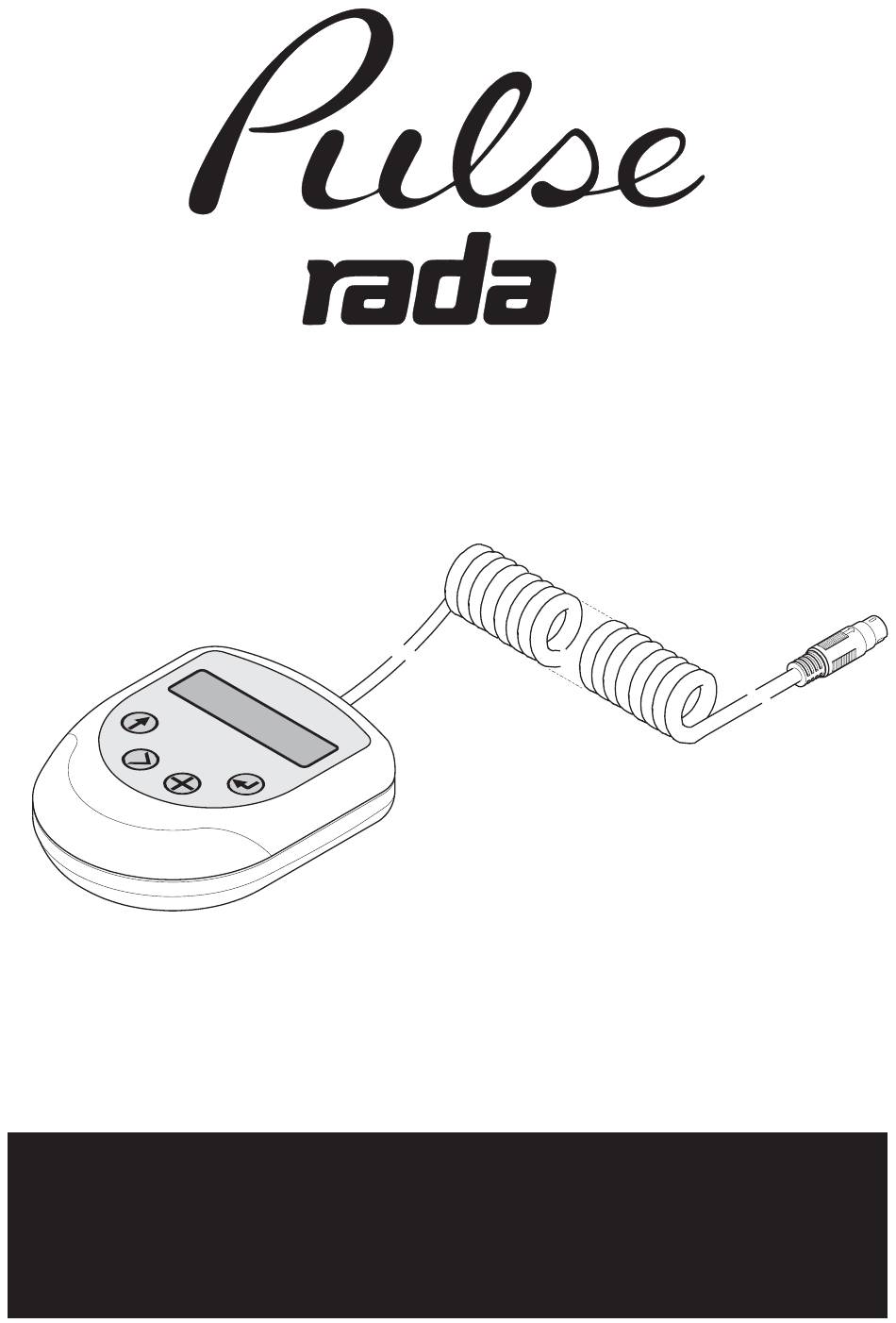

Page 1 HAND HELD PROGRAMMER PRODUCT MANUAL IMPORTANT Installer: This manual is the property of the customer and must be retained with the product for maintenance and operational purposes.
Page 2: Table Of Contents
TABLE OF CONTENTS page INTRODUCTION DESCRIPTION SPECIFICATION PACK CONTENTS DIMENSIONS INSTALLATION MAINTENANCE OPERATION NOTES CONTACTS CUSTOMER CARE Back Cover...
Page 3: Introduction
DESCRIPTION The Rada Pulse Hand Held Programmer is a hand held unit which enables you to program the Rada Pulse Control Box. The programmer has an extendable lead which plugs into a socket in the top of the Control Box.
Page 4: Pack Contents
PACK CONTENTS Tick the appropriate boxes to familiarize yourself with the part names and to confirm that the parts are included. 1. Rada Pulse Hand Held Programmer 1 x Hand Held Programmer 2. Documentation 1 x Product Manual DIMENSIONS 95 mm...
Page 5: Installation
INSTALLATION Rada Pulse Hand Held Programmer Remove the blanking plug from the top of the Rada Pulse Control Box. Connect the pin plug on the extendable lead to the connection point (care must be taken not to force the pin plug into the socket).
Page 6: Operation
OPERATION The control unit has a two line (alpha numeric) backlit display and four push buttons allow the user to navigate through the menu choices and set the configuration data. The four control unit push buttons are as follows: Two Line Alpha Numeric Display Enter Pressing the enter key will select the Back...
Page 7 With the hand held programmer plugged in to the control box you can set the following options. Language - The hand held controller is multilingual and you have the option to set the following languages; Deutsch, Netherlands, Francais, Svenska, Novege, Espanol, Polski, Chechoslovakia and English.
Page 8 To Select Language Pressing the back key at any time Note! during the procedure will take you back to the previous menu. Main Menu Screen Main Menu > > > > > Pressing the > key will enable you Language to select 3 different options;...
Page 9 To Select System Information Pressing the back key at any time Note! during the procedure will take you back to the previous menu. Main Menu Screen Pressing the > key will enable you Main Menu > > > > > to select 3 different options;...
Page 10 To Program a Channel for a W.C Main Menu Screen Pressing the > key will enable you to select 3 different options; Main Menu > > > > > Language, System info or Program Program Options options. > > > > > >...
Page 11 To Program a Channel for a Washbasin Main Menu Screen Pressing the > key will enable you to select 3 different options; Main Menu > > > > > Language, System info or Program Program Options options. Pump > > > > > Pump >...
Page 12 To Program a Channel for a Shower Main Menu Screen Pressing the > key will enable you Main Menu > > > > > to select 3 different options; Program Options Language, System info or Program options. Notes ! Pressing the back key at any Program Options >...
Page 13 Blocking time > > > > > 00:00 (MM:SS) SSeconds Selected Blocking time > > > > > 00:00 (MM:SS) SMinutes Selected > > > > > > > > > > Disinfection > > > > > Disinfection > > > > > Pump >...
Page 14 To Program a Channel for a Urinal Main Menu Screen Pressing the > key will enable you Main Menu > > > > > to select 3 different options; Program Options Language, System info or Program options. Notes ! Pressing the back key at any Program Options >...
Page 15 Flush time > + > + > + > + > + 00:00 (MM:SS) SSeconds Selected Flush time > + > + > + > + > + 00:00 (MM:SS) SMinutes Selected Duty flush 1st + + + + + Pressing the + key will 000 (HH) increase the duty flush time...
Page 16 To Program a Channel that is Not in Use Main Menu Screen Pressing the > key will enable you Main Menu > > > > > to select 3 different options; Program Options Language, System info or Program options. Program Options >...
Page 17 To Read a Channel (Copy Program) Main Menu Screen Pressing the > key will enable you Main Menu > > > > > to select 3 different options; Program Options Language, System info or Program options. Program Options > > > > > Notes ! Read channel Pressing the back key at any...
Page 18 To Program an Auxiliary Main Menu Screen Pressing the > key will enable you Main Menu > > > > > to select Language, System info or Program Options Program options. Program Options > > > > > Program aux. Program aux.
Page 19 Blocking time + + + + + 00 (MM) Save Settings > > > > > Save Settings > > > > > Auxiliary Programmed Pressing the + key will Pressing the back key at any increase the run on time or time during the procedure will delay time in increments of take you back to the previous...
Page 20 To Read the Unit Main Menu Screen Pressing the > key will enable you Main Menu > > > > > to select Language, System info or Program Options Program options. Notes ! Program Options > > > > > Pressing the back key at any Read unit time during the procedure will...
Page 21 NOTES...
Page 22: Notes
NOTES...
Page 23: Contacts
BELGIUM De Melker B.V. Tel: (03) 633 2150 Fax: (03) 633 2103 De Schutterij 20, Postbus 65, 3900 AB - Veenendaal, Rada Mechnical Products Ltd. THE NETHERLANDS 3993 Stouffville Road Tel: (0031) 318 524800 Fax: (0031) 318 52 5035 Stouffville Ontario, L4A 7X5, CANADA A L Byrne &...
Page 24: Customer Care
Spare Parts All functional parts of Rada products are kept for up to ten years from the date of final manufacture. If during that period, our stock of a particular part is exhausted we will, as an alternative, provide an equivalent new product or part at a price equating to the cost of repair to the old, bearing in mind the age of the product.
