Getting Started

Rev D

Table of Contents

Need help?

Do you have a question about the See Boost and is the answer not in the manual?

Questions and answers

Summary of Contents for Evergaze See Boost

Page 2: Table Of Contents
Contents Support Information Product Information Accessories Included Adjusting Frames Charging Checking Charge State Battery Pack Information Installing Occulder (Optional) Installing Alternate Nosepads (Optional) Installing Glasses Keepers (Optional) Powering on Using the Control Knob Powering off Attaching Lanyard to Battery Pack Removing Lanyard from Battery Pack Storing in Clamshell Case Cleaning...
Page 3: Support Information
Support Information www.seeboost.com Visit us on the web at For technical support, please call (972) 643-8498 Page 2 of 32...
Page 4: Product Information

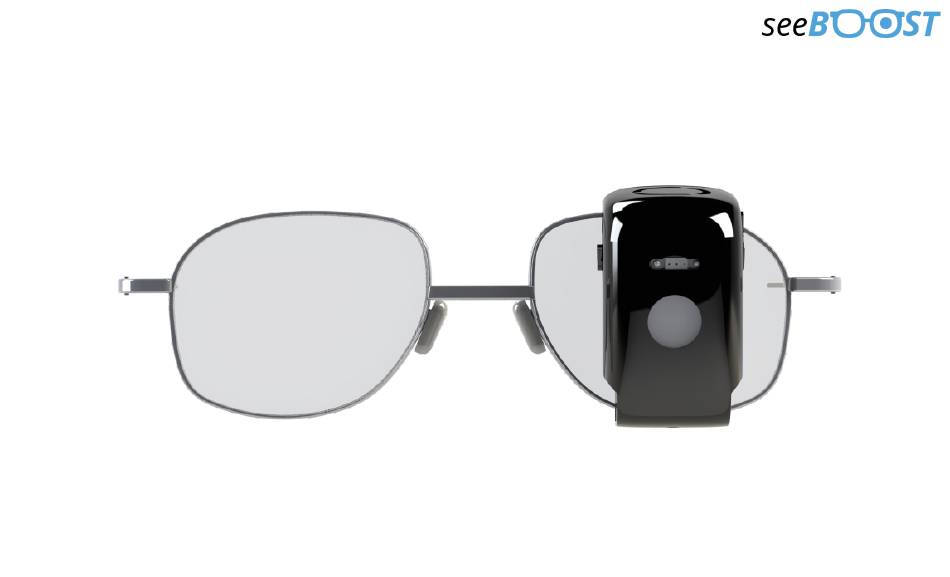

Product Information seeBOOST is an electronic monocular spectacles-mounted vision enhancement device designed to improve the visual function of persons with central vision loss due to macular degeneration or diabetes. seeBOOST is intended for all-day use, and for various activities including: •...
Page 5: Accessories Included
Accessories Included Occulder Microfiber Cloth Nose pads Clamshell Case (small and large) Battery Pack Charger Lens Cleaning Glasses Keepers Battery Pack 6 foot Type-C Lanyard Wipes (x6) USB Cable Page 4 of 32...
Page 6: Adjusting Frames
Adjusting Frames (1 of 2) Adjust nosepieces With glasses on, tilt head down. If glasses are slipping down nose, remove glasses and push nosepieces together as shown. Page 5 of 32 If frames are not fitting, please call for assistance.
Page 7 Adjusting Frames (2 of 2) Adjust earpieces With glasses on, tilt head down. If glasses are slipping down nose, remove glasses and bend both earpieces as shown. Continue until glasses are snug on face. Place thumb at Bent earpiece corner here Push toward other thumb to bend Page 6 of 32...
Page 8: Charging
Charging (1 of 5) Plug the charger into an AC outlet Charger AC Outlet Page 7 of 32...
Page 9 Charging (2 of 5) Locate ends of cable Large end plugs into Small end plugs into Charger Battery Pack Page 8 of 32...
Page 10 Charging (3 of 5) Plug large end of cable into Charger Page 9 of 32...
Page 11 Charging (4 of 5) Plug small end of cable into Battery Pack A bump located just above the connector will help guide connector into the port Location Bump Battery Pack Page 10 of 32...
Page 12 Charging (5 of 5) Check Charge Indication During Charge Charging Charge Completed Single 3 green Light lights Page 11 of 32...
Page 13: Checking Charge State
Checking Charge State Press Knob to check Charge State Fully Charged 50% Charge 25% Charge Low Charge 3 Hours 6 Hours 1.5 hours 30 minutes Durations are estimated times based on usage/charging history, screen brightness and age of battery pack.
Page 14: Battery Pack Information
Battery Pack Information • Battery pack can be plugged in with device turned on • Turning down brightness will increase battery life • Charge state is displayed permanently when device is on • Battery pack will remain charged for months if not used •...
Page 15: Installing Occulder (Optional)
Installing Occulder (Optional) seeBOOST can be worn with an optional occluder to help block light in the fellow eye if light sensitivity causes problems with screen visibility. To install, slip over the stem and push over the lens of the unaided eye. Page 14 of 32...
Page 16: Installing Alternate Nosepads (Optional)
Installing Alternate Nosepads (Optional) Remove existing nosepad Push in new nosepad by pushing out of snap into snap Snap Push in until click Page 15 of 32 Page 15 of 32...
Page 17: Installing Glasses Keepers (Optional)
Installing Glasses Keepers (Optional) Slide Glasses Keepers over earpieces as shown Slide Glasses Keepers Push Page 16 of 32...
Page 18: Powering On
Powering on Plug magnetic connector into Battery Pack seeBOOST will power on automatically Charge State is shown on other side of Battery Pack Page 17 of 32...
Page 19: Using The Control Knob
Using the Control Knob (1 of 4) Adjust magnification Increase Magnification Decrease Magnification Turn Knob Clockwise Turn Knob Counterclockwise Page 18 of 32...
Page 20 Using the Control Knob (2 of 4) Magnification • Each click of the knob will increase by approximately 1x magnification. • The first click has a larger jump in magnification. • Use the lowest magnification comfortable for the task. • If material is too hard to read at high magnification, bring it closer. •...
Page 21 Using the Control Knob (3 of 4) Toggle Color Mode Push and Release Mode 1: Full Color Mode Mode 2: High Contrast Grayscale Pressing down on the control knob and releasing will toggle the color mode. Inverted mode can be useful for lower contrast scenes, or when it is easier to read white text with a dark background.
Page 22 Using the Control Knob (4 of 4) Change Display Brightness Hold down knob while turning Decrease Increase brightness brightness This adjusts the overall screen brightness and light into the eye. The last setting is remembered after seeBOOST is powered off. Page 21 of 32...
Page 23: Powering Off
Powering off Remove magnetic connector from Battery Pack Use index finger to grab end of connector. ✘ Do not disconnect by grabbing cable Page 22 of 32...
Page 24: Attaching Lanyard To Battery Pack
Attaching Lanyard to Battery Pack Install Lanyard Clip as shown Battery Pack Lanyard Page 23 of 32 Push through slot Pull clasp through...
Page 25: Removing Lanyard From Battery Pack
Removing Lanyard from Battery Pack Squeeze clasp and pull to remove lanyard Squeeze and pull out Page 24 of 32...
Page 26: Storing In Clamshell Case
Storing in Clamshell Case Place seeBOOST in Clamshell Case as shown Wrap cable gently. Magnetic connector will stick to inside of case. Page 25 of 32...
Page 27: Cleaning
Cleaning (1 of 2) • seeBOOST requires periodic cleaning for optimal performance. • Clean regularly with the included microfiber cloth. • Do not clean with water. • Do not use excessive force while cleaning. Page 26 of 32...
Page 28 Cleaning (2 of 2) Gently wipe surfaces shown in light blue using Microfiber Cloth. If lenses are very dirty, use pre- moistened cleaning wipes. Front Side Microfiber Cloth Lens Cleaning Wipes Page 27 of 32 Back Side...
Page 29: Precautions
Precautions Do Not Do not • drive with seeBOOST Do not • walk with seeBOOST Do not • get seeBOOST wet or submerge in water Do not • store in a hot or humid environment Warning • seeBOOST is a fragile optical instrument. Handle with care. •...
Page 30 Precautions Warning Do not • place seeBOOST upside down while turned on. This will impede air flow required to function properly Airflow ✘ ✔ Page 29 of 32...
Page 31 Precautions WARNING Please read the following WARNING labels carefully. If you are unable to read this WARNING adequately and in full, please have another person read the following WARNING to you aloud in full. WARNING: OBSCURED VISION Normal use of the seeBOOST will obscure your vision. While using the seeBOOST, do not engage in any activity that would pose a physical risk to any person engaged in such an activity even if that person is not using a seeBOOST.
