Hedler Frofilux LED 1000T Operation Manual

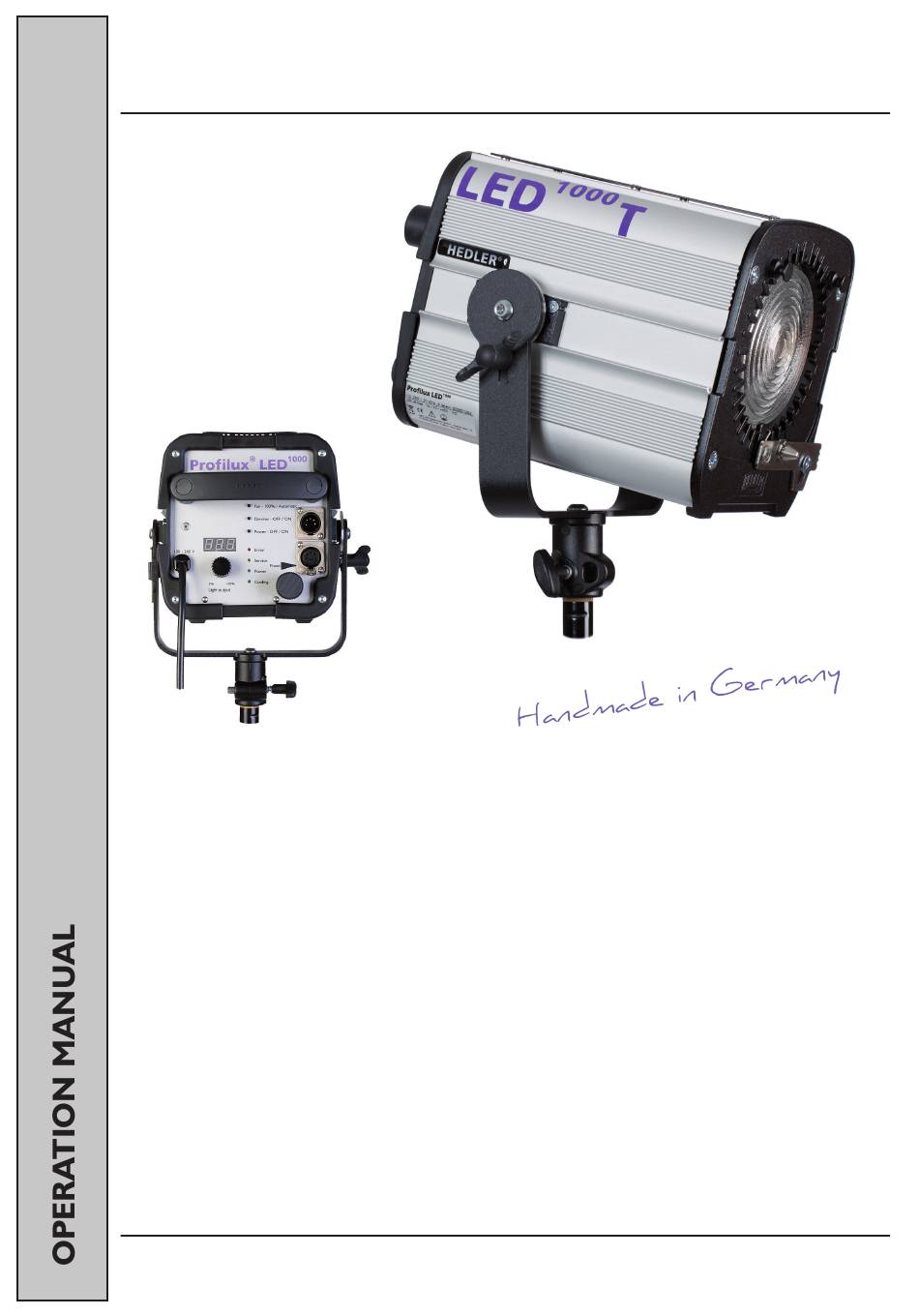

Profilux ® LED 1000 T
® 1000
HEDLER Profilux LED T operation manual.
Please, read the following technical information and the HEDLER safety
instructions carefully before using the light unit.

TECHNICAL DESCRIPTION

HEDLER light units are made for professional use, they are assembled by applying precision methods and tested individually for function and
®
quality. The HEDLER Profilux LED
attachment. After loosening the hex key screws by approx. 2 turns, the U-bracket can be moved back and forth in its keyway for gravity
adjustment and it is turnable for right and left hand use.
®
1000
The HEDLER Profilux LED T is designed for AC use from 110 - 230 V (with automatic mains voltage recognition) and 50 / 60 Hz and is
equipped with a LED Softstart feature. it is using a 185 W highpower single cell LED and generates a flicker-free light with approx. 3400 K and a
CRI > 93. It has an extremely quiet cooling. It can be used in automatic mode or can be switched manually to 100%. Besides it is equipped with
a special active LED fan cooling and an integrated safety switch-off.
At its front side the aluminium housing holds a Fresnel lens and the QuickFit adapter for a quick and easy compatibility of all HEDLER lightformers.
Interchangeable reflectors with bayonet ring can be attached in the following way: place the rim of the ring into the guide grooves of the upper
studs and the round opening over the cone-shaped bolt, and lock it by a turn to the left. To attach the rotatable 4-Leaf barndoors or a MaxiSoft
folding reflector, place the rim of the ring into the guide grooves of the upper studs, and then push the complete reflector towards the QuickFit´s
cone-shaped bolt until the ring locks in the bolt´s groove. Detach the reflector by lifting the QuickFit´s handle, moving the lower side of the
reflector away from the light unit´s housing, and then lifting the reflector´s ring out of the guide grooves of the upper studs.
The focusing option of the HEDLER Profilux
the focusing knob located at the back of the housing and the size of the light beams diameter can be adjusted precisely to your lighting needs or
ideas - intuitively.
H E D L E R S y s t e m l i c h t G m b H
Te l e f o n + 4 9 - ( 0 ) 6 4 8 2 9 1 8 1 0 0
1000
T is provided with an integrated U-bracket and a friction brake and a 5/8" Quick-Lock light stand
® 1000
LED T allows to adjust the light beam from spot up to flood light characteristic. Simply turn
