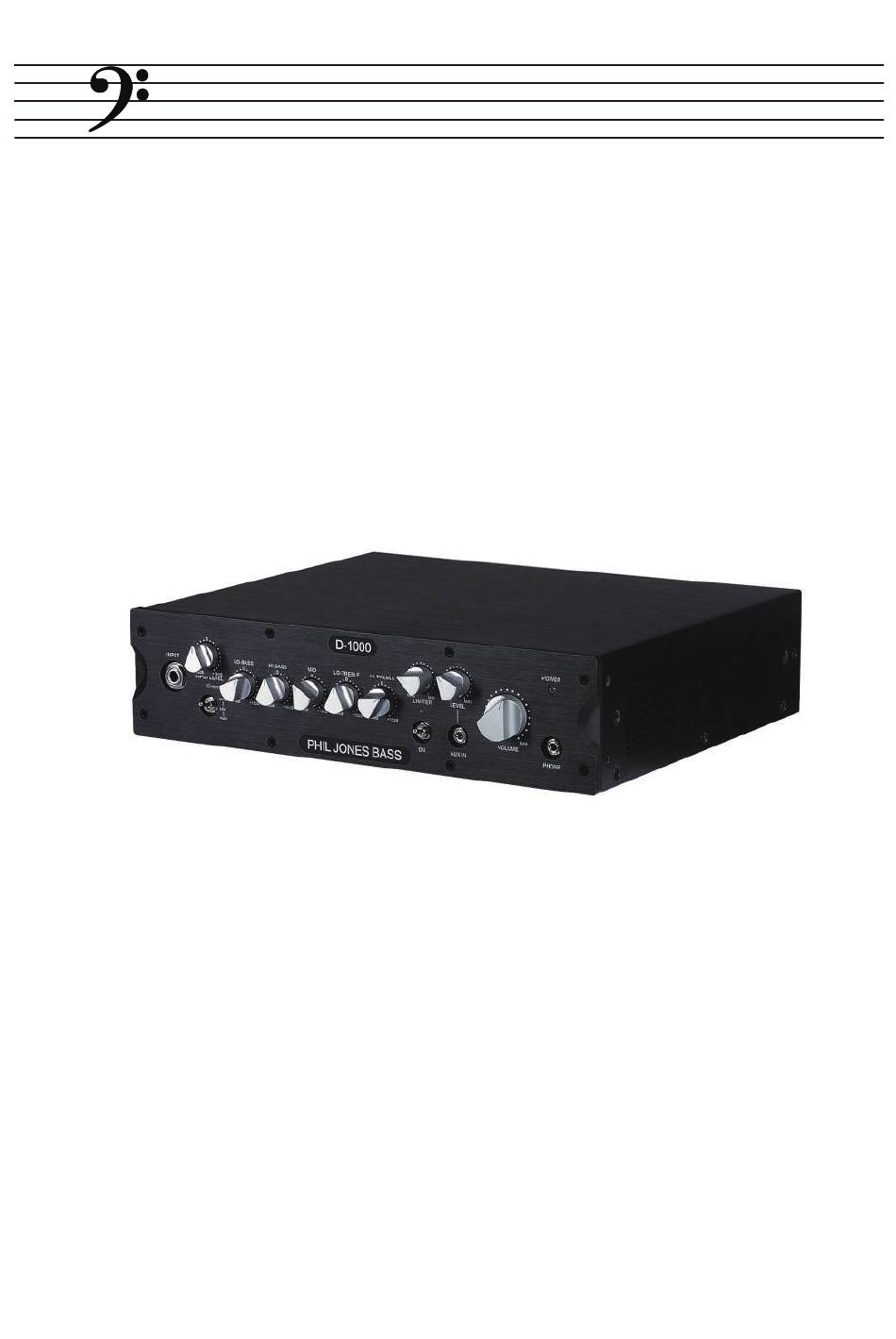

- Page 1 Phil Jones Bass PJB D-1000 OWNER’S MANUAL...
-
Page 2: Read This First
into designing and building this no compromise, high performance compact amplifier. It was conceived to be a dedicated amplifier for the “connoisseur” bassist. Reading this manual will enable you to get the best performance from it so that you may enjoy many years of service. -
Page 3: Back Panel
+18dB -18dB +18dB -18dB +18dB -18dB +18dB MUTE VOLUME HIGH AUX IN PHONE PHIL JONES BASS 2 3 4 10 11 12 13 16 17 FRONT FRONT PANEL PHIL JONES BASS MODEL: D-1000 DI OUT LINE IN FX SEND SPEAKER OUT... -
Page 4: Front And Back Panel Description
FRONT AND BACK PANEL DESCRIPTION 1. PASSIVE BASS INSTRUMENT INPUT JACK. This is a standard ¼ inch mono jack socket. For the best possible sound we recommend you use the PJB BI-12 instrument cable as of sound and less noise than other instrument cables. 2. -
Page 5: Master Volume Control
12. LIMITER IN/OUT SWITCH. Sends signal through limiter or bypass. 13. AUX INPUT VOLUME CONTROL. Use to control the level of backing/rhythm track. 14. AUX INPUT JACK. Stereo input for Drum machine or other player. 15. MASTER VOLUME CONTROL. This is the master volume control and it controls how much power you send to your tone or plugging in your instrument, you should keep this control at a low level. -
Page 6: Line Input
21. LINE INPUT. Input matched to accept high-level outputs from other bass/guitar pre-amps and signals such as CD players and drum machines. This input is a direct feed to the 22. PRE AMP LINE OUT. This output can be used to drive a PJB powered cabinet such as the PB-100 or PB-300. power from the D-1000 to add more authority to your tone. -
Page 7: Operation & Positioning
OPERATION & POSITIONING TURN THE VOLUME DOWN or switch the MUTE on the D-1000 before plugging in your instrument. Connect the speaker or speakers to the D-1000. For best results with this amplifier you should use PJB loudspeaker cabinets and PJB cables. WITH THE GROUND CONNECTION REMOVED. - Page 8 more headroom but will put less stress on your speakers. PJB makes a few models of speakers that will match the D-1000. The C-8 and C-8 LITE are 4 ohms and will make full use of the amplifier’s power. If you need a smaller cab then the C-4 or C-4 LITE (8 ohms) will work and 2 can be connected to give a 4 ohm load to the amp.
-
Page 9: Specifications
SPECIFICATIONS Amplifier Frequency Response Maximum Output Power Impedance Passive Input: >4MΩ/22pF Line Input: >75KΩ Pre Amp Line Out: < 2KΩ Bal. Out: <200Ω Levels Pre Amp Out: 1.2V FX send: 1V Bal. Line Out: Typical 600mV Compressor / Limiter Gain: 0dB EQ CENTER FREQUENCIES 70, 160, 630, 2.5K, 12K at +/- 18dB... -
Page 10: Service & Warranty Information
SERVICE/WARRANTY INFORMATION PJB amplifiers carry a 2 years limited warranty on parts and labor. Products must be purchased from an authorized PJB dealer. Buyer must complete and return the enclosed warranty card within 15 days of purchase, or register online by www.philjonespuresound.com/support/register This warranty covers defect in materials or workmanship that occurs in normal use. - Page 11 PHIL JONES BASS 8509 Mid County Industrial Dr / St Louis, MO 63114 USA Phone: 314-814-3383 Fax: 636-536-1338 www.pjbworld.com Printed in China...
