Summary of Contents for Belden 1797B

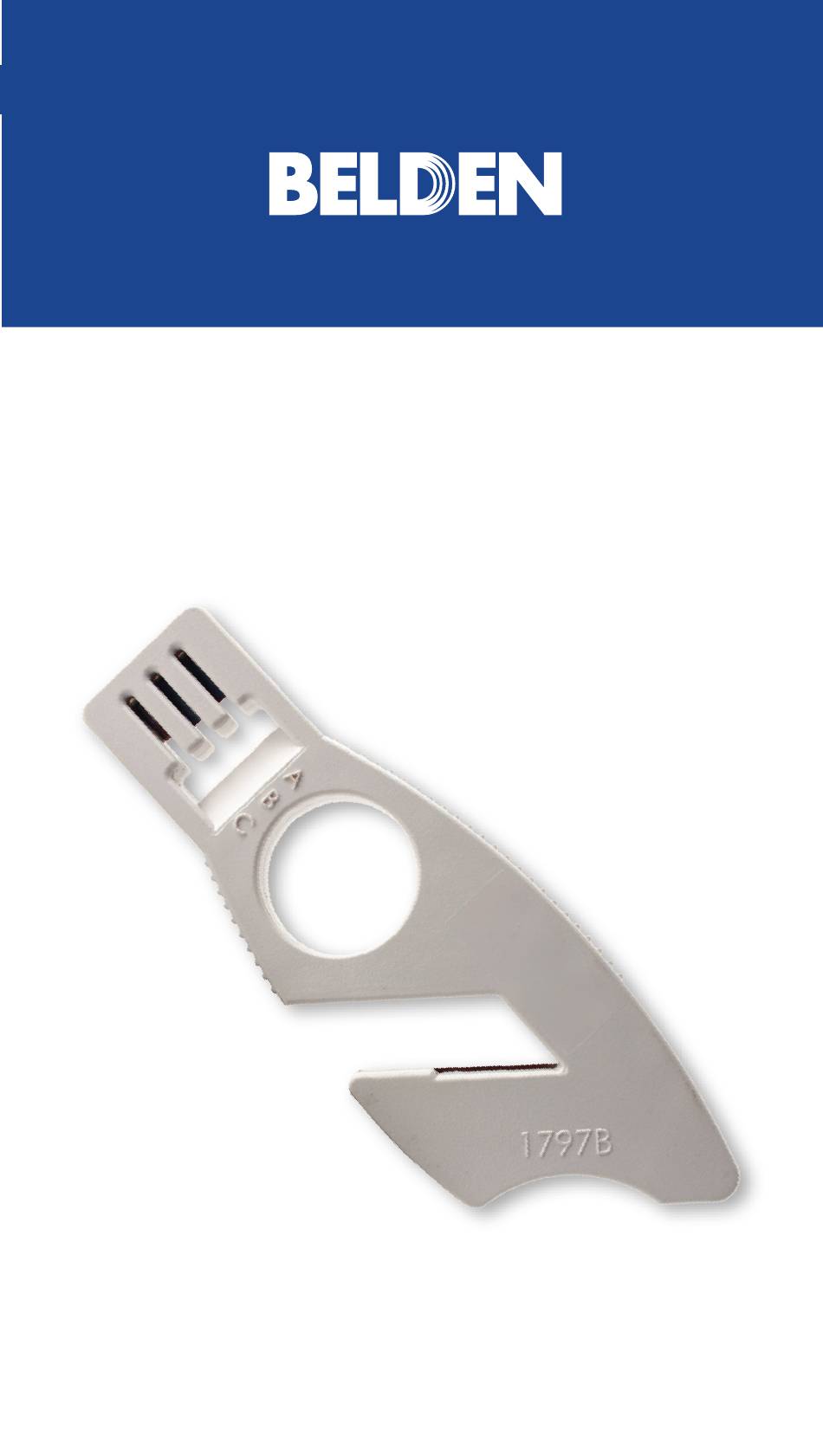

- Page 1 Belden Cable Preparation Tool Instructions - 1797B Our End-to-End Expertise Your End-to-End Solution...
- Page 2 Tool Instructions Pair Preparation—Pick Method, Figures 3 & 4 Jacket Removal—Figure 1 Insert cable into the cutting area and rotate tool at least one Lay each twisted pair into the tool channel with the pair ends facing toward the pick. Place your thumb on the thumb notch to stabilize and complete turn.
- Page 3 Fundamental Tool Guidelines The 1797B stripping tool can cover a wide variety of bonded pairs, and the proper slot selection can be made quickly and accurately, without knowing the insulated conductors’ dimensions. The 1797B utility tool is designed to hold a Bonded Pair in slot A, B or...
