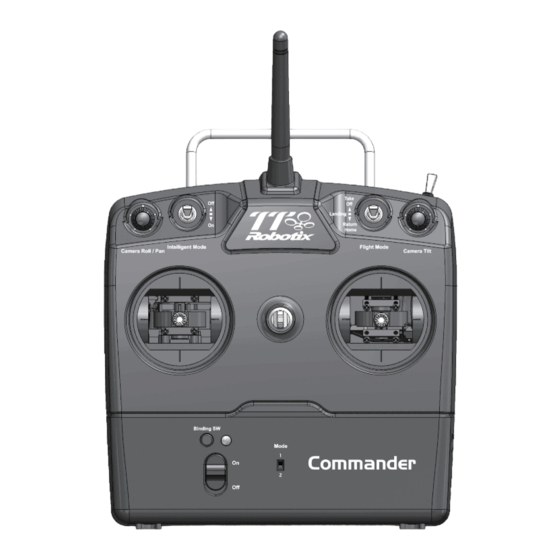

2.4 GHz DIGITAL PROPORTIONAL 9-CH RADIO CONTROL SYSTEM
Instruction Manual
No.8901
FCC ID: VEJ-COUGARGP3
JC7405
More information can view the tutorial videos on our TTR official website (www.ttrobotix.com)
or YouTube channel (https://www.youtube.com/user/ThunderTigerVideo)
您可登入TTR官網或YouTube官方頻道，以獲取最新的產品資訊與更詳盡的產品說明
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for TT Robotix Commander

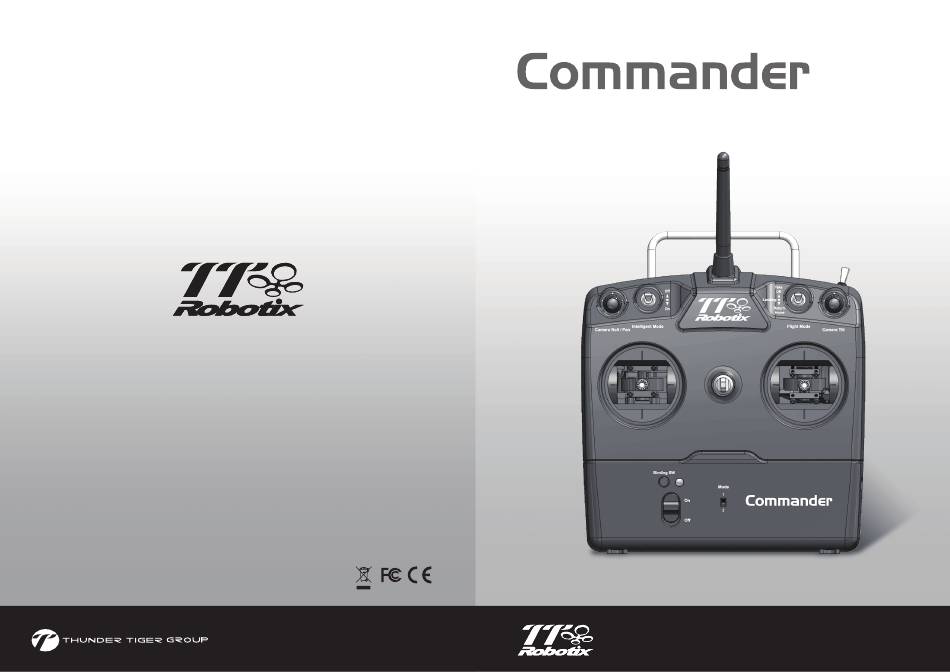

- Page 1 2.4 GHz DIGITAL PROPORTIONAL 9-CH RADIO CONTROL SYSTEM Instruction Manual No.8901 FCC ID: VEJ-COUGARGP3 More information can view the tutorial videos on our TTR official website (www.ttrobotix.com) or YouTube channel (https://www.youtube.com/user/ThunderTigerVideo) thundertiger.com JC7405 您可登入TTR官網或YouTube官方頻道，以獲取最新的產品資訊與更詳盡的產品說明...
-
Page 2: System Contents
■ Security ID binding link A binding feature is included with the Commander 2.4 GHz spread spectrum system ensuring transmitter and receiver only recognize each other to prevent interferences from other controllers. ■ Range checking function A range checking button on the transmitter reduces transmitter signal for pre-flight range check. -
Page 3: Transmitter Controls
Transmitter Controls Antenna Flight Mode Switch: (1) Take Off Mode: When the GPS antenna receives 7 signals from the satellite, it will switch to the GPS mode automatically. (2) Landing Assist: The Landing Assist will automatically decelerate and stabilize the drone when in landing, the function will be activated when drone is within 2M from the ground. -
Page 4: Radio Installation
Radio installation Before installing your radio into your model, connect the receiver, servos, and switch harness/battery pack as shown. In addition to checking for proper operation, this "bench test" helps you become familiar with the operation of your radio. Begin by turning on the transmitter, and then turn on the receiver switch. - Page 5 Functions The Commander transmitter was specifically-designed to operate air models. Basic functions for this transmitter are listed below. 1. Power On a) Turn On/Off After installing the transmitter batteries, turn on the transmitter power by sliding up the switch located on the front middle position of the transmitter.
- Page 6 3. Range-Check A built-in range-check function on the transmitter reduces signal strength for pre-flight range- check. When this function is activated, signal strength is weak. Use the weak signal strength for pre-flight range-check to confirm operation of wireless radio control system is normal. It is recommended to perform a complete range-check before every flight.
-
Page 7: Fcc Interference Statement
FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 8 Warning! Operating range may be significantly reduced with the transmitter antenna pointing directly at the model! Service Thank you for purchasing the ACE RC Commander Radio. This radio was produced by Thunder Tiger Corp. Thunder Tiger products are sold worldwide through authorized distributors supported directly by Thunder Tiger.
- Page 10 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
