P.O. BOX 1384

BYAN SYSTEM, INC.

413 LINDEN

LUSK, WY 82225

(800) 223-2926

G2M Control Board

Installation and Operations Manual

Specifications

Single Phase 115V or 220V 50/60 Hz AC

2A, 250V; 5mm x 20mm tubular glass

6A, 250V; 5mm x 20mm tubular glass

FAX (307) 334-2028

Up to 550W or 3/4 hp

12V DC 1A max.

24V AC 1A max.

Table of Contents

Need help?

Do you have a question about the G2M and is the answer not in the manual?

Questions and answers

Summary of Contents for Byan System G2M

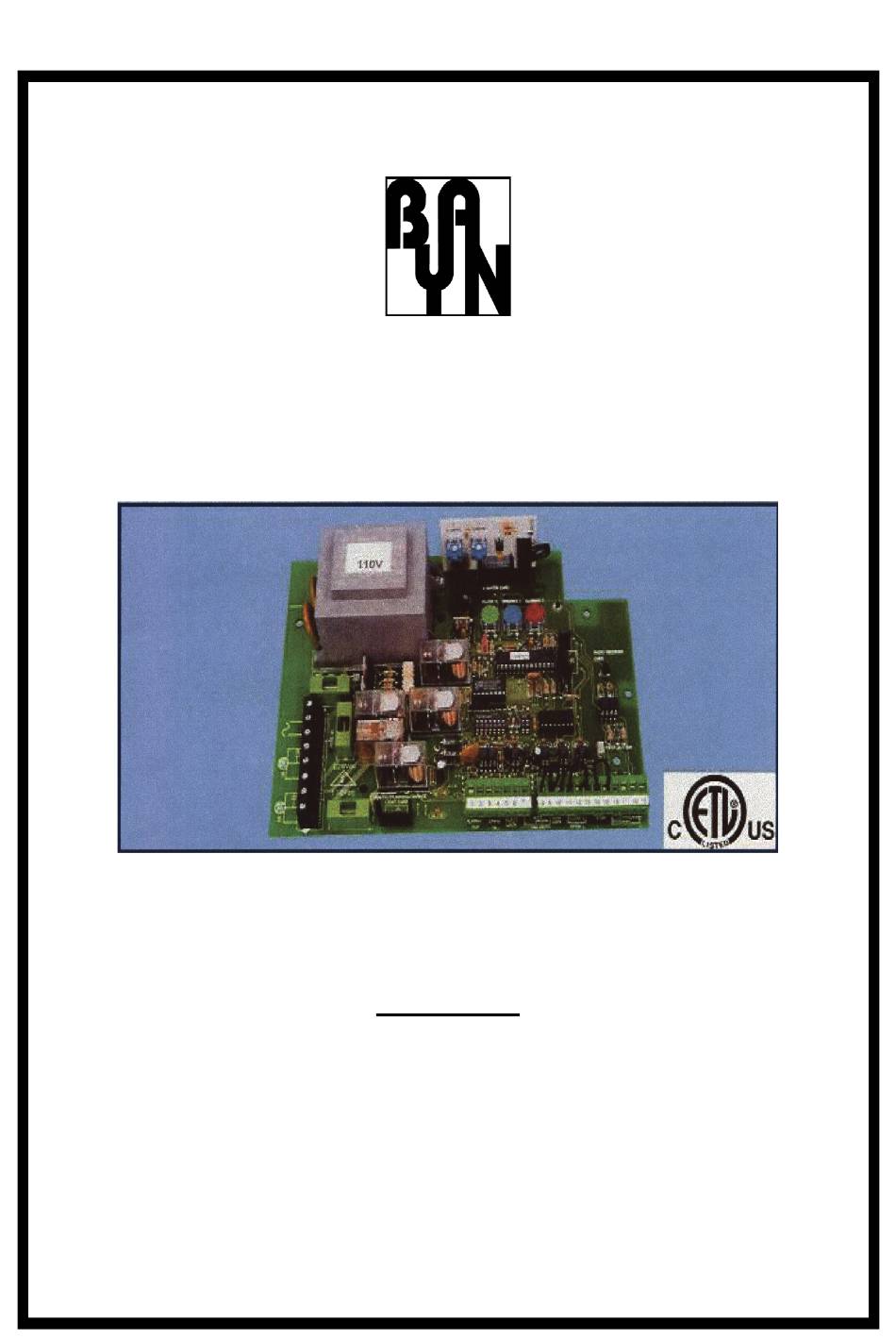

Page 1 BYAN SYSTEM, INC. 413 LINDEN LUSK, WY 82225 (800) 223-2926 G2M Control Board Installation and Operations Manual Specifications Power supply Single Phase 115V or 220V 50/60 Hz AC Motor Power Consumption Up to 550W or 3/4 hp Electric Lock Output 12V DC 1A max.
Page 2: Table Of Contents
BYAN SYSTEMS, INC. Automated Gate and Access Control Products Table of Contents: Board Layout Description Terminal Information Power and Motor Run Terminal Table Commercial Power Hook-Up Accessory Terminal Table Accessory Hook-Up Timing Potentiometers S1 DIP Switches; Table S1 & S1a S2 DIP Switches;...

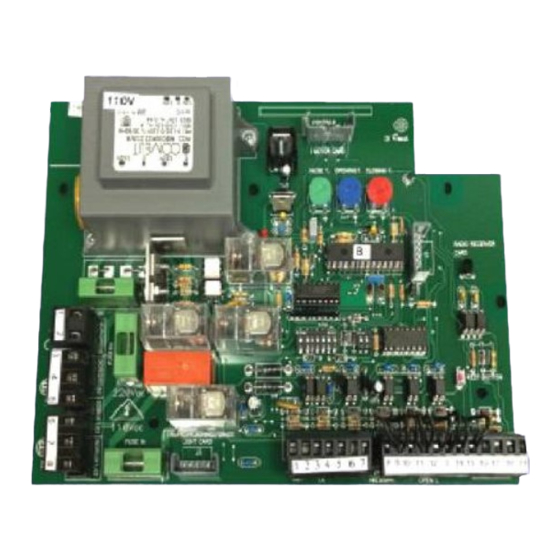

Page 3: Board Layout
Terminal Strips: There are two sets of terminals on the G2M control board. The first terminal strip is the power and motor run terminal block located on the left side of the board below the transformer. This is where the incoming commercial power and the outgoing power to the operators are connected.
Page 4: Power And Motor Run Terminal Table
BYAN SYSTEMS, INC. Automated Gate and Access Control Products Power and Motor Run Terminals Terminal Terminal Name/Description Number Commercial Power Input Neutral (White 115V) or Hot (Black 220V) Commercial Power Input Hot (Black-115V or Red-220V) Motor One Close Directional (Black) Motor One Open Directional (Red) Motor One Common (White) Motor Two Close Directional (Black)
Page 5: Accessory Terminal Table
BYAN SYSTEMS, INC. Automated Gate and Access Control Products Accessory Terminal Table Terminal Terminal Name Possible Uses Numbers 1 - 2 Alarm Output These terminals allow the connection of a device to alert the user that people safe has been activated. 3 - 4 24V AC 1A Output Power for accessories such as radio...
Page 6: Accessory Hook-Up
Automated Gate and Access Control Products Accessory Hook-Ups*: There are many accessories available that are compatible with the G2M that will give the end user different options for safety, security, and system operations. Since it would be impossible to outline all possible combinations, we will simply outline a few of the most common. Keep in mind;...
Page 7: Timing Potentiometers
BYAN SYSTEMS, INC. Automated Gate and Access Control Products 3. Connect terminal 5 of the relay base to terminal 10 of the detector base. 4. Connect terminal 10 of the detector base to terminal 10 of the accessory terminal strip. Safety: 1.
Page 8 When turned on, the operators will cycle in the last direction of operation for 2 seconds every hour. G2M to Byan Prewire Terminal Conversion Tables*: G2M Power and Motor Terminal Strip to Byan 12 x 10 Prewire G2M Terminal Number 12 X 10 Terminal Strip Terminal Number...
Page 9: Power And Motor Run Terminal Strip Conversion Tables
BYAN SYSTEMS, INC. Automated Gate and Access Control Products G2M Power and Motor Terminal Strip to Byan 24 x 20 Prewire G2M Terminal Number 24 x 20 Terminal Strip Terminal Number 3(115V) 2 (220V) 2 (115V) 1 (220V) TB3, TB4...
Page 10 BYAN SYSTEMS, INC. Automated Gate and Access Control Products G2M Accessory Terminal Strip to Byan 24 x 20 Prewire G2M Terminal Number 12 x 10 Terminal Strip Terminal Number TB5, TB7 TB5, TB7 TB5, TB7 TB5, TB7 TB5, TB7 TB5, TB7...
Page 11: 10 And 20 X 16 Prewire Layouts
BYAN SYSTEMS, INC. Automated Gate and Access Control Products Byan Systems 12 x 10 & 20 x 16 Prewire Layouts: 413 Linden • Lusk, WY 82225 • (800) 223-2926...
Page 12: 20 Prewire Layout
BYAN SYSTEMS, INC. Automated Gate and Access Control Products Byan Systems 24 x 20 Prewire Layout: 413 Linden • Lusk, WY 82225 • (800) 223-2926...
Page 13: Trouble Shooting Guide
Reverse the black and red directional wires either at the running the switched operator or at the board wrong direction If at any time you have a question concerning G2M control board, call 1-800-223-2926 for technical support. 413 Linden • Lusk, WY 82225 • (800) 223-2926...
Page 14 2. N/C Motor Two Close Limit Switch 3. N/C Motor Two Open Limit Switch Installation Instructions: 1. To install the leaf delay card, simply plug it into the card slot marked “2 Motor Card” on the G2M. 413 Linden • Lusk, WY 82225 • (800) 223-2926...
Page 15: T2M Leaf Delay Card
BYAN SYSTEMS, INC. Automated Gate and Access Control Products Adjustment Procedure: 1. To set the amount of delay between the first leaf opening and the second leaf opening, turn the open delay time (left timer) with a small screwdriver. To increase the open delay, turn the timer counterclockwise.
Page 16: Warranty
BYAN SYSTEMS, INC. Automated Gate and Access Control Products FOUR-YEAR LIMITED WARRANTY This warranty pertains only to products manufactured for/or by Byan Systems, Inc. for gate operating systems, accessories, and equipment. These products are warranted against all defective material for forty-eight months from the date of sale. Defective material returned must be prepaid and accompanied by a Byan Systems, Inc.
