DLG IM-111 User Manual

Modbus universal indicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODBUS UNIVERSAL
INDICATOR
IM–111
User manual
Modbus Universal Indicator
MAN-EN-DE-IM111-01.00_16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IM-111 and is the answer not in the manual?

Questions and answers

Summary of Contents for DLG IM-111

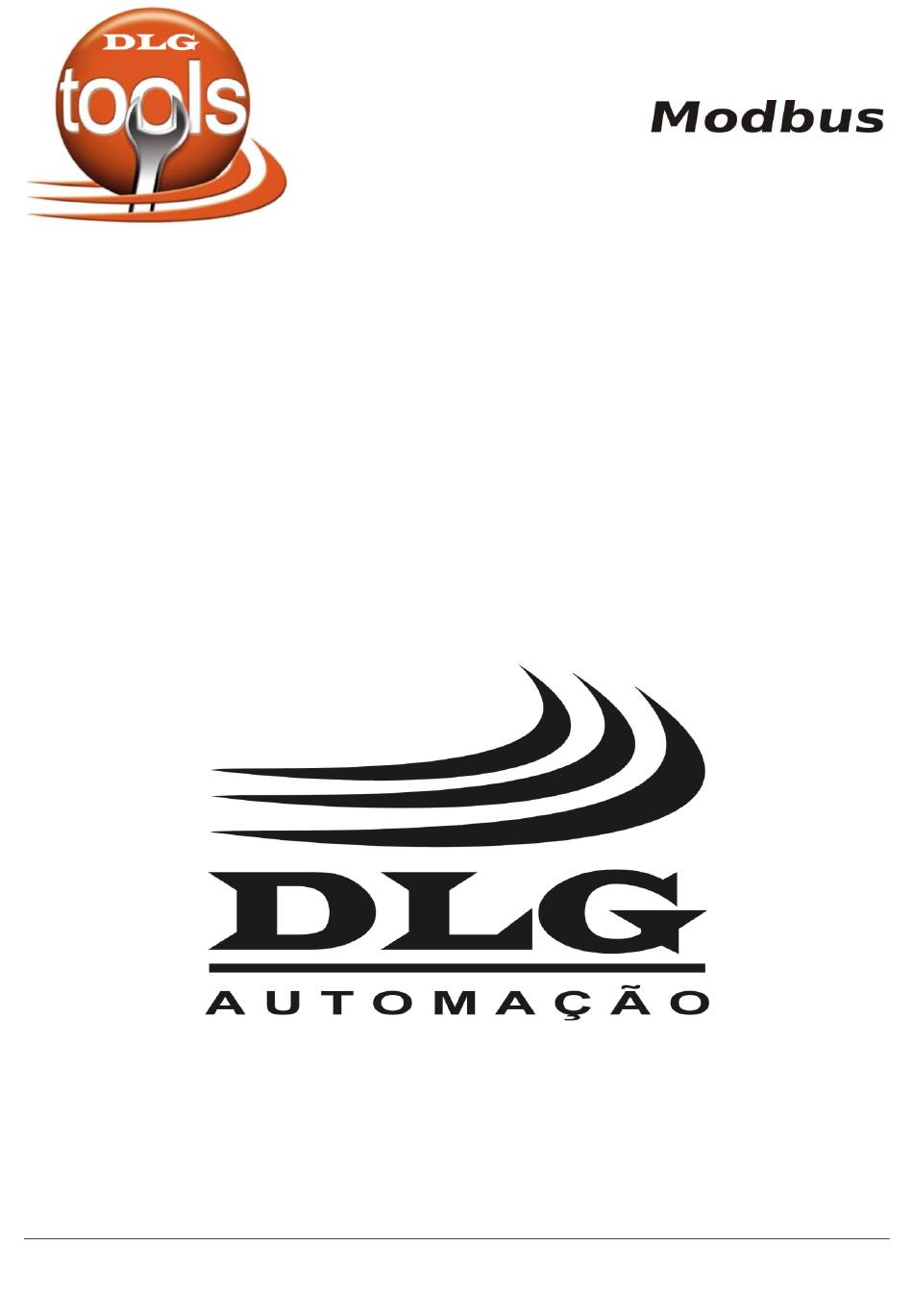

  • Page 1 MODBUS UNIVERSAL INDICATOR IM–111 User manual Modbus Universal Indicator MAN-EN-DE-IM111-01.00_16...
  • Page 3 The instrument described in this technical user manual is a device suitable for application in a specialized technical area. DLG supplied products are submitted to a strict quality control process. However, industrial control electronic equipment may cause damage to machinery or processes controlled by them in the event of any failure or improper operations and may even endanger human lives.

  • Page 4: Table Of Contents

    Contents 1 - PRESENTATION ........................6 2 - FEATURES ..........................7 3 - TYPICAL APPLICATIONS ......................8 4 - TECHNICAL SPECIFICATIONS ....................9 4.1 - ELECTRICAL CHARACTERISTICS .................. 9 4.2 - GENERAL CHARACTERISTICS ..................10 5 - HOW TO SPECIFY ........................10 6 - DIMENSIONS .......................... 11 7 - FUNCTIONALITY ........................
  • Page 5 11.1 - REQUIRED PANEL SPACE ..................37 12 - RECOMMENDATIONS ......................38 12.1 - RS-485 CABLING ......................39 12.1.1 - Cable length ......................39 13 - WARRANTY ..........................40...

  • Page 6: Presentation

    Modbus/RTU network, suitable for SCADA systems. It also comes with DLGTools software, used to configure all DLG Automation via ModBus network, free of charge. The indicator is fully configurable via the frontal keypad or by the freely available DLG Tools software, without the need for jumpers.

  • Page 7: Features

     Filter against power supply electromagnetic noise.  Communications rate and address configurable by the user.  Universal input voltage.  Detachable rear connection. IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 7 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 8: Typical Applications

    3 - TYPICAL APPLICATIONS  Temperature indication  Motor rotation indication  Level indication  Pressure indication  Variable linearization  Flow measurement Page 8 of 44 IM–111 User manual MAN-EN-DE-IM111-01.00_16 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 9: Technical Specifications

    Two SPDT relay outputs, 3ª/220 Vac each Alarms AL2 SPDT max. 3A/220Vac 24Vdc 50mA Auxiliary power supply *Available only on IM-111/DC. IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 9 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 10: General Characteristics

    Type Specification Operating temperature 0 ºC - 50 ºC IP protection IP–20 rear, IP–63 frontal. IM-111/AC: 90 ~ 240 Vac, 60Hz or 100 ~ 130 Vdc Input voltage IM-111/DC: 18 ~ 30 Vdc Power consumption 5 VA Construction ABS plastic frontal, for panel mounting “Plug-in”...

  • Page 11: Dimensions

    IM–111 MODBUS UNIVERSAL INDICATOR 6 - DIMENSIONS Figure 1 – Dimensioning for assembling (in millimeters) IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 11 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 12: Functionality

    AL1 and AL2 Visual indication of relay 1 and 2 states, respectively. TX and RX Indicates Modbus/RTU transmission (TX) and reception (RX). Table 1 – Frontal keypad functionality Page 12 of 44 IM–111 User manual MAN-EN-DE-IM111-01.00_16 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 13: Keypad Functionality

    Submenus contained herein are: .....,.....  Modbus/RTU settings: address, baud rate, parity and response delay. Modbus Submenus contained herein are: communications .,.,.,.  IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 13 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 14: Submenu Navigation

    The temperature will be indicated in the display while the user holds the key. After releasing the key, the process variable will be restored to the display. Page 14 of 44 IM–111 User manual MAN-EN-DE-IM111-01.00_16 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 15: Linearization Curve Input Indication

    After releasing the key, the linearized process variable will be restored to the display. IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 15 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 16: Configuration

    Use only when the input type is frequency. . -9999 to 30000 Engineering unit lower limit (display indication). . -9999 to 30000 Engineering unit upper limit (display indication). Page 16 of 44 IM–111 User manual MAN-EN-DE-IM111-01.00_16 All rights reserved to DLG Automação Industrial © 2011 – 2016...
  • Page 17 , activate only the upper limit or activate both limits  (). . -9999 to 30000 Lower burn-out value. . -9999 to 30000 Upper burn-out value. IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 17 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 18: Alarm Menu

    0 to 1000 s The delay time is the time between the alarm condition becoming true and the alarm being triggered. Page 18 of 44 IM–111 User manual MAN-EN-DE-IM111-01.00_16 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 19: Alarm Operation

    Mode Mode with HY time time Mode with Hy Mode time time Mode Mode time time Figure 3 – Alarm operation. IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 19 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 20: Alarm Timing

    Alarm condition Alarm output Oscillator 1 to 1000 s 1 to 1000 s Alarm condition Table 2 – Alarm timing Page 20 of 44 IM–111 User manual MAN-EN-DE-IM111-01.00_16 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 21: Output Menu

    Calibration span setting. . -100 to 100 Changes the upper calibration value. To restore factory calibration, set this parameter to 100. IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 21 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 22: Linearization Menu

    IM–111 MODBUS UNIVERSAL INDICATOR 8.1.4 - Linearization menu The IM-111 provides linearization for the input and/or the retransmitted signal. The linearization is based on line segments defined by up to 20 points. Submenu Parameter Description . Input signal (process variable) linearization.

  • Page 23: Modbus Communications Menu

    Delay between the Modbus request and response. . 10 to 200 ms Changing this parameter can disrupt communications. Make sure the change is necessary before executing it. IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 23 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 24: Modbus Table

    Input linearization – point 2 40036 LIN_IN_02 30000 -9999 R/W R Input linearization – point 3 40037 LIN_IN_03 30000 -9999 R/W R Page 24 of 44 IM–111 User manual MAN-EN-DE-IM111-01.00_16 All rights reserved to DLG Automação Industrial © 2011 – 2016...
  • Page 25 Calibration span setting 15000 5000 R/W R 40081 INLINVAL Linearization input 40082 LOCKEY Keypad lock R/W R 40083 TMRLOOP Program loop remaining time IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 25 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 26: Read-Only Bit Masks

    1 = Failure Reserved Digital input 1 0 = Off 1 = On Digital input 2 0 = Off 1 = On Page 26 of 44 IM–111 User manual MAN-EN-DE-IM111-01.00_16 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 27: Read-Write Bit Masks

    0–20 mA 4–20 mA 0–100 mV 0–5 V 0–10 V Logic No input Frequency Temperature unit – address 40013 Celsius degrees IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 27 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...
  • Page 28 4 – 20 mA or 2 – 10 V retransmission based on the input engineering range 4 – 20 mA or 2 – 10 V retransmission based on lower and upper limits Page 28 of 44 IM–111 User manual MAN-EN-DE-IM111-01.00_16 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 29: Electrical Installation

    (pins 8 and 9) and this connection must be used as the positive terminal. IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 29 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 30: Input Signal Connection

    (same connection for signal and power) up to 20 mA. Positive signal is connected to pin 21 and negative signal to pin 21. Page 30 of 44 IM–111 User manual MAN-EN-DE-IM111-01.00_16 All rights reserved to DLG Automação Industrial © 2011 – 2016...
  • Page 31 Connection for J, K, T, R, S, E, N and B thermocouples. Positive terminal connected to pin 23 and negative terminal to pin 22. IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 31 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...
  • Page 32 Maximum supported voltage is 10 V. Positive terminal is connected to pin 23 and the negative terminal to pin 22. Inverted polarity is not supported. Page 32 of 44 IM–111 User manual MAN-EN-DE-IM111-01.00_16 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 33: Other Connections

    1 and 2. DC power supply 18 to 30 Vdc must be connected between pins 1 (-) and 2 (+). IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 33 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...
  • Page 34 Vdc auxiliary power supply for loads up to 50 mA. The power supply connectors are pin 19 (+) and 20 (-). PS.: Available only on IM-111/DC. Page 34 of 44 IM–111 User manual MAN-EN-DE-IM111-01.00_16 All rights reserved to DLG Automação Industrial © 2011 – 2016...
  • Page 35 1200 meters. 0/4 ~ 20mA retransmission 0/4 ~ 20mA signal retransmission between pins 7 and 8. IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 35 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...
  • Page 36 (input 1 is on pin 16, input 2 on pin 17) are driven by grounding them to the external power supply ground. Page 36 of 44 IM–111 User manual MAN-EN-DE-IM111-01.00_16 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 37: Mechanical Installation

    IM–111 MODBUS UNIVERSAL INDICATOR 11 - MECHANICAL INSTALLATION 11.1 - REQUIRED PANEL SPACE 90 mm IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 37 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 38: Recommendations

    “needle” type or “eyelet” type terminal for cables of 0,5 ~ 1,5mm The IM–111 is designed to be frontal panel mounted, free of humidity or dust. Page 38 of 44 IM–111 User manual MAN-EN-DE-IM111-01.00_16 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 39: Rs-485 Cabling

    Cable length must be specified according to required bandwidth and depends on the cable electrical properties (impedance and signal rise time). Maximum distance is 1200 meters with 9600 bps bandwidth. IM–111 User manual MAN-EN-DE-IM111-01.00_16 Page 39 of 44 All rights reserved to DLG Automação Industrial © 2011 – 2016...

  • Page 40: Warranty

    7. DLG ensures full operation of the equipment described herein and all existing operations. Page 40 of 44 IM–111 User manual...
  • Page 41 Notes...
  • Page 44 Rua José Batista Soares, 53 Distrito Industrial – 14176-119 Sertãozinho – São Paulo – Brasil DLG reserves the right to change this manual contents without notice in Fone: +55 (16) 3513-7400 order to keep it updated with potential product developments.
