Stuart SRC5 Instruction Manual

Recirculating cooler

Advertisement

W A R
N I N G
F ir e
U s e
h a z a
e x tr e
r d
w h e n
m e c
u s in g
a u ti o
fl a m
n
m a b
le a n
ig n it
a b le
d
s o lv e
C A U T
n t.
I O N
D o n
o t to
u c h th
c o o li
n g fi
e
b a r e
n w it
h y o u
h a n d
It m a
s .
r
y c u t
y o u r
C A U T
fi n g e
rs .
I O N
H o t s
T o u c
u r fa c
h in g
e
c o o li
th e
n g fi
c a u s
n s m
e b u r
a y
n s .

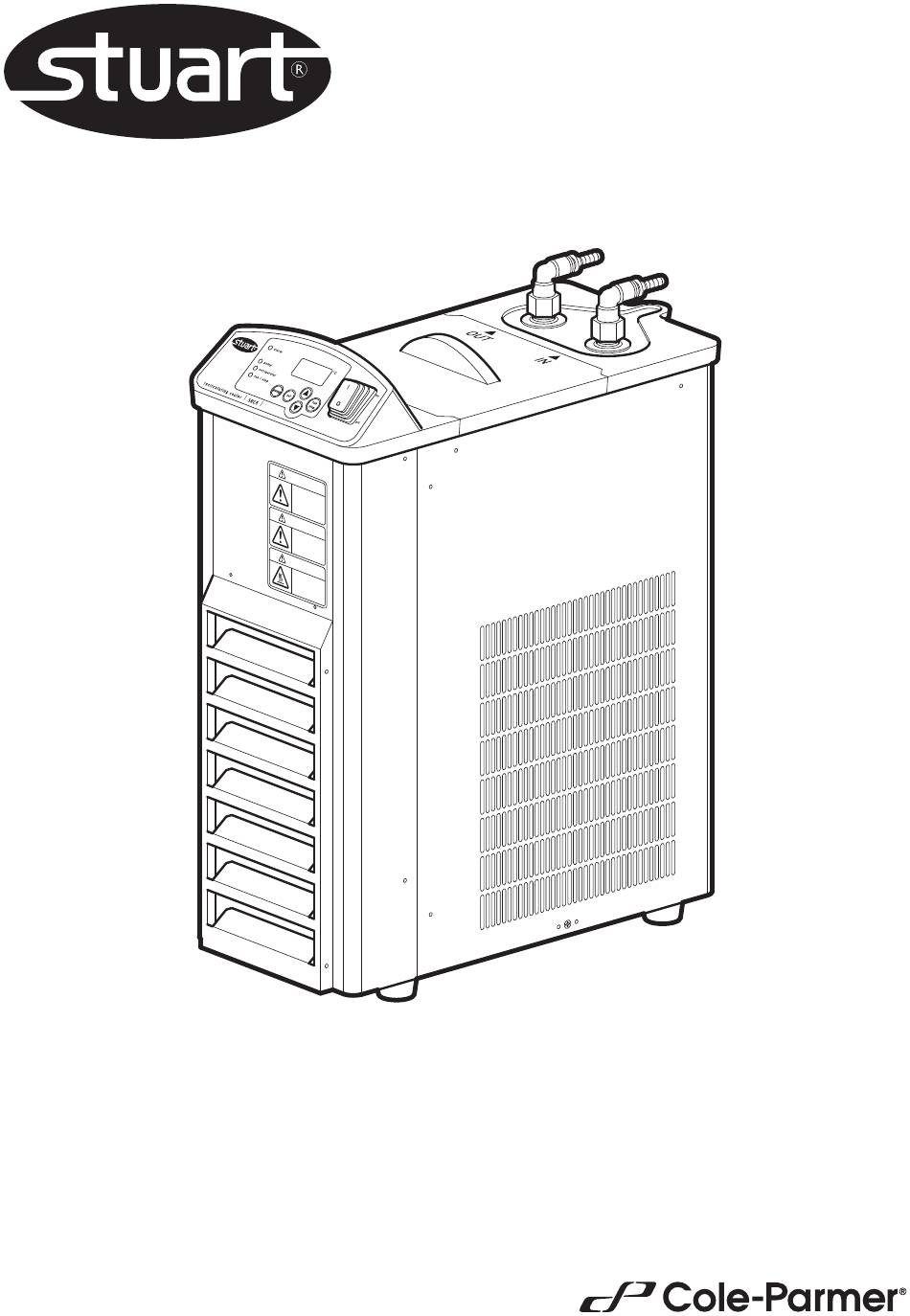

Instruction Manual
STU0004 / Version 1.0
Recirculating Cooler
SRC5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRC5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stuart SRC5

  • Page 1 Recirculating Cooler SRC5 W A R N I N G F ir e U s e h a z a e x tr e w h e n m e c u s in g a u ti o fl a m...
  • Page 2: Section 1 - Introduction

    The SRC5 provides a powerful cooler with a compact footprint suitable for mounting on or under a bench. The LED digital display clearly shows the current temperature of the cooling medium to ±2°C, while the set temperature is revealed by a one button press.
  • Page 3 Before connection please ensure that the line supply corresponds to the power requirements below: Model Power Supply requirements SRC5 450 W 230 V ~ 50Hz The equipment is provided with a power supply unit and three power cables consisting of a UK 3-pin and a “Schuko”...
  • Page 4: Section 2 - Specification

    Section 2 - Specification NOTE: Results can vary depending on environmental conditions, power supply voltage, solvent type and hose specification etc. Cooling capability curve (Reference data) Condition • Supply voltage : AC220V, 50Hz Room temp. 20ºC • Circulation rate : max. Room temp.
  • Page 5: Section 3 - Installation

    SRC5 Bath cover UK power lead Euro power lead Instruction manual Warranty card Spare fuses x2...
  • Page 6: Installation Conditions

    Installation Conditions This equipment is designed to operate safely under the following conditions: For indoor use only ❖ Use in a well ventilated area ❖ Ambient temperature range 5°C to 35°C (41°F to 95°F) ❖ Altitude to 2000m (6500 ft) ❖...
  • Page 7 Overview Main View Control panel Power switch W A R Ventilation cover N I N G F ir e U se h a za ex tr em w he n e ca ut us in g io n fl am m ab ig ni ta le an...
  • Page 8 Control Panel Alarm light - Comes on when an abnormal condition has been detected. Pump light - Comes on when the pump is ON. Refrigerator light - Comes on when the refigerator is ON. Run/Stop light - Comes on when temperature control is started. Pump - Use to switch the pump ON/OFF.
  • Page 9 Assembly WARNING: DO NOT use the refrigerated cooler with distilled or deionised water. Use tap water or softened tap water. Using distilled or deionised water could corrode the cooling coil or circulation pump. Use anti-freeze if you intend you use the equipment at temperatures of +7ºC and lower. Only use tap water or softened tap to water to dilute the anti-freeze DO NOT use distilled or deionised water.
  • Page 10: Drain Plug

    Push the hoses over the Water in and Water out one touch connectors and secure with a suitable clip. Push the Water in and Water out one touch connectors into the correct 90º elbows. 3.4.3 Step 3 Ensure that the Drain plug is fitted correctly to the drain hose before you start to fill the circulating bath. Drain plug Remove the bath cover and fill the circulating bath with your chosen liquid to a maximum of 2.7 litres.
  • Page 11: Section 4 - Operation

    Section 4 - Operation Power outage recovery is ON when shipped. Switch the equipment ON. The display will show and after a few seconds the current temperature of the circluating bath will be shown. NOTE: Before using check all connections are tight. Setting the temperature NOTE: The set temperature can be changed at anytime during operation.
  • Page 12: Starting Operation

    Starting operation NOTE: The refrigerator has a protective timer function which means the refrigerator will not start until 70-90 seconds after the unit has been turned ON. a. Press . The circulation pump will start and the LED will illuminate. b.
  • Page 13: Section 5 - Accessories And Spare Parts

    Replace the Tray Drain plug. Section 5 - Accessories and Spare Parts Optional Accessories Please visit www.stuart-equipment.com for a full list of available accessories. Spare Parts Please contact your local sales specialist or email cpspares@coleparmer.com to enquire about available spares.
  • Page 14: Section 6 - Maintenance, Servicing And Cleaning

    Section 6 - Maintenance, Servicing and Cleaning WARNING: Before attempting any maintenance, servicing or cleaning, ensure that the equipment has been allowed to cool down. WARNING: Ensure the equipment is disconnected from the power supply before attempting any maintenance, servicing or cleaning. Routine Maintenance Ensure the external surfaces of the unit are clean and free from dust.
  • Page 15 Cleaning the Air Filter CAUTION: Take care when removing the Air filter as the Cooling fins have sharp edges. Pull the Ventilation cover towards you. Remove the Air filter and wash with water and mild detergent. Ensure the Air filter is dry before re-fitting. Air filter Cooling fins Ventilation cover...
  • Page 16: Warranty

    Staffordshire, ST15 0SA, United Kingdom Email: cpservice@coleparmer.com Tel: +44 (0)1785 810475 Web: www.stuart-equipment.com Section 7 - Environmental Protection Packaging Material Packaging materials have been carefully selected so they can be sorted for recycling. Waste Electrical and Electronic Equipment Directive (WEEE) At the end of your product and accessories life, it must not be discarded as domestic waste.
  • Page 17: Section 8 - Technical Specification

    Section 8 - Technical Specification General Specification Refrigerator overload relay Refrigerator protection timer Safety functions Fuse Self diagnostics function Bath cover Bath material SUS304 Approx. 3.2 litres Bath capacity Maximum. 2.7 litres Size of bath (internal) W130 x D230 x H115mm External dimensions W205 x D445 x H545mm Pump rate...
  • Page 18 Weights and Dimensions 225mm 444mm Fire hazard Weight 28kg...
  • Page 19: Section 9 - Trouble Shooting

    Section 9 - Trouble Shooting Problem Cause Solution Temperature sensor failure alarm. Equipment has Temperature sensor is disconnected or Stop operation and contact a local service broken. representative. stopped and is displayed and LED is on. Refrigeration unit Set the ambient temperature at 35ºC or Ambient temperature has exceeded 35ºC.
  • Page 20 Nothing is displayed Replace fuse (see section ??). If problem when power is turned The inlet fuse has blown. persists stop operation and contact a local service representative. Mains power is not connected properly. Check power lead is connected properly. Power is not supplied.
  • Page 23: Eu Declaration Of Conformity

    Signed for and on behalf of the above manufacturer Additional Information Year of CE Marking: September 2018 Place of Issue Stone, Staffordshire, UK Date of Issue 4 September 2018 Authorised Representative Neil Pomeroy Title Technical Director Signature Declaration of Conformity is also available to view online at www.stuart-equipment.com...
  • Page 24 Cole-Parmer Ltd - UK Beacon Road, Stone, Staffordshire, ST15 0SA, United Kingdom Tel: +44 (0)1785 812121 Email: cpinfo@coleparmer.com Web: www.stuart-equipment.com...
