Summary of Contents for Purus PUR400PH-2
- Page 1 Digital Panel Heater PUR400PH-2 PUR1000PH-2 PUR1500PH-2 PUR2000PH-2 User Manual— Please read and retain for future reference...
- Page 2 Thank you for choosing our PURUS Digital Panel Heater. Please be sure to read this users’ manual carefully before using the unit. If you should encounter any problems, please contact a qualified service technician for help. Contents Parts List Technical Information...
- Page 3 Exploded Assembly Diagram NOTICE: Actual product may vary from pictures shown.
-
Page 4: Technical Information
4. Basement 5. Caster 6. Hanging Hook 7. Back Panel Fig. 1 Technical Information Digital Panel Heater Model: PUR400PH-2 Voltage: 220V-240V~ /50HZ Rated Power: 400W Heat Setting: 200W/ 400W IP rate: IP24 Model: PUR1000PH-2 Voltage: 220V-240V~ /50HZ Rated Power: 1000W... - Page 5 IP rate: IP24 Model: PUR2000PH-2 Voltage: 220V-240V~ /50HZ Rated Power: 2000W Heat Setting: 1000W/ 2000W IP rate: IP24 IMPORTANT Read these instructions fully before using the Panel heater. Retain these instructions for future reference. Important Safeguard Instructions 1. The product is for household use only 2.
-
Page 6: Safety Instructions
Safety Instructions 1. Check whether or not the local power supply matches the appliance electric rating printed on the label before operation. 2. Children should be supervised to ensure that they do not play with the appliance. If the appliance is damaged, do not use it. 3. -
Page 7: Before Use
25. WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. Before use 1. Remove the heater carefully from the packaging. 2. - Page 8 Fig. 3 Fig. 4 Fig. 5...
-
Page 9: Control Panel
Fig. 6 Using your Heater 1. Place the heater on flat stable surface or mount to the wall as previously shown. 2. Make sure the power switch is in the off position. 3. Plug the heater in. 4. If the appliance is not going to be used for a long time, switch it off with power switch and unplug the heater. - Page 10 Display Screen Days of week Comfort Timer Mode Mode Economy Program Mode Display Frost-free Heating Mode Clock Temperature Display Lock Hour Minute Heating Display Fig. 8 First Use Warning! Before using the equipment for the first time, check that the voltage supply is the same as the voltage details set out on the rating label.
- Page 11 the child lock function of the heater is in non-locked or locked status. Please read the instructions carefully and then continue to operate the heater. “ ” Switch/ Child Lock Button 1. If the lock status displays symbol, press the “ ”...
- Page 12 mode starts automatically as the default setting. 3. Under the economy mode, press “ ” button once and the symbol will illuminate, Comfort mode starts. 4. Under the Comfort mode press “ ” button, symbol will illuminate, Frost-free mode starts. Note：...
- Page 13 2. Once the correct day is selected press “ ” button twice for 3 seconds, the hour number will start to flash. Press the “ ” and “ ” button to set current hour. 3. Now press “ ” button three times for 3 seconds, the minute number will flash, press the “...
- Page 14 screen. Press “ ” and “ ” button to set the time for programming. 3. After setting the time, press the “ ” button to select the type of heating mode you require for that selected time. You can choose one of four modes: Comfort mode Economy mode , Frost-free mode and Standby mode.
- Page 15 From Monday to Friday Weekend Fig. 12 --- P2 Mode From Monday to Friday Weekend Fig. 13 --- P3 Mode Heating Modes Explained 1. Comfort mode: When the room temperature reaches 2 degrees lower than the pre-set temperature on the heater, the heating will switch on. The icon will display on screen.
- Page 16 Economy mode: When the room temperature reaches 4 degrees lower than the pre-set temperature on the heater, the heating will switch on. The icon will display on screen. Once the room temperature reaches 4 degrees above pre-set temperature the heating switches off. The icon will now cease to display.
-
Page 17: Declaration Of Conformity
Declaration of Conformity The declaration is to certify that it conforms to CE, EMC, LVD and RoHS directives: EN55014-1/A2: 2011 EN55014-2/A2: 2008 EN61000-3-2: 2014 EN61000-3-3: 2013 All provisions of Annex 1 of Council Directive 2014/30/EU – EMC directive EN60335-1: 2014 EN60335-2-30/A11: 2012 EN62233: 2008 All provisions of Annex 1 of Council Directive 2014/35/EU –... - Page 18 24 Months Limited Warranty If within 24 months from the date of purchase you experience any problems with your product, please return the product to its distributor/dealer for repair or replacement. This warranty DOES NOT COVER normal wear, or any damage as a result of accidents, misuse, abuse or negligence.
- Page 19 Contact us at www.futuradirect.co.uk/contact Register at www. .co.uk/ guarantee We FUTURA Direct Ltd, England DN6 7AY declare that the panel heater is exclusively manufactured for Futura Direct Ltd and has been manufactured according to our full quality assurance procedures.
Need help?
Do you have a question about the PUR400PH-2 and is the answer not in the manual?
Questions and answers

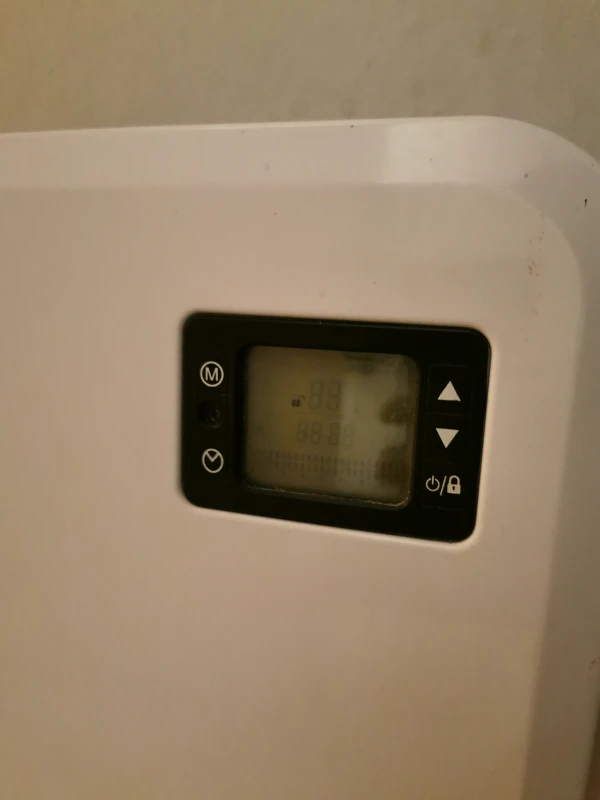

Panel not working
The context does not provide specific troubleshooting steps for a Purus PUR400PH-2 panel heater that is not working. However, general recommended actions can include:
1. Ensure the heater is plugged in properly.
2. Check if the power switch is turned on.
3. Verify that the thermostat is set correctly.
4. Make sure the timer is not preventing operation.
5. Inspect for any visible damage or obstructions.
If problems continue, repairs or parts replacement should only be performed by certified or licensed technicians.
This answer is automatically generated
