Summary of Contents for Hydromotion VTB1-2X

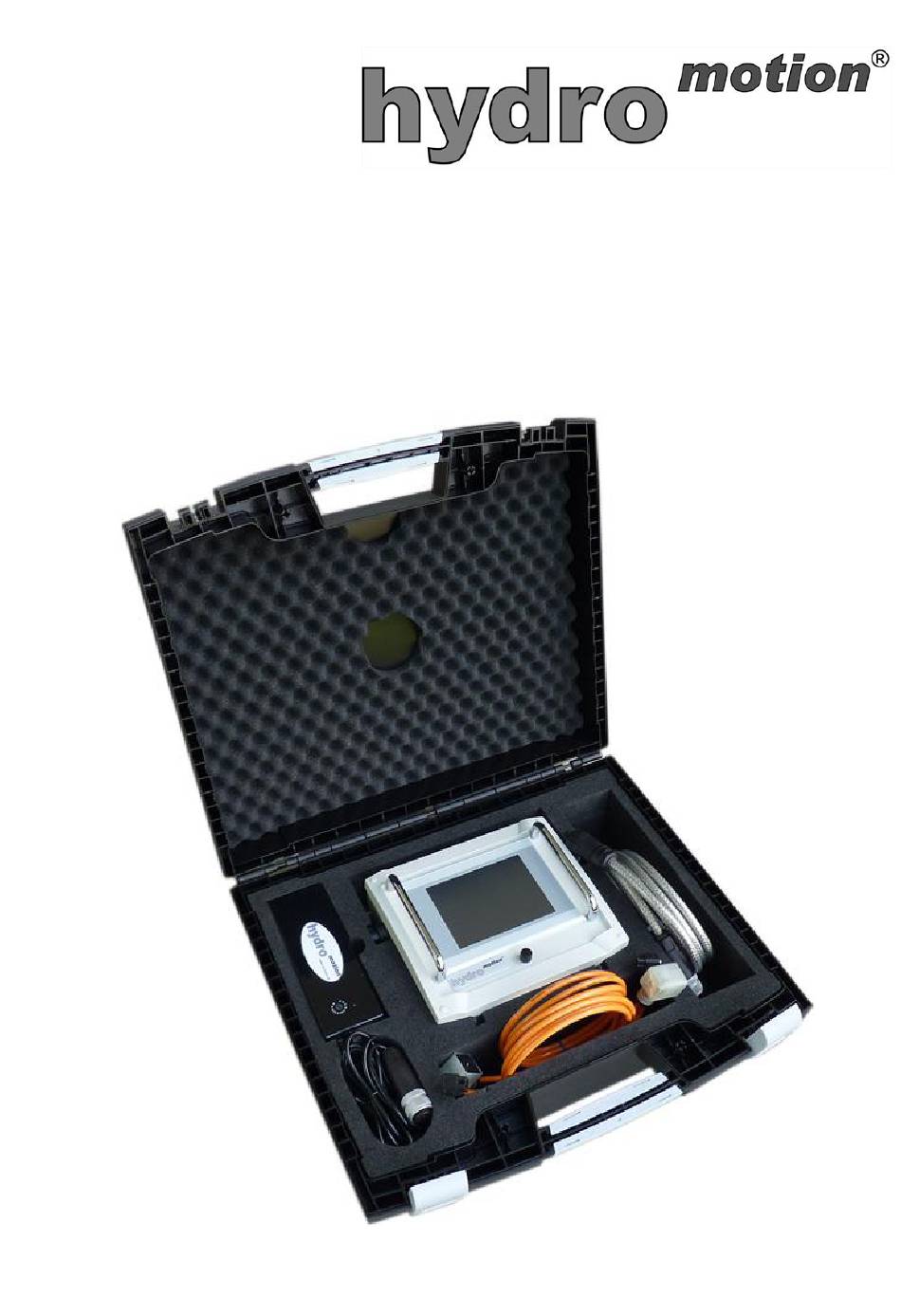

- Page 1 Instruction Manual for the laboratory valve testing device VTB1-2X version: 15.07.2018...
-
Page 2: Table Of Contents
--Selection: MD1 / MD2 Measuring channels-- --Selection: Calibration-- 12. Menu "diagnosis 1" ............Page 25 13. Menu "diagnosis 2" ............Page 29 14. Valve types ..............Page 30 VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 2 of 36 www.hydromotion.de... -
Page 3: Copyright Declaration
Alternatively, each device to be disposed can be returned to our company address. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 3 of 36 www.hydromotion.de... -
Page 4: Safety Instructions
- The functions of the hydraulic valve to be checked or the hydraulic drives and the testing device VTB1-2X must be clearly familiar. - The use of the testing device VTB1-2X on a running machine is only permitted if the testing person is aware of the risks of testing. - Page 5 LED "OUT" on the connecting sides of the device. The testing device always starts in the diagnostic menu [diag. 1]. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 5 of 36 www.hydromotion.de...
-
Page 6: Overview: Data And Technical Functions
Two-channel, graphical trend display with USB memory function for current valve setpoint and actual value. Virtual operation with smart device, possible via optionally built-in WLAN router. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 6 of 36 www.hydromotion.de... -
Page 7: Introduction
Each function has an additional help text displayed during operation. For this, please press the small buttons with the question mark. To return from the current VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 7 of 36 www.hydromotion.de... - Page 8 Example for help text The graphical display always starts with "diagnosis menu 1" after a completed phase of initialization. Diagnosis menu 1 VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 8 of 36 www.hydromotion.de...
-
Page 9: Electrical Pin Assignment (According Din En 175201-804)
- With a valve configuration without enable signal, jack C is reference point (0V) of the valve actual value (jack F) and electrically connected to jack B (0V). VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 9 of 36 www.hydromotion.de... - Page 10 1. Jack C = valve enable 24V DC - valves with enable signal 2. Jack C = actual value reference potential 0V - valves without enable signal VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 10 of 36 www.hydromotion.de...
- Page 11 View: Internal control electronics with fuses SI4 and SI3 for the safeguarding of valve enable on the input and output VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 11 of 36 www.hydromotion.de...
-
Page 12: Menu "Settings 1 Of
0V for the feedback signal valve actual value. This means that the 24V enable signal against the reference potential 0V might cause a signal short circuit in case of wrong configuration. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 12 of 36 www.hydromotion.de... -
Page 13: Preselection: Signal Type Valve Actual Value
If the valve testing device is optionally equipped with a WLAN router, this menu additionally displays the SSID with the network-related settings. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 13 of 36 www.hydromotion.de... -
Page 14: Menu "Settings 2 Of
10. Current -15mA .. 0mA .. +15mA with for the hydraulic zero position After a voltage reset, the last setting remains active. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 14 of 36 www.hydromotion.de... - Page 15 - The preselection for valve enable, valve actual value and valve setpoint can only be changed when there is no valve connected on the output (OUT) of the testing device. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 15 of 36 www.hydromotion.de...
-
Page 16: Menu "Settings 3 Of
"Switching together" of the switching outputs A & B can be used for the driving of a shut-off valve with one or two magnets. "Switching individually" allows for operating both switching outputs independently. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 16 of 36 www.hydromotion.de... -
Page 17: Preselection: Help Icon On / Off
If the help texts are not needed, the help icons can be hidden in all menus. After a voltage reset, the last setting remains active. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 17 of 36 www.hydromotion.de... -
Page 18: Menu "Settings 4 Of
With higher step sizes and an adjusted setpoint ramp time from the menu [setting 3] you reach a smooth setpoint transition between the individual rotary encoder steps. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 18 of 36 www.hydromotion.de... - Page 19 With this operating mode the selected valve setpoint in the menu [setting 2] can solely be manipulated via the rotary encoder. After a voltage reset, the last setting remains active. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 19 of 36 www.hydromotion.de...
- Page 20 After a voltage reset, the last setting remains active. By activating the field [open loop oscillation], it is switched over to the configuration menu for the settings of the open loop oscillation. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 20 of 36 www.hydromotion.de...
- Page 21 1 [setting 1] and configuration changes of the "valve setpoints" in menu 2 [setting 2] are not possible when "open loop oscillation" in menu 4 [setting 4] is selected. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 21 of 36 www.hydromotion.de...
- Page 22 Alternatively, you can skip to the corresponding menu via the button [open loop oscill.] on the bottom right if this selection in the menu [setting 4] was activated in advance. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 22 of 36 www.hydromotion.de...
- Page 23 The analog signal resolution of all measurement channels is 10bit (1024 steps). The analog input values are scaled into the desired, physical units by the lower and upper scaling settings. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 23 of 36 www.hydromotion.de...
- Page 24 This menu contains only manufacturer-specific system settings which are not freely accessible for the device user. After pressing this button, a password is requested to enter the menu [calibration]. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 24 of 36 www.hydromotion.de...
-
Page 25: Menu "Diagnosis
On the left side of the display block you get the information which signal source generated the displayed valve setpoint. (Internal setpoint, external setpoint or oscillating setpoint) VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 25 of 36 www.hydromotion.de... - Page 26 When pressing the red button 0%, the internal setpoint is switched back to the hydraulic zero position of the proportional valve. This virtual setpoint value setting is only possible in the mode [internal setpoint]. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 26 of 36 www.hydromotion.de...
- Page 27 This function is destined for switching valves that operate with one or two simultaneously switched solenoids. When preselecting [switch A & B individually] two buttons appear which can drive both switching outputs A & B independently. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 27 of 36 www.hydromotion.de...
- Page 28 If the PWM function is enabled in menu [setting 3], only the corresponding solenoid currents are displayed instead of the operating functions for the switching outputs. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 28 of 36 www.hydromotion.de...
-
Page 29: Menu "Diagnosis
Additional buttons and functions are not displayed for reasons of clarity. Depending on the configuration of the valve enable in the menu [setting 1], the button for the enable is optionally displayed. VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 29 of 36 www.hydromotion.de... -
Page 30: Valve Types
4WREF10… Bosch Rexroth (proportional way valve, pilot-operated) 4WRZE10… 4WRKE10… 4WRBKE10… 4WRZEM10… 4WRKE16… 4WRBKE16… 4WRZEM16… 4WRZE16… 4WRZE16… 4WRKE25… 4WRBKE27… 4WRZEM25… 4WRZE32… 4WRKE27… 4WRBKE35… 4WRZE52… 4WRKE32… 4WRKE35… VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 30 of 36 www.hydromotion.de... - Page 31 Bosch Rexroth (proportional pressure relief valves, directly driven): 3DREPE6… Bosch Rexroth (proportional pressure reducing valve, pilot-operated): ZDREE6… (only with suitable adapter) DREE6… (only with suitable adapter) DREE10… DREBE6X… DRE(M)E10… DREBE10Z… DRE(M)E20… DRE/M)E30)… VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 31 of 36 www.hydromotion.de...
- Page 32 3WRCE80… (only with supply voltage UB=24V) 3WRCE100… (only with supply voltage UB=24V) 3WRCE125… (only with supply voltage UB=24V) 3WRCE160… (only with supply voltage UB=24V) 3WRCBEE25… 3WRCBEE32… 3WRCBEE50… VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 32 of 36 www.hydromotion.de...
- Page 33 KBX( C ) G-8 EATON Vickers (poportional way valve): KBFDG5V-5 KBD/T-3 KBFD/TG4V-3 KBHDG5V-7 KBFDG5V-7 KBDG5V5 KBSDG4V-3 KBHDG5V-8 KBFDG5V-8 KBDG5V7 KBFD/TG4V-5 KBHDG5V-10 KBFDG5V-10 KBDG5V8 KBSDG4V-5 KBDG5V10 KBHDG5V-5 VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 33 of 36 www.hydromotion.de...
- Page 34 D664… D665… Moog (pilot-operated servo valve with optional field bus interface): D671… D672… D673… D674… D675… Moog (pilot-operated proportional valve): D684… D681… D682… D685… D683… VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 34 of 36 www.hydromotion.de...
- Page 35 R4V… R6V… RE*E*T… Parker Hannifin (proportional throttle valve): TDP… TEP… TPQ… Tiefenbach: Directly driven 2/2-way seat valve NG (NW)10 EMG Automation: Servo valve NG6 SV1-06...E VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 35 of 36 www.hydromotion.de...
- Page 36 HVM 188 (NG25) HVM 250 (NG25) With special hole pattern HVM 106 HVM 107 Yuken (proportional way valve): ELDFG-01EH ELDFG-03EH Yuken (servo valve): LSVHG-03EH LSVHG-04EH LSVHG-06EH VTB1-2X Valve testing device for prop.valves with integr. electronics – Page 36 of 36 www.hydromotion.de...
