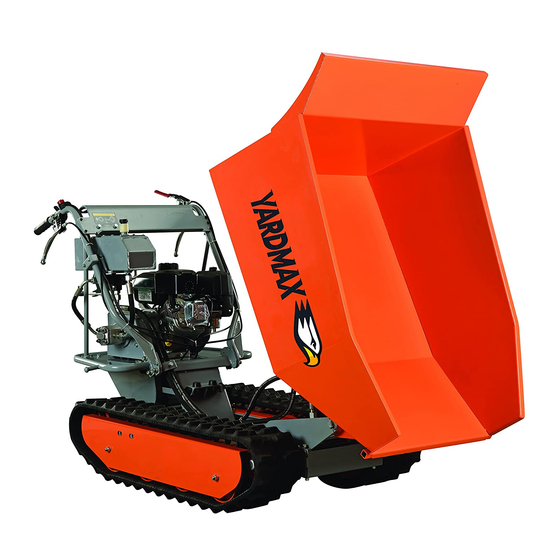

Power trackbarrow with hydraulic assist

Advertisement

Power Trackbarrow
with Hydraulic Assist
Operator's Manual
MODEL NUMBER
YD8105
SERIAL NUMBER
PURCHASE DATE
Both model number and serial
number may be found on the
main label.
(See Page 2, Figure 1)
You should record both of them
in a safe place for future use.
READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE
FOR YOUR SAFETY
Save This Manual for Future Reference
Tame the Great Outdoors
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YD8105 and is the answer not in the manual?

Questions and answers

Summary of Contents for YARDMAX YD8105

  • Page 1 Save This Manual for Future Reference Power Trackbarrow with Hydraulic Assist Operator’s Manual MODEL NUMBER YD8105 SERIAL NUMBER PURCHASE DATE Both model number and serial number may be found on the main label. (See Page 2, Figure 1) You should record both of them in a safe place for future use.
  • Page 2: Table Of Contents

    Up for the job? YARDMAX is. When looking for outdoor power equipment (OPE) to get the job done right, at the right price, YARDMAX delivers the perfect combination of performance and practicality. YARDMAX has a solution that’s right for you.
  • Page 3 California to cause cancer and birth defects or other reproductive harm. For more information, go to DISCLAIMER www.P65Warnings.ca.gov. YARDMAX reserves the right to discontinue, change, and improve its products at any time without notice or obligation to the purchaser. The descriptions and ENVIRONMENTAL specifications contained in this manual were in effect at printing.
  • Page 4: Specifications

    SUPPORT Have questions about your YARDMAX equipment? Call us at 844-YARDMAX, email us at support@yardmax.com, or contact us via your favorite social media site. SPECIFICATIONS Model number YD8105 Engine briggs & Stratton Displacement 208 cc Start Type Recoil load Capacity...
  • Page 5: Symbols

    Power Trackbarrow Operator’s Manual » SYMBOLS The rating plate on your machine may show symbols. These represent important information about the product or instructions on its use. Keep your hands clear from all rotating Read these instructions carefully. parts. Wear eye protection. Never start or run the engine inside a closed area.
  • Page 6: Safety

    SAFETY GENERAL SAFETY RULES Stay alert, watch what you are doing, and use common sense UNDERSTAND YOUR MACHINE when operating the machine. Read this manual and labels affixed to the machine to understand its limitations and potential hazards. Do not overreach. Do not operate the machine while barefoot or when wearing sandals or similar lightweight footwear.
  • Page 7 Power Trackbarrow Operator’s Manual » Do not tamper with the engine in an effort to get it to run at loosen the fuel tank cap slowly to relieve any pressure in the tank. higher speeds. The maximum engine speed is preset by the Never overfill the fuel tank.
  • Page 8: Unpacking The Container

    UnPACKInG THE COnTAInER Use the screwdriver and hammer to open all the side locks. (See Figure 1a) Figure 1a Remove all the plywood plates (Figure 1b), and remove all the loose parts on the bottom pallets. Figure 1b Unpacking the Container YD8105PM04 - 1804...
  • Page 9: Contents Supplied

    Power Trackbarrow Operator’s Manual » COnTEnTS SUPPlIED Your YARDMAX power trackbarrow comes fully assembled, and the package contains the following: Premium 4-Cycle NET CONTENTS 35 OZ (1.05 L) 1. Machine 3. Operator’s Manual & Engine Manual 2. Engine Oil 4. Tools for Spark Plug Assembly...
  • Page 10: Assembly Of Optional Accessories

    ASSEMblY OF OPTIOnAl ACCESSORIES This trackbarrow was completely assembled at the factory. To assemble the optional plow blade follow the below instructions. PLOW BLADE (OPTIONAL) 3. Insert the shorter control lever into the longer lever. Align holes and fasten with M8×40 hex bolt, washers and nut. 1.
  • Page 11 Power Trackbarrow Operator’s Manual » 7. Install the mounting bracket base with two M10×30 bolts 8. Install the already assembled plow blade to the trackbarrow and washers. (See Figure 2e) as shown. (See Figure 2f) M10×30 (×2) Mounting Bracket Base M10×25 M12×40 (×2)
  • Page 12: Know Your Machine

    KnOW YOUR MACHInE FEATURES AND CONTROLS Engine On/Off Switch Throttle Control Right Steering Lever Hopper Clutch Control Lever Left Steering Lever Hydraulic Tipping Handle Gear Selection Lever Hydraulic Power Pack Gearbox Track Recoil Starter Handle Choke Control Fuel Shut-Off Valve Know Your Machine YD8105PM04 - 1804...
  • Page 13 Power Trackbarrow Operator’s Manual » GEAR SELECTION LEVER The gear selection lever has 4 positions: 3 forward speeds and 1 reverse. To change speeds, move the speed shift lever to the desired position. The lever locks in a notch at each speed selection. Hydraulic Tipping Handle Always release the clutch control lever before changing speeds.
  • Page 14: Operation

    THROTTLE CONTROL The throttle control regulates the speed of the engine, Never use choke to stop engine. and moves between FAST , SlOW , and STOP positions. The throttle control will shut off the engine when it is CLUTCH CONTROL LEVER moved to the STOP position.
  • Page 15 Power Trackbarrow Operator’s Manual » STARTING ENGINE which makes steering very easy. To turn right or left, simply pull the corresponding right or left steering lever. 1. Move the engine switch to the The sensitivity of the steering increases in proportion to the On position.
  • Page 16: Maintenance

    MAInTEnAnCE Maintaining your YARDMAX power trackbarrow will ensure long 1. loosen the jam nut by turning it counter clockwise with life to the machine and its components. 10mm wrench. (see Figure 5, Illustration 1) 2. Tighten or loosen the cable by turning the cable...
  • Page 17 Power Trackbarrow Operator’s Manual » REPLACING DRIVE BELT × 2 Adjustment Remove three belt covers as shown. (See Figure 7a) Jam Nut M6×12 (×4) Jam Nut Lock Nut Lock Nut Adjustment Nut M6×12 (×2) Jam Nut M6×12 (×2) M6×12 (×2) Lock Nut Belt Cover Figure 6a...
  • Page 18 HYDRAULIC OIL Unscrew the oil drain plug to release the oil into the pan. Hydraulic Power Pack Drive Belt Oil Drain M10×25 (×3) Figure 7c LUBRICATION The gearbox is pre-lubricated and sealed at the Figure 9a factory. no need to lubricate until 50 hours use. After first 50 hours use, change all the transmission Remove the oil dipstick and add the oil.
  • Page 19 Power Trackbarrow Operator’s Manual » TIGHTENING TRACKS With use, tracks tend to loosen. When operating with loose tracks, Steering Wheel they tend to slip over the driving wheel causing it to jump its housing, thus damaging wear to the housing. To check track tightness, proceed as follows.
  • Page 20 3. Remove the three M8×16 bolts and washers that fix the track 6. Remove the M10×60 bolt, washers and nut from the driving protection guard. (See Figure 11b) wheel. (See Figure 11e) M10 × 60 (×1) M8 × 16 (×3) Driving Wheel Figure 11b 4.
  • Page 21: Storage

    Power Trackbarrow Operator’s Manual » STORAGE If the power trackbarrow will not be used for a period longer than Do not use strong detergents or petroleum based 30 days, follow the steps below to prepare your unit for storage. cleaners when cleaning plastic parts. Chemicals can 1.
  • Page 22: Troubleshooting

    TROUblESHOOTInG Problem Cause Remedy 1. Attach spark plug wire securely to spark plug 1. Spark plug wire is disconnected 2. Fill with clean, fresh gasoline 2. Out of fuel or stale fuel 3. Engine and Fuel valve must be in On 3.
  • Page 23: Parts Diagram

    Power Trackbarrow Operator’s Manual » PARTS DIAGRAM Parts Diagram YD8105PM04 - 1804...
  • Page 24 PARTS LIST Description Description Description bend Plate 16 Screw M6×16 31 Soleplate (R) Washer ø6 17 left Handle Frame Assembly 1 32 bolt M6×12 Spring washer 6 18 Clutch Control lever 33-1 Small belt Pulley Cover 1 nut M6 19 Clutch Control lever Cable 34 Discontinued Handle sleeve 20 Soleplate (l)
  • Page 25: Parts List

    Power Trackbarrow Operator’s Manual » PARTS LIST Description Description Description 83 φ47 Axle Head Cover (Support Wheel) 46 brake Cable 120-1 Gear 47 bolt 5/16-24×20 84 Track 180×60 121 bearing 6302 48 Screw M10×70 85 Two-head Stud 122 Gearshift Fork Guide Pin 49 lever 86 Guard Plate (l) 123 Small spring...
  • Page 26: Yd8105Pm04

    Description Description Description 157 Washer Groupware 14 189 Tank Fixing bracket 221 Washer 20 158 Gear box Case Paper Spacer 190 Discontinued 222 Pipe Plug 19×19 159 Output Shaft 191 Discontinued 223 Sponge Gasket 160 Gear II-1 192 Discontinued 224 Washer Groupware 6 161 bush 2 193 Discontinued 225 locating bush...
  • Page 27 Power Trackbarrow Operator’s Manual » Plow Blade (Optional) Description Description Description bolt M8×35 15* Washer12 29* Handle Sleeve 28 Shave Plate 16* Washer12 30* limiter Rod Wedment Rubber Plate 17* Washer10 31* bolt M24×110 blade Weldment 18* Washer10 32* limiter Weldment Washer8 19* Pin 10×60 33* Washer24...
