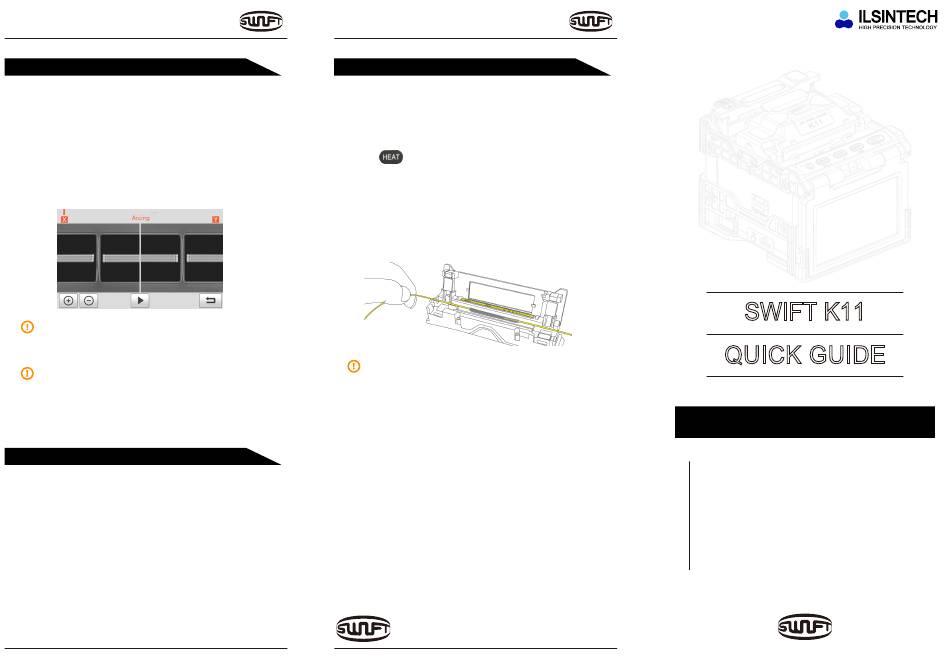

7. Spice

- The splicing process starts as soon as the windshields
cover is closed.
- After completion of the quick alignment, arc discharge
is performed to splice the fibers.
- The estimated loss value is measured after splicing
and displayed on the screen.
The condition of the fiber can be inspected via the image
processing system in the Swift K11. However,
the visual inspection is necessary to ensure better splice result.
To reduce the splice time, the function of pause1 & pause2 is
disabled automatically in quick mode operation.

8. Removing the spliced fiber

- Open the sleeve heater cover and the windshield cover.
- Open the fiber clamp
- Remove the fiber from the Swift K11 to be carefully.
W W W . I L S I N T E C H . C O M

9. Heating the sleeve

- Move the center of sleeve to the splice point.
- Put the sleeve to the center of the sleeve heater.
- Apply tension to the fiber downward so that
the sleeve heater cover is closed -automatically.
- Press
to start sleeve heating.
- Open the heater cover and remove the fiber when sleeve
heating is completed.
- Finally, check to ensure there is no bubble, fragments or dust
in the sleeve.
Do not touch the sleeve and heater part immediately after heating.
The hot surface may cause skin burn
Copyright ⓒ 2016 ILSINTECH Co., Ltd. All rights reserved.
SWIFT K11
QUICK GUIDE
Read this Quick mode guide carefully
before running the Swift K11
3. Cleaning the fiber & Inserting the fiber into the sleeve
4. Stripping the fiber & Cleaning the fiber
7. Spice
8. Removing the spliced fiber
9. Heating the sleeve
WWW.ILSINTECH.COM
