Summary of Contents for Maxima TEKNA

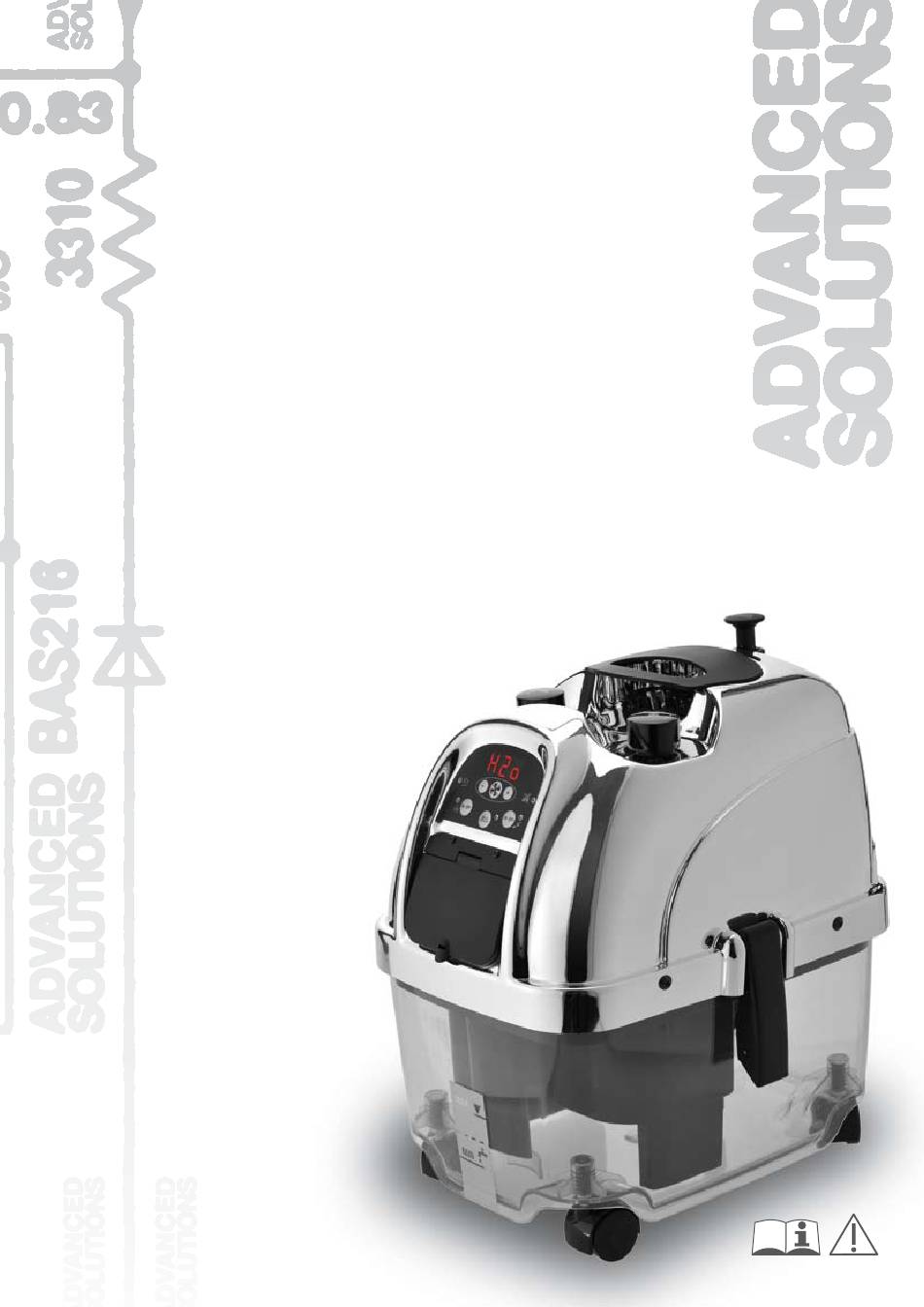

  • Page 1 TEKNA MANUALE D’USO USE MANUAL MANUEL D’EMPLOI GEBRAUCHSHANDBUCH MANUAL DE USO...

  • Page 2: Table Of Contents

    GENERAL CONTENTS INTRODUCTION pag. SAFETY RULES AND CAUTIONS pag. DESCRIPTION OF THE MACHINE pag. MACHINE OPERATIONS page STep: TaNK FILLINg page STep: LOWeR DRUM FILLINg page STep: TURNINg ON page STep: HOSe CONNeCTION page STep: aCCeSSORY STaRTINg page ACCESSORIES EQUIPPED WITH THE MACHINE page HaNDLe WITH HOSe page...
  • Page 3 INTRODUCTION We THaNK YOU FOR CHOOSINg THIS pRODUCT MaDe IN ITaLY. TeKNa IS THe ReSULT OF a CaReFUL SeaRCH CaRRIeD OUT BY peOpLe KeeN ON CLeaN aND INNOVaTION aND IT RepReSeNTS THe NeWeST pRODUCT aMONg THe NeW-geNeRaTION MULTI- FUNCTION DeVICeS.
  • Page 4 SAfETy RULES AND CAUTIONS • Do not fill the boiler tank with detergent or disinfecting products. • Do not turn the device upside down (the solenoid valve may get clogged). • Do not suck flammable materials, explosives, concrete, gypsum or any other material which might create a dangerous mixture.

  • Page 5: Description Of The Machine

    DESCRIPTION Of THE MACHINE FIGURE “A” Front part (fig. a) • 01. Opening to insert the hoses • 02. Control panel • 03. Steam adjusting knob • 04. Water tank plug • 05. Upper cover • 06. Handle • 07. Lower drum •...

  • Page 6: Machine Operations

    MACHINE OPERATION STep: TaNK FILLINg • Remove the plug (fig.1) • Fill the tank with water by using the suitable bottle supplied (fig.2) and by respecting the maximum capacity of the tank (any excessive water will be automatically discharged in the lower drum) •...
  • Page 7 STep: TURNINg ON • Connect the supply cable to a 230V plug provided with earth. Three red lights appear on display “e”. • For the vacuum cleaner function: press push button “B” and ad just the power by means of keys +/-.

  • Page 8: Step: Hose Connection

    STep: HOSe CONNeCTION • To connect the hose, move upwards the door covering the plug (fig.8), insert the plug and close the door by making sure the pawl is into its proper seat (fig.8a). FIG.8 FIG.8a STep: aCCeSSORY STaRTINg • all the accessories carry out the double function of suction and steam.

  • Page 9: Handle With Hose

    ACCESSORIES SUPPLIED WITH THE MACHINE Handle with hose Multifunction brush 2a. Fitting for liquid suction Fitting for carpets Universal fitting 250mm window cleaner 150mm nozzle 4a. Window cleaner fitting Fitting with bristle Steam lance adapter 5a. Bristle brush with 30mm diameter 80mm nozzle Lance extensions...
  • Page 10 1. HaNDLe WITH HOSe a. plug B. Hose C. Handle d. Steam push button e. Suction push button MAINTENANCE OF THE HOSE after every use we recommend rinsing the hose by sucking one/two litres of water from a basin to prevent the dirt from settling on the internal walls.

  • Page 11: 250 Mm. Window Cleaner

    3. 250MM WINDOW CLeaNeR The window cleaner is particularly suitable for the cleaning of windows and mirrors. For the use refer to point 4a. NOTE: in winter the windows must be previously warmed by using the accessory at a distance of 10/15 cm. before starting cleaning 4.

  • Page 12: Motor Support

    ROUTINE MAINTENANCE MOTOR SUppORT (D) It is located under the upper cover. For the cleaning at first we recommend disconnecting the device. Use only a wet cloth. Do not use direct water jets (i.e.: shower, tap, etc.). DO NOT INCLINE THE MACHINE MORE THAN 45°. FILTeR aND SepaRaTOR The plastic filter (C) is fixed on the motor support (D).

  • Page 13: Sponge Filter

    SpONge FILTeR The filter cover (a) is located in the rear part of the machine and can be removed by unscrewing the stop nut (F) (fig.17-18). Once the filter cover has been removed, you can reach the silencer filter (C) which is located in the motor air outlet (D).
  • Page 14 OPTIONAL: 1. IRON • Open the door located in the front part of the machine • Insert the iron pin into the plug of the device • Close the door • adjust the thermostat on the desired position according to the fabrics •...

  • Page 15: Troubleshooting

    TROUBLESHOOTING Sometimes problems arise from causes which can be easily removed by carrying out simple checks. P R O B LE M C AUS E S O LUT I O N · The plastic filter of the · Clean the filter separator is dirty or clogged ·...

  • Page 16: Technical Sheet

    TECHNICAL SHEET • Dimension (cm.) 37 x 30 x 40h • Voltage 220-230 Volt 50-60 Hz • pressure 4 - 4,5 pa • Resistance 1,8 - 2 Kw • Turbine engine 1000 - 1200 Watt • Operation temperature: 5-30°C • Stainless steel boiler •...

  • Page 17: Warranty

    WARRANTY COUPON DATE OF SALE: MODEL: SERIAL NUMBER: DEALER STAMP: CONDITIONS The device sold is guaranteed according to the Law for possible manufacture failures. During this period, the faulty components are replaced free, if the failure is not caused by collisions, falls, fires, short circuits or by an improper use.
