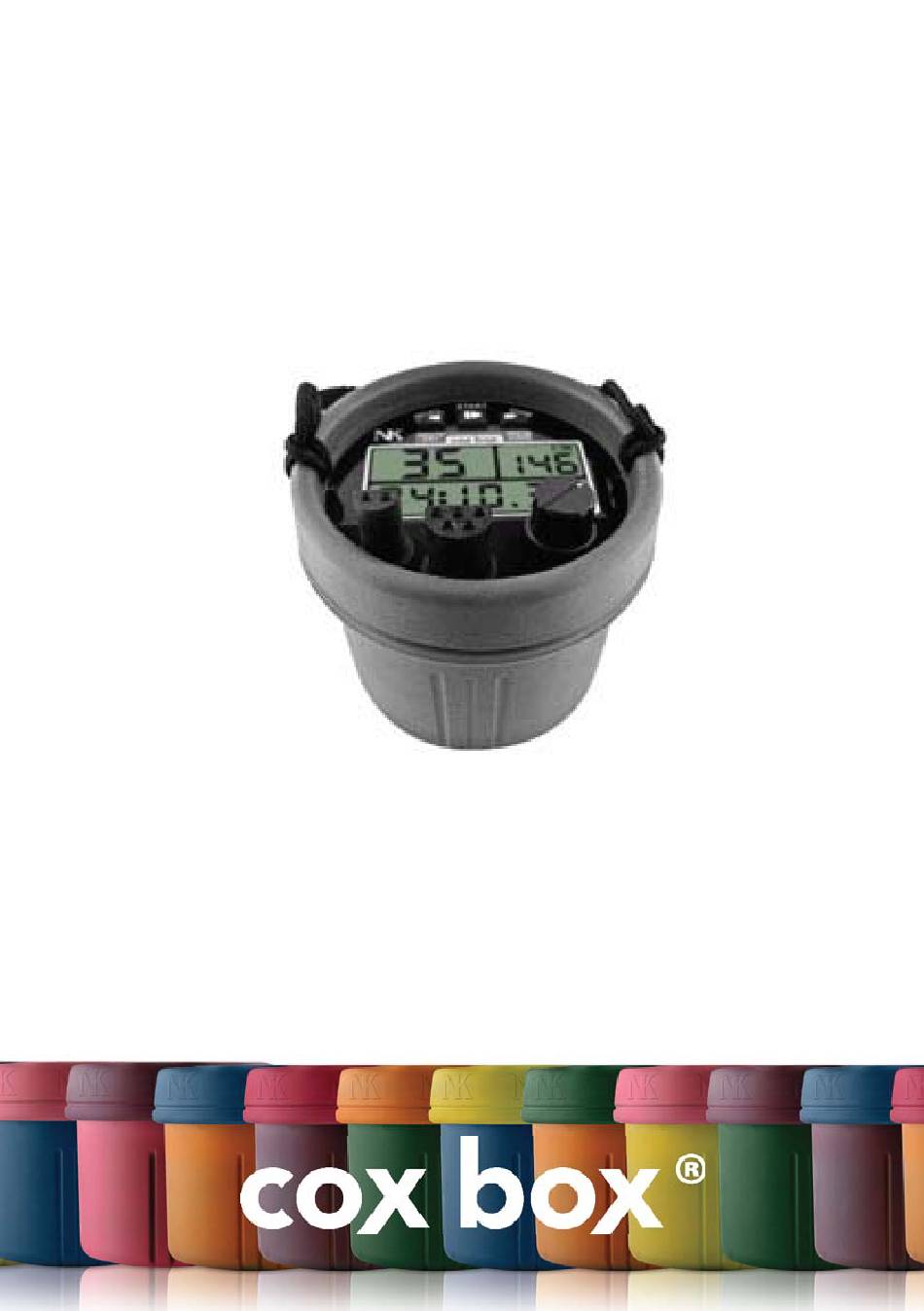

www.nkrowing.com.au
COX-BOX
PLUS
TM
SYSTEM
INSTALLATION, MAINTENANCE AND
TROUBLESHOOTING GUIDE
Thank you for purchasing this NK CoxBox. PLEASE take a moment to review these instructions
before installiation & use. Your CoxBox system should provide you with years of trouble-free service,
but we are always here to help if a problem arises. To order parts or accessories or obtain technical
support, please call 02 6553 2473 You may also e-mail questions to our support representatives at
info@nk.com.au or visit NK online at www.nk.com.au
The Most Relied-Upon
Pocket Weather Instruments
in the World
Making Work & Play
Easier & Safer
1
Advertisement
Table of Contents
Summary of Contents for Nielsen-Kellerman COX-BOX PLUS SYSTEM
- Page 1 www.nkrowing.com.au COX-BOX PLUS SYSTEM INSTALLATION, MAINTENANCE AND TROUBLESHOOTING GUIDE Thank you for purchasing this NK CoxBox. PLEASE take a moment to review these instructions before installiation & use. Your CoxBox system should provide you with years of trouble-free service, but we are always here to help if a problem arises. To order parts or accessories or obtain technical support, please call 02 6553 2473 You may also e-mail questions to our support representatives at info@nk.com.au or visit NK online at www.nk.com.au The Most Relied-Upon...
-
Page 2: Automatic Backlight
www.nkrowing.com.au START/STOP STORE SPLIT/CLEAR RECALL/EXIT BATTERY LIFE INDICATOR STROKE COUNT STROKE RATE TIMING/SPLIT RECALL AUTOMATIC BACKLIGHT ON/OFF KNOB PROTECTIVE RUBBER BUMPER MICROPHONE CONNECTOR AUDIO/ CHARGING CONNECTOR If any of these functions do not work properly, review each step of the installation, checking all distances and alignments. - Page 3 www.nkrowing.com.au PROTECTIVE RUBBER BUMPER BATTERY ALIGNMENT FEATURES BATTERY ALIGNMENT FEATURES RECHARGEABLE REMOVABLE BATTERY BATTERY LOCK Want to take the CoxBox Virtual Tour? Visit www.nkrowing.com.au...
- Page 4 www.nkrowing.com.au OPERATION TURN ON Turn on amplifier and display. Increase amplifier volume. Timer and stroke count will turn on in “STOP”. Stroke TWIST Rate will operate. TURN OFF Turn off amplifier and display. TWIST, ‘CLICK’ Decrease amplifier volume. READY Ready timer and stroke count. PRESS ROW! START...
- Page 5 www.nkrowing.com.au BATTERY USE AND CHARGING Each bar represents 20% of battery life. BATTERY LIFE Should run minimum of 4 hours per full charge. Use any standard Cox Box wall or car charger. A fully CHARGING drained battery requires 9.5 hours of charging to reach full capacity.
- Page 6 www.nkrowing.com.au CARING FOR YOUR COX-BOX SYSTEM Nielsen-Kellerman equipment is designed, built and tested to withstand the rigors of everyday use, but it is invincible and it can be damaged. The following information is intended to help you maintain your equipment and prevent unnecessary repairs.
- Page 7 www.nkrowing.com.au No Stroke Rate or Intermittent/Incorrect Reading Is there a problem with the unit? When there is no reading or there are irregular readings, the problem usually lies with the sensor, not the unit itself. To test the unit: • Turn the unit on; clear the memory and place in ready mode. •...
- Page 8 www.nkrowing.com.au Cox-Box Maintenance If you row, cox or coach a coxed boat, you know the CoxBox is an important part of every practice or race. Though designed to perform in conditions that would destroy most electronics in minutes, there are a few things you can do to help your CoxBox last longer and perform better. For every waterproof electronic product, the connections are the potential trouble spots.
- Page 9 www.nkrowing.com.au New from Nielsen-Kellerman: the Coxswain’s Kit. Everything the prepared coxswain needs for practice. Kit Includes: Custom Pack with pouch and external CoxBox holder, one adjustable wrench, one 7/16” wrench, one 10mm wrench, athletic tape, electrical tape, Blister Medic first aid kit, 2 Carabineers, a tube of waterproof sun block and lip balm.
-
Page 10: Installing Your System
www.nk.com.au INSTALLING YOUR SYSTEM Check that you received everything required. If you purchased a complete CoxBox system you should have received the following items: Carrying bag .......................(1) CoxBox (or Cox Vox) control unit ...............(1) microphone......................(1) charger ........................(1) speakers ................(as ordered 2 or 3) mounting cup ....................(1) harness, with sensor installed...............(1) This manual ......................(1) - Page 11 www.nk.com.au PLEASE NOTE: The sensor must be installed at the CENTRE of the seat travel. If the sensor is too close to either end of the seat travel, the COX BOX may indicate ONE-HALF the correct stroke rate.It is essential that the holes in the magnet assembly pass directly over the holes in the sensor.
- Page 12 www.nk.com.au INSTALL THE MAGNET Remove and inspect the seat plate to find an appropriate place to mount the magnet. Use a solvent to clean the area to which you will attach the magnet. This is essential if a good bond is to be obtained. Determine the exact location of the magnet assembly on the seat plate.
-
Page 13: Daily Maintenance
www.nkcom.au REGULAR MAINTENANCE SCHEDULE AND TIPS Daily Maintenance 1. If you row on salt water, rinse the Cox-Box off with fresh water and dry it after every use. 2. Charge the unit whenever it is not in use, but do not leave the unit on charge indefi nitely. Once a Month This maintenance is easy to perform with a Cox-Box Maintenance Kit, available from NK. - Page 14 www.nkrowing.com.au Wiring built as tough as your workouts. Nielsen-Kellerman’s All New Modular Harness System You want to spend your time on rowing, not repairs. The unique engineering of NK’s modular harness • Fully molded and sealed ensures improved durability and flexibility. design to stand up to the harsh demands of rowing and environmental exposure.
- Page 15 NK, impact damage, failed batteries & normal wear & tear. Units must have been purchased in Australia from an authorised Nielsen Kellerman agent. Except as otherwise provided herein, no other warranties, expressed or implied, are made with respect to these products, including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose.
-
Page 16: Contact Info
Contact Info: Delivery Address (Please send all parcels to this address) Nielsen Kellerman Australia Pty Ltd 206 Cowans Land Oxley Island NSW 2430 AUSTRALIA Email: info@nk.com.au Web: www.nk.com.au Phone: 02 6553 2473 Fax: 02 6553 2544 Marc Douez COX-BOX PLUS OWNERS MANUAL 01 MAY 2014 E&OE...
