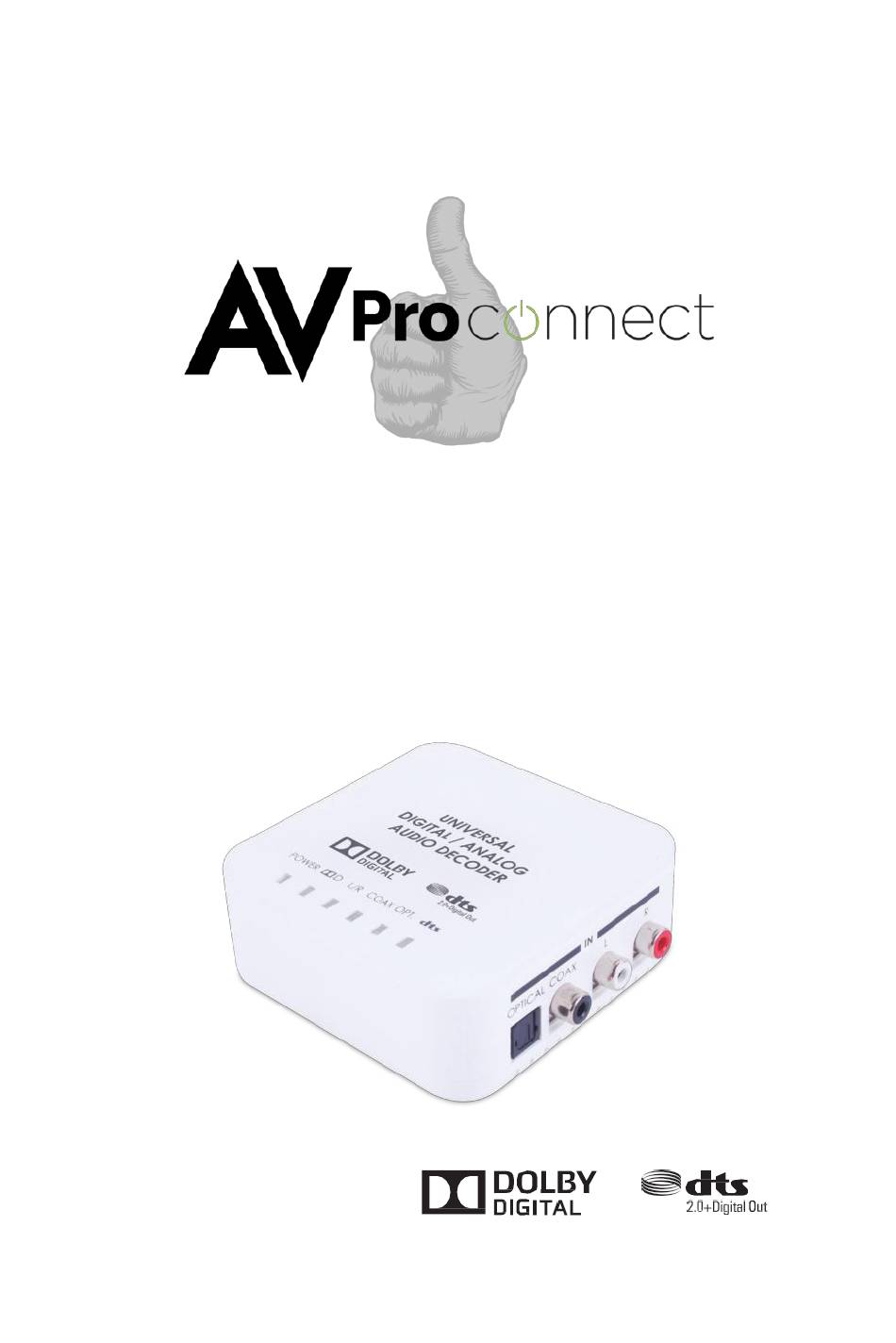

- Page 1 AC-ADM-COTO Universal Digital/Analog Audio Converter with Dolby Digital & DTS 2.0+Digital Out Decoder ® ®...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. AVPro Global assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. AVPro Global assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ........... 1 2. Applications .......... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Top Panel ........3 6.2 Right Panel ........4 6.3 Left Panel ........ -
Page 6: Introduction
INTRODUCTION ® The Universal Digital/Analog Audio Converter with Dolby Digital & ® 2.0+Digital Out Decoder can convert among Optical, Coaxial and analog audio signals. With the ability to convert digital signals into analog and analog signals into digital, this device supports the simultaneous conversion of audio formats so when converting Optical into analog audio you can also convert it into Coaxial. -
Page 7: Features
FEATURES • Dolby Digital Decoder technology embedded • DTS 2.0+Digital Out Decoder technology embedded • Integrated digital interpolator filter and Digital-to-Analog Converter (DAC) • Integrated Analog–to-Digital Converter (ADC) • Supports input sampling rates from 32 to 96 kHz and output at 48kHz •... -
Page 8: Operation Controls And Functions
OPERATION CONTROLS AND FUNCTIONS Top Panel POWER D L/R COAX OPT. POWER LED Indicator The LED will illuminate in blue when the power is connected and in red when switched off. When connected to an AC wall outlet the unit will automatically turn on. Dolby Digital LED Indicator When the source is Dolby Digital formatted the LED will illuminate in red and will remain off if not. -
Page 9: Right Panel
Right Panel OPTICAL IN Connect to the audio source's optical output. COAX IN Connect to the audio source's coaxial output. L/R IN Connect to the analog audio source with a stereo RCA cable. 6.3 Left Panel L/R OUT Connect to a compatible audio equipment, such as a TV or amplifier with a stereo RCA cable. -
Page 10: Rear Panel
Rear Panel DC 5V Connect the 5 V/1 A DC power supply to the unit and plug the adaptor to an AC wall outlet. INPUT SELECT Selects the current audio source, either optical, coaxial or L/R (Analog). POWER Push the button to turn the unit on or off. The device supports last power memory function therefore, when the power supply is reconnected it will bring up the last power status. -
Page 11: Connection Diagram
CONNECTION DIAGRAM Set-Top Box DVD Player Blu-ray Player Analog Digital Digital Stereo Coaxial Optical Input Input Input Power Supply UNIVERSAL Dolby DIGITAL / ANALOG AUDIO CO NVERTER Analog Digital Digital Stereo Coaxial Optical Output Output Output AV Receiver AV Receiver... - Page 12 Input Ports 1×Optical, 1×Coaxial, 1×Analog Stereo (L/R) Input Format LPCM 2CH & Dolby Digital/DTS 2.0+Digital from Optical or Coaxial Input Sample Rates 32 ~ 96 kHz Output Ports 1×Coaxial, 1×Optical, 1×Analog Stereo (L/R) L/R Input Impedance 47KΩ L/R Output Impedance 600Ω...
-
Page 13: Specifications
SPECIFICATIONS Audio Specifications: T.H.D+N Frequency Output Output Level Crosstalk (A-Weight) Response Optical 0~-1 dBFS <0.001% ±1 dBFS >135 dB <−155 dB Optical Coaxial 0~-1 dBFS <0.001% ±1 dBFS >135 dB <−155 dB 0dBFS Line-Out 1.9Vrms+−10% <0.01% ±1 dB >85 dB <−100 dB Optical 0~-1 dBFS... -
Page 14: Acronyms
ACRONYMS ACRONYM COMPLETE TERM Ω Analog to Digital Conversion COAX Coaxial Digital to Analog Conversion LPCM Linear Pulse Code Modulation... - Page 17 Thank you for choosing AVProConnect Please contact our support line if you need any help Copyright AVProGlobal Hldgs 2016 | 3518 N Casco Ave, Sioux Falls, SD 57104 | +1-605-274-6055 | info@avproconnect.com...
