FieldSmart
Fiber Distribution Point (FDP)
®
Splice Only Pedestal
Installation Manual
____________________________________________________
Manual 020017 REV A - Oct 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FieldSmart Splice Only and is the answer not in the manual?

Questions and answers

Summary of Contents for Clearfield FieldSmart Splice Only

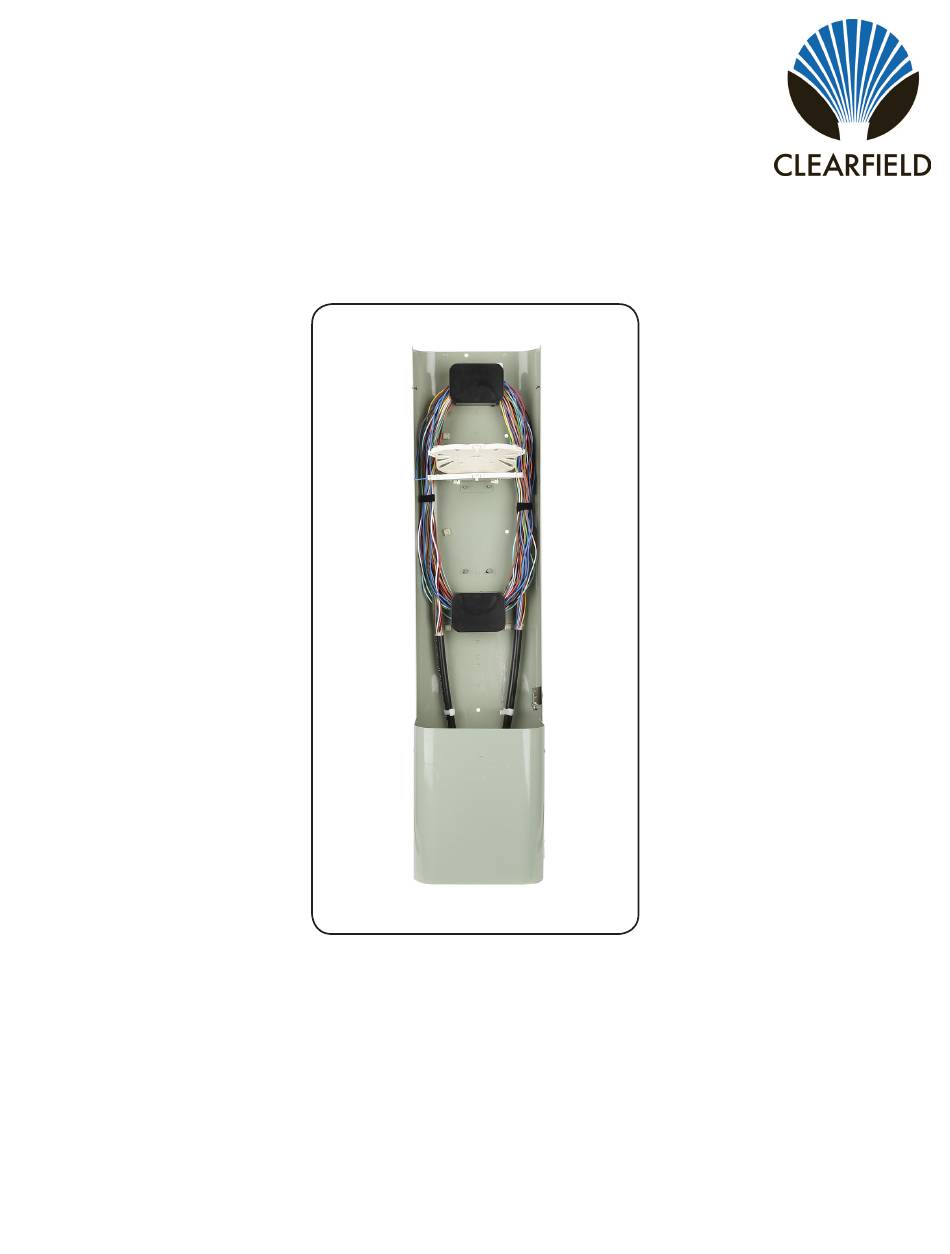

  • Page 1 FieldSmart Fiber Distribution Point (FDP) ® Splice Only Pedestal Installation Manual ____________________________________________________ Manual 020017 REV A - Oct 2018...
  • Page 2: Table Of Contents

    FieldSmart Fiber Distribution Point (FDP) ® Splice Only Pedestal Installation Manual ______________________________________________________ Table of Contents Application Description Technical Specifications Components Pedestal Access Cable Preparation & Installation Grounding Fiber Splicing Closing the Pedestal Standard Warranty Proprietary Notice Technical Support Direct: 763.476.6866 • National: 800.422.2537 • www.SeeClearfield.com • techsupport@clfd.net Manual 020017 REV A - Oct 2018...
  • Page 3: Application

    The splice only pedestal can be configured to support the specific drop cable, multi-fiber and ring cut requirements. The Clearfield® designed back plane makes it possible for the bulkheads to integrate into industry standard pedestals.
  • Page 4: Components

    FieldSmart Fiber Distribution Point (FDP) ® Splice Only Pedestal Installation Manual ______________________________________________________ Components Metallic Emerson BD5 Radius limiting spool Velcro cable management Splice tray Secondary splice tray holder mounting location Distribution and drop cables Vinyl dust /UV shield Zip Tie cable management Security screw Grounding/Bonding Plate Outside cover...
  • Page 5 FieldSmart Fiber Distribution Point (FDP) ® Splice Only Pedestal Installation Manual ________________________________________________________ Non-metallic Pencell 10 x 10 1. Radius limiting spool 2. Velcro cable management 3. Splice tray 4. Outside cover 5. Security screw Direct: 763.476.6866 • National: 800.422.2537 • www.SeeClearfield.com • techsupport@clfd.net Manual 020017 REV A - Oct 2018...
  • Page 6: Pedestal Access

    FieldSmart Fiber Distribution Point (FDP) ® Splice Only Pedestal Installation Manual ______________________________________________________ Pedestal Access Metallic Emerson BD5 The interior of the pedestal can be accessed by loosening the security screw on the right hand side of the pedestal using a 7/16” thin wall socket or a telecommunications industry “can wrench”. Then, by supporting the top of the cover and pulling out and up on the handle, the outer cover of the pedestal can be removed to provide access to the interior.
  • Page 7: Cable Preparation & Installation

    FieldSmart Fiber Distribution Point (FDP) ® Splice Only Pedestal Installation Manual ________________________________________________________ Cable Preparation & Installation OSP distribution cables that are entering or exiting the pedestal can be prepped in either a ring cut/mid-span opening fash- ion or at the end of the cable. Ring cut/Mid-span opening End of the cable The pedestal is designed to hold more than 20 feet of buffer tube from a 144 OSP cable, but most manufacturers recom-...
  • Page 8 FieldSmart Fiber Distribution Point (FDP) ® Splice Only Pedestal Installation Manual ______________________________________________________ If a shielded cable is to be used and grounded in this application, Cables to be installed can be secured to the then a bonding clamp (3M 4460-D or equivalent) shall be attached back plane of the pedestal using the zip tie in addition to the strength member clamp.
  • Page 9: Grounding

    Note: If more than 6 trays are used, you will not be able to hinge the entire stack to access lower splices. Although the bracket will accomodate12 trays, Clearfield recommends only using 6 trays for 72 splices. Trays can be added by sliding the new tray onto the hinge pins and then folding it down to snap the tray in place.
  • Page 10 FieldSmart Fiber Distribution Point (FDP) ® Splice Only Pedestal Installation Manual ______________________________________________________ Fold the tray down and snap in place Align the pins and insert into position Additional capacity (up to 12 more trays) can be added to the pedestal by adding a second splice tray bracket (part number 005622) to the back wall.
  • Page 11 FieldSmart Fiber Distribution Point (FDP) ® Splice Only Pedestal Installation Manual ________________________________________________________ The bracket is installed using the pre-installed screws from the back plane. Remove the screws and discard the nuts. The screws can then be used to attach the bracket to the pedestal The first sacrificial splice tray is pre-installed with two 4-40 x 1/4”...
  • Page 12: Closing The Pedestal

    FieldSmart Fiber Distribution Point (FDP) ® Splice Only Pedestal Installation Manual ______________________________________________________ Closing the Pedestal After work is completed in the pedestal, the black vinyl sheeting will need to be wrapped around the splice trays and secured into place using the slots and tabs that are precut into the vinyl. The cover is replaced by first hanging the top of the pedestal cover from the back panel, then swinging the cover closed and tightening the security screw.
  • Page 13: Standard Warranty

    Clearfield shall repair or replace the defective Product at its sole option and discretion, and return the repaired or replacement Product to Cus- tomer’s site, freight prepaid Note: If the Product is not found to be defective at Clearfield, the product will be returned to the Customer and the customer billed for freight in both directions.
  • Page 14: Proprietary Notice

    ______________________________________________________ Proprietary Notice Information contained in this document is copyrighted by Clearfield, Inc. and may not be duplicated in full or part by any person without prior written approval of Clearfield, Inc. Its purpose is to provide the user with adequately detailed documentation to efficiently install the equipment supplied. Every effort has been made to keep the information contained in this document current and accurate as of the date of publication or revision.
