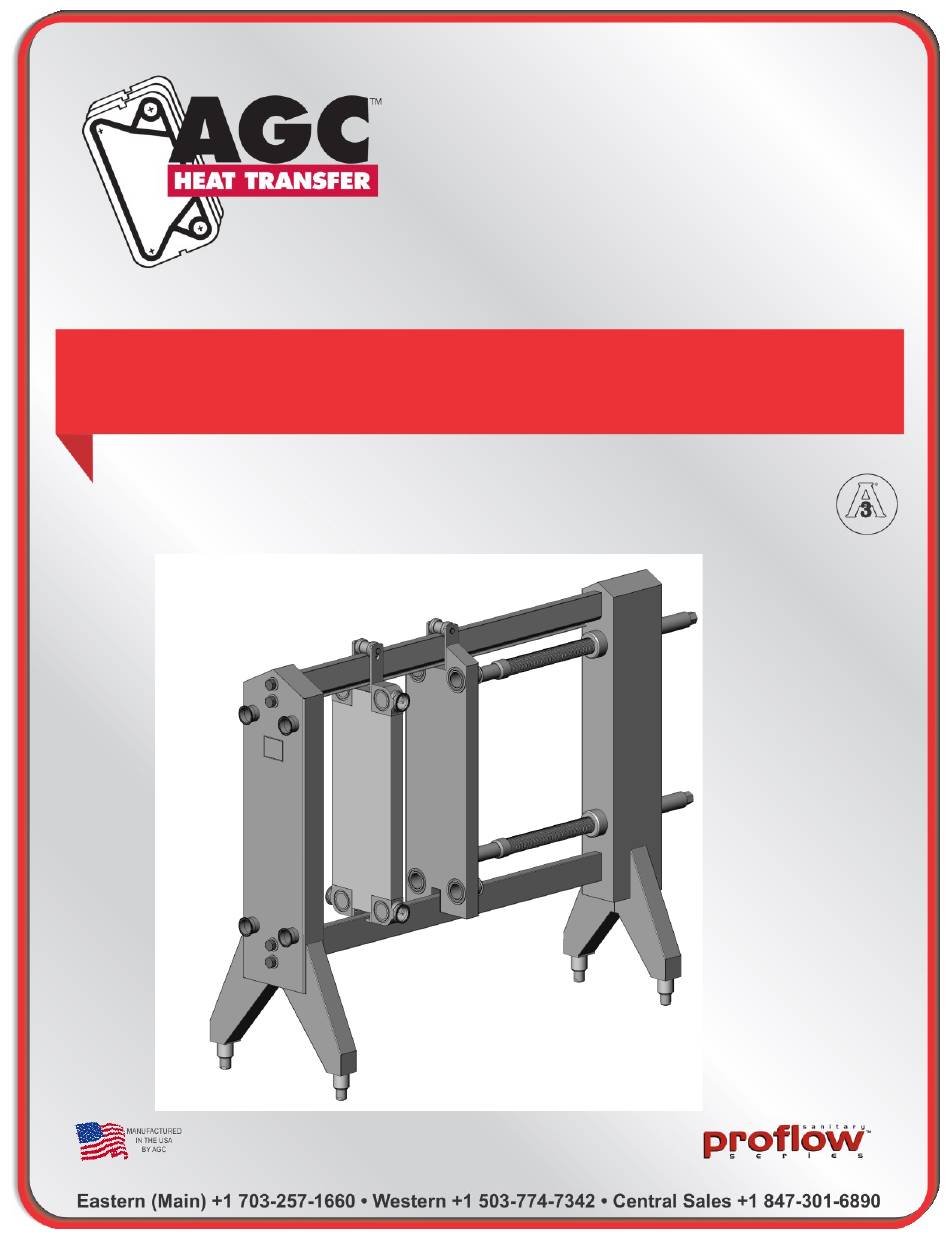

- Page 1 AGC Model Pro31-M Operation and Maintenance Manual...
-
Page 3: Table Of Contents
Table of Contents Scope: ............................1 Receiving and Inspection: ......................1 Frame Placement: ........................2 Normal Operation: ........................2 Closing the Frame: ........................3 Opening the Frame: ........................4 Frame Assembly Instructions: ....................4 Operator Maintenance: ....................... 8 Parts List: ........................... 8 Spindle Nut Assembly ...................... -
Page 5: Scope
If you need additional information or spare parts for this or any other equipment built by AGC please contact your local AGC distributor. -
Page 6: Frame Placement
AGC Fatboy™ wrench. This wrench is sized specifically to provide an efficient means for opening and closing of the Pro31-M press. As with all plate heat exchangers, the unit must be cooled below 90º F and relieved of all internal pressure before opening. -
Page 7: Closing The Frame
Closing the Frame: After all the plates and any terminals are installed into the frame it can be closed. Refer to the streaming diagram that was provided with the heat exchanger to determine the proper plate configuration and piping requirements. Figure 3 shows where this information is listed on the drawing. Note: The dimensions for each frame will be listed on the streaming diagram shipped with that frame. -
Page 8: Opening The Frame
If you have questions about erecting a Pro31 frame or any procedure described in this section, please contact AGC or your local AGC distributor. Upon delivery, uncrate all components and inspect for damage. Check the drawing package and packing slip to ensure all components are present. - Page 9 To assemble the press: 1. Place the fixed end assembly on the two 19” jack stands (see figure 6-1). The jack stands should be located near the ends of assembly as shown. Position the two 25¾” tall jack stands as shown. Depending on the size frame you are assembling the actual distance from the fixed end will vary.
- Page 10 Figure 6-3 Figure 6-4 Press with Both Rails Fixed End with Rail Bolts Figure 6-5 Figure 6-6 Positioning the End Support Raising Frame 7. After the end support rails are securely tightened, tighten the rail bolts on the fixed end (these bolts were left loose in step 4 above).
- Page 11 Figure 6-7 Figure 6-8 Frame Standing Leveling the Ports 10. After leveling the fixed end, check the upper rail to ensure it is level. The plate hanger on the upper rail must also be level in order for the plates to hang correctly. 11.
-
Page 12: Operator Maintenance
4. Remove lockout/tagout device and return press to service. Parts List: Replacement parts for the Model Pro31-M can be ordered from AGC or your local AGC distributor. Most parts are in stock and can be shipped within 24 hours from time of order. Some components have had engineering revisions, so when ordering spare parts be sure to have your unit specific information available. -
Page 13: Spindle Nut Assembly
Spindle Nut Tube 11011000 Spindle Shaft 50” 11101001 Spindle Shaft 62” AGC recommends that spindle and nut be ordered as a matched set. For a 50” spindle order assembly number 11010911. For a 62” spindle, order assembly number 11010910. Spindle Nut Assembly... -
Page 14: Pushtube Assembly
Item Quantity Part Number Description See Chart Push Tube Base 11011103 Slip Disk 11011104 Thrust Washer 11011105 Lock Insert 11011106 Pushtube Pin 39 5133-50H E-Clip Retainer Push Tube Length Part Number 10 Inch 11011111 14 Inch 11011110 18 Inch 11011112 24 Inch 11011115 28 Inch... -
Page 15: Follower Roller Assembly
Item Quantity Part Number Description 11016210 Follower Roller Pro31 SSR16-2RS Stainless Steel Ball Bearing 5100-100H Stainless Steel Snap Ring 11016212 Pro31 Follower Roller Pin Follower Roller Assembly (AGC P/N 11016213) -
Page 16: Pro3 Terminal Components
Pro3 Terminal Parts Description Part Number Pro3 Terminal Body with Roller 11018500 Pro3 Terminal Roller with Pin 11015007 Pro3 Port Boss V Configuration with 3” connection 11018516 Pro3 Port Boss X Configuration with 3” connection 11018515 Pro3 Port Boss Thru with 2” connection 11018520 Pro3 Blank Port Boss 11018520... -
Page 17: Pro3 Plate And Frame Gaskets
Pro3 Gasket EPDM VITON Flow Gasket AGPRO301N AGPRO301E AGPRO301V AGPRO302N AGPRO302E AGPRO302V End Gasket AGPRO303N AGPRO303E AGPRO303V Port Gasket 11018572 11018578 11018583 FDA Port Gasket Pro3 Plate and Frame Gaskets... - Page 19 http://agcheattransfer.com...
