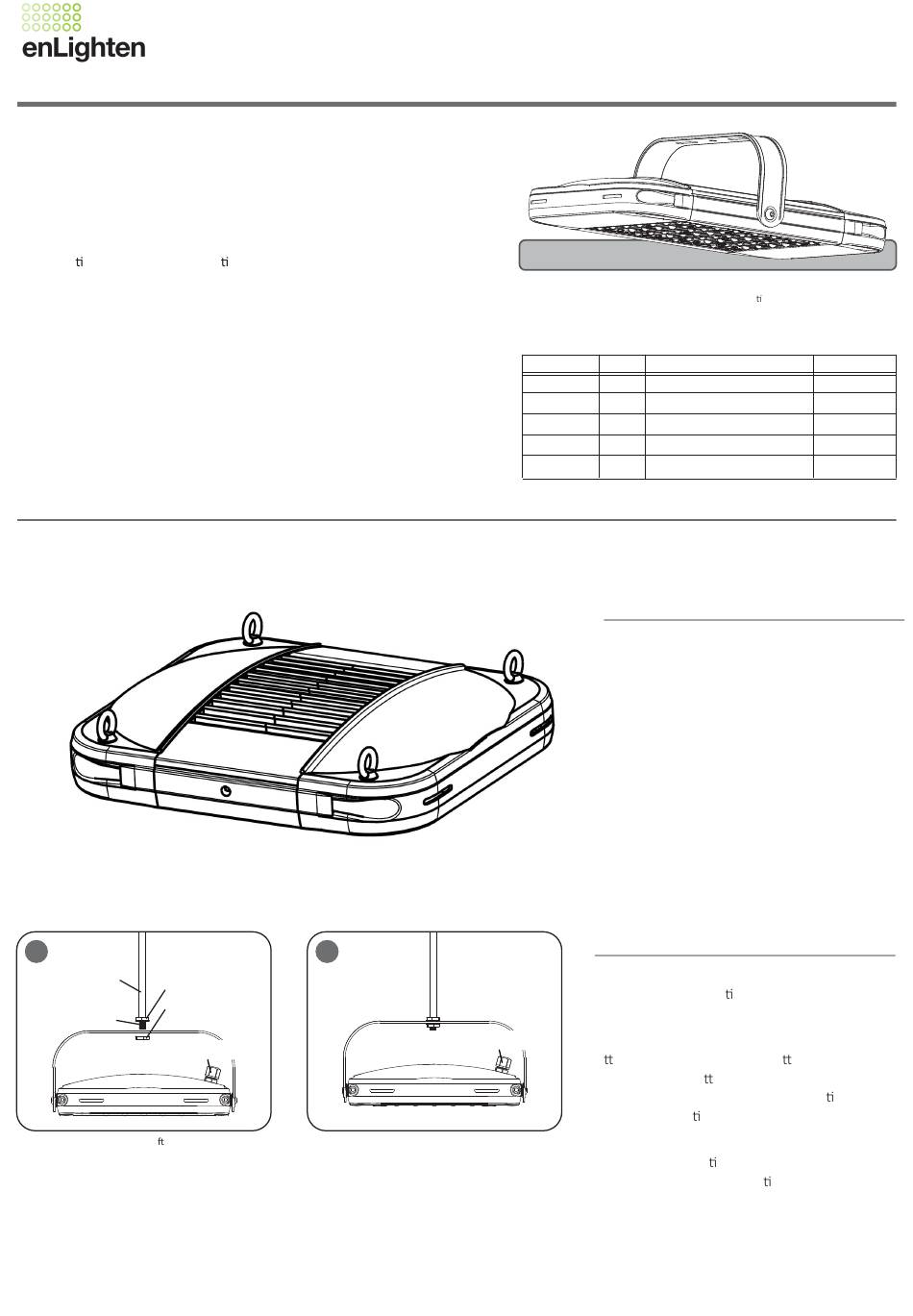

enLighten Tauro Eco HB80-5000 Series Installation Instructions

EASY INSTALLATION
Comes with 3m Australian Flex and Plug and eye bolts as standard.
A mouting bracket is available as an optional extra.

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

1. To avoid the possibility of electrical shock, turn off power supply before
installa on or servicing. Installa on and servicing should be performed
by a qualified electrician and in accordance the latest wiring regulations.
Light must be operated within its specified operating parameters and in
2.
accordance with our warranty requirements.
These documents are available on our website.

TO INSTALL:

Use one of the mouting methods described below
1
Pendant Stem*¹
Look-Nut(A)*²
Look-Nut(B)*²
Pendant Stem Thread
*¹ Pendant Stem can not be so material (not-provided)
*² Look Nuts are not provided
2
Power Cord
(Cord Not shown)
LED HIGH BAY/ LOW BAY LED LIGHTS
INSTALLATION INSTRUCTIONS
100-240V/277V AC, 50/60Hz, Suitable for Wet Loca ons (IP65), Class I
*This product must be earthed
Model No. Power Dimension
HB80-5000-xx
80W 366 x340 x156 mm
HB120-5000-xx
120W 439 x340 x156 mm
HB160-5000-xx
160W 512 x340 x156 mm
HB200-5000-xx
200W 585 x340 x156 mm
HB240-5000-xx
240W 658 x340 x156 mm
xx denotes 60° / 90° / 110° degree beam angle

SUSPENSION MOUNTING

STEP 1:
Attach your preferred hanging chain (not
supplied) to the four eye bolts on fitting.
STEP 2:
Secure hanging chain to ceiling.
STEP 3:
Connect the power plug to a mains power
socket.

PENDANT MOUNTING

STEP 1:
Assemble the moun ng bracket to the fixture
by provided M10 (3/8") round head screws.
STEP 2:
Power Cord
(Cord Not shown)
A ach Lock-Nut(A) to the bo om of the
Pendant Stem. A ach Lock-Nut(B) by holding
the interjacent Fixture Bracket and ghtening
Lock-Nut(B) un l secure. See Figure 1.
STEP 3:
Loosen the moun ng bracket screws, adjust
the fixture to desired posi on, re-secure the
screws.
STEP 4:
Connect the power plug to a mains power
socket.
Tauro Eco
TM
Optional Mounting
Bracket shown
Weight
4.3 kg
5.2 kg
6.0 kg
7.0 kg
7.8 kg
