Summary of Contents for La Rocca Expres Venezia-17

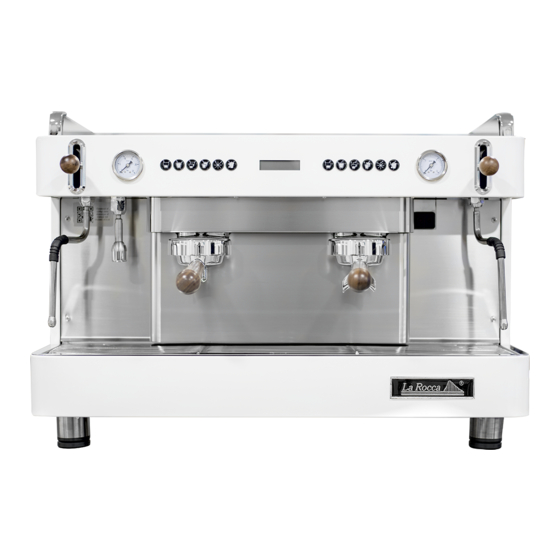

- Page 1 Venezia-17 User manual P. Ind. Hacienda Dolores, C/6 – Nave 13 p. +34 955 63 09 07 larocca@larocca.es Alcalá de Guadaira – Seville - Spain f. +34 955 63 08 13 www.larocca.es...
-
Page 2: Table Of Contents
Index Installation ......................3 ATTENTION! NOTICE FOR THE SERVICEMAN CONNECTING THE MACHINE Switching on ...................... 6 PREVIOUS CHECKS TURNING ON THE MACHINE Switch off the machine ..................7 III. Normal operation ....................8 ESPRESSO BREWING DISPENSING HOT WATER STEAMING AND FROTHING MILK Programming .................... - Page 3 MAIN SWITCH STEAMER LEVER 2 BOILER PRESSURE GAUGE KEYBOARD GROUP 2 LCD DISPLAY KEYBOARD GROUP 1 NET PRESSURE GAUGE STEAMER LEVER 1 HOT WATER WAND STEAMER WAND 1 WORKING TRAY ADJUSTABLE FEET REMOVABLE TRAY FILTERHOLDER GROUP 1 FILTERHOLDER GROUP 2 STEAMER WAND 2...
-
Page 4: Installation
10. To prevent dangerous overheating, uncoil the power cable to its full length. 11. To ensure correct operation and safety, the coffee machine should not be exposed to outdoor weather conditions (rain, sun, ice). LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL... -
Page 5: Connecting The Machine
Connect the inlet hose that is assembled in the machine (accessible under the working tray) to the main water supply, which should have a 3/8” male connection fitted with a shut-off valve, tighten it with a wrench. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL... - Page 6 Check the characteristics, power rating of the system and that the diameter of the cables are suitable for the power used by the machine. Do not connect the coffee machine to the power supply via extension boards, adapters or shared sockets. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...
-
Page 7: Switching On
You can use this time to purge the hydraulic circuit of each group by pressing any of the dose buttons. You can also insert the filterholders on its placement aligning the flanges with the slots in the group and rotate it anti-clockwise until the handle is perpendicular to the coffee machine. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL... -
Page 8: Switch Off The Machine
The LCD will show the “OFF” message, the water in the boiler will stop to be warmed and the machine will remain in this state until the “2 espressos” button is pressed again or until the scheduled time for its activation. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL... -
Page 9: Normal Operation
If you wish to stop the pouring before the programmed volume, then you can press any of the dose buttons again to stop it. If you wish to modify the volume served, go to the “programming the dosage” chapter. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL... -
Page 10: Dispensing Hot Water
Close the tap and clean the outside of the steam wand with a damp cloth to prevent the nozzle blockage. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL... -
Page 11: Programming
All the doses programmed at group 1 will copy to the other groups. If you want different programming for each group, you must program first the doses of group 1 and then the other groups. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL... -
Page 12: Setting The Clock
To see the counter values you must start as the dosage programming, pressing for 5 seconds the “continuous” button until the “doses settings” screen appears on the LCD. Then release the “continuous” button and press it twice. The following screen will appear on the LCD: LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL... - Page 13 From now on, press the continuous key to check all the counter pages. Pressing once we get the liters remaining for the scheduled revision. Pressing once again we get the total coffees served. And finally, the counters of every coffee served by every dose of every group of the machine LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...
-
Page 14: Coffee Machine Cleaning
Activate the auto-cleaning program if the machine has the function: (with the machine on idle-state press the continuous button and without release, press also the 1 espresso button. Auto-cleaning will start automatically. Release the buttons.) Repeat the cleaning cycle with all the other groups. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL... - Page 15 Remove and insert the filterholder gently. Never use excessive force to try to close the filterholder. Important: Avoid placing wet cups directly on the cup shelf; it may drip into the machine and cause machine damage. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...
-
Page 16: Storage Of Machine
Cover / pack the machine and store it in a dry place where it isn’t exposed to bad weather conditions. If the machine is stored on premises where the temperature may drop below freezing point, always empty the boiler and the water circulation pipes. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL... -
Page 17: Technical Data
4,500 (opt) Dimensions (width) Dimensions (height) Dimensions (depth) Built-in pump Available finishing Inox/black/white Inox/black/white Automatic water load in boiler 2nd steamer Programmable hot water Cappuccinatore Opt. Opt. Serial connection to PC Opt. Opt. DIMENSIONS LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...
