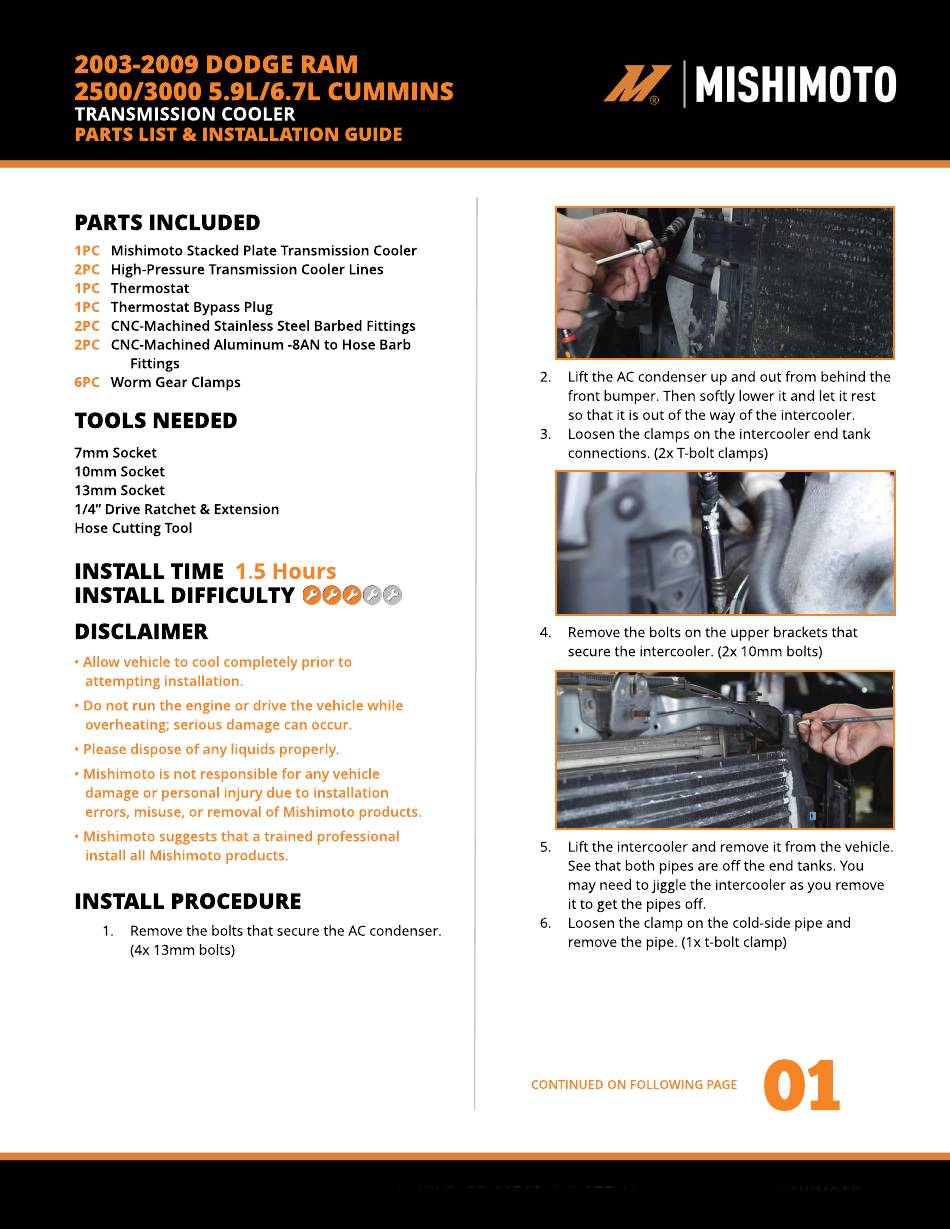

Mishimoto MMTC-RAM-03SL Parts List & Installation Manual

01
PARTS IN CLUDED
1PC Mishim ot o St acked Plat e Transm ission Cooler
2PC High-Pressure Transm ission Cooler Lines
1PC Therm ost at
1PC Therm ost at Bypass Plug
2PC CNC-Machined St ainless St eel Barbed Fit t ings
2PC CNC-Machined Alum inum -8AN t o Hose Barb
Fit t ings
6PC Worm Gear Clam ps
TOOLS N EEDED
7m m Socket
10m m Socket
13m m Socket
1/ 4? Drive Rat chet & Ext ension
Hose Cut t ing Tool
IN STALL TIM E 1.5 Hou r s
IN STALL DIFFICULTY
DISCLAIM ER
- Allow vehicle t o cool com plet ely prior t o
at t em pt ing inst allat ion.
- Do not run t he engine or drive t he vehicle while
overheat ing; serious dam age can occur.
- Please dispose of any liquids properly.
- Mishim ot o is not responsible for any vehicle
dam age or personal injury due t o inst allat ion
errors, m isuse, or rem oval of Mishim ot o product s.
- Mishim ot o suggest s t hat a t rained professional
inst all all Mishim ot o product s.
IN STALL PROCEDURE
1. Remove the bolts that secure the AC condenser.
(4x 13mm bolts)
2. Lift the AC condenser up and out from behind the
front bumper. Then softly lower it and let it rest
so that it is out of the way of the intercooler.
3. Loosen the clamps on the intercooler end tank
connections. (2x T-bolt clamps)
4. Remove the bolts on the upper brackets that
secure the intercooler. (2x 10mm bolts)
5. Lift the intercooler and remove it from the vehicle.
See that both pipes are off the end tanks. You
may need to jiggle the intercooler as you remove
it to get the pipes off.
6. Loosen the clamp on the cold-side pipe and
remove the pipe. (1x t-bolt clamp)
2003-2009 DODGE RAM
2500/ 3000 5.9L/ 6.7L CUM M IN S
TRANSM ISSION COOLER
PARTS LIST & IN STALLATION GUIDE
CONTINUED ON FOLLOWING PAGE
