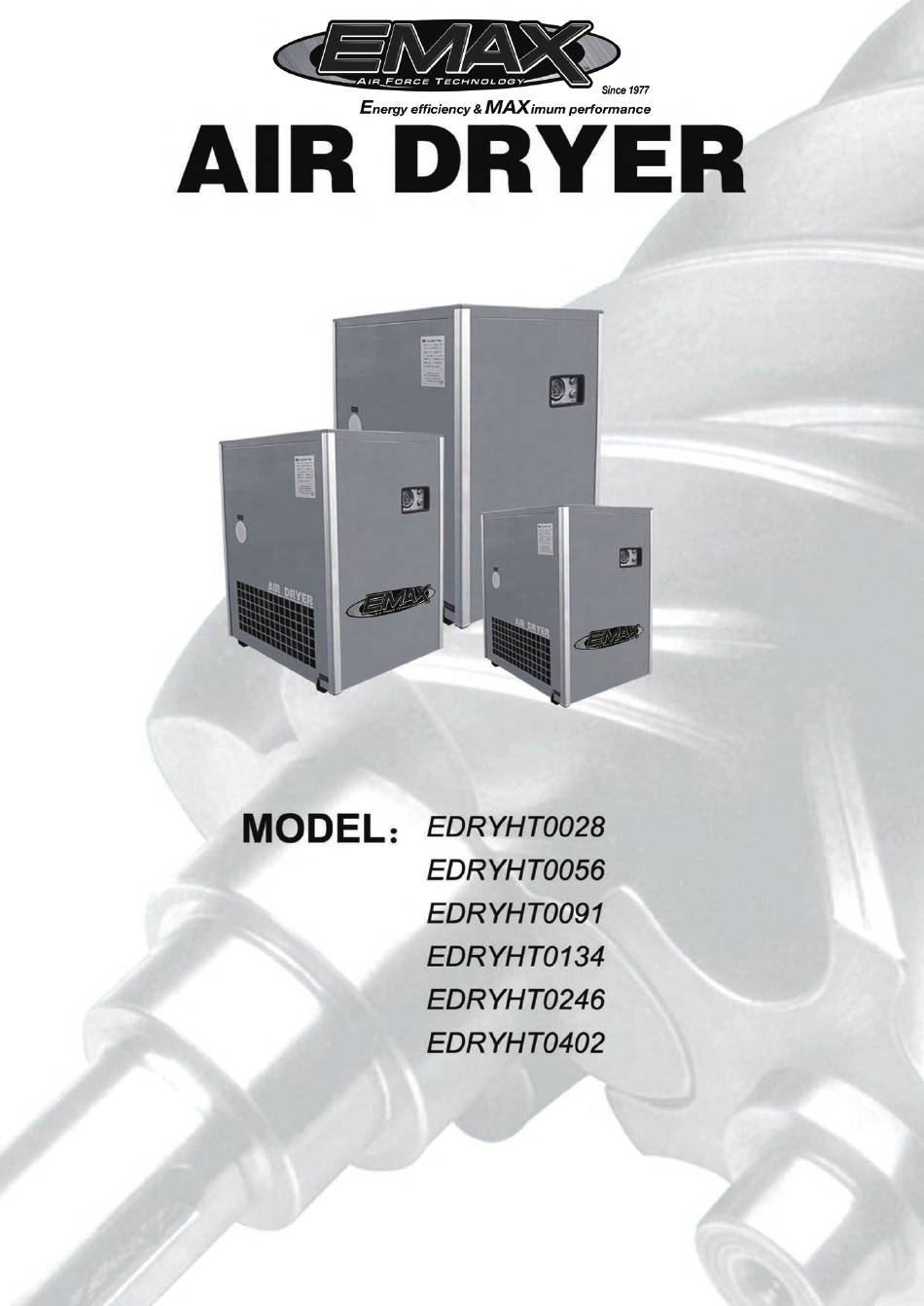

Summary of Contents for Emax EDRYHT0091
-
Page 2: Table Of Contents
AIR DRYER INSTRUCTION MANUAL Contents GENERAL SAFETY INFORMATION ………………………… 1 READ PRIOR TO STARTING THIS EQUIPMENT …………… 1 DESCRIPTION ……………………………………………………2 INSTALLATION ………………………………………………… 3 OPERATION ………………………………………………………5 MAINTENANCE …………………………………………………6 FLOW SCHEMATIC ………………………………………………7 TROUBLESHOOTING……………………………………………8... -
Page 3: General Safety Information
AIR DRYER INSTRUCTION MANUAL GENERAL SAFETY INFORMATION 1. This equipment is a pressure-containing device. Don’t exceed maximum operating pressure as shown on equipment serial number tag. 2. This equipment requires electricity to operate. Install equipment in compliance with national and local electrical codes. 3. -
Page 4: Description
AIR DRYER INSTRUCTION MANUAL DESCRIPTION Function Compressed air enters the air-to-air heat exchanger and is pre-cooled by the chilled outgoing air. The air then enters the air-to-refrigerant heat exchanger where it is further cooled by the refrigeration system. As the air is cooled, water vapor condenses into liquid droplets. -
Page 5: Installation
AIR DRYER INSTRUCTION MANUAL condensed moisture, oil and solids are separated from the compressed air and discharged from the system by an automatic condensate drain trap. The cold compressed air, enters the shell side of pre-cooler. By removing heat from the incoming air, the outgoing air is reheated. - Page 6 AIR DRYER INSTRUCTION MANUAL the vibration of the compressor from interfering with the dryer’s operation. 3.Mount dryer on firm level surface. 4.Automatic drain outlet should be connected to the plant drainage system in order to prevent condensate from polluting plant. 5.
-
Page 7: Operation
AIR DRYER INSTRUCTION MANUAL 3. Electrical entry in through electrical connection entry hole in electrical enclosure. Connect power to proper terminals. OPERATION Preparation for start-up 1. Be sure that voltage to unit, air inlet pressure, air inlet temperature, air flow are as marked on unit serial number tag. 2. -
Page 8: Maintenance
AIR DRYER INSTRUCTION MANUAL Notice proceeding 1. Note running of the refrigeration compressor. Check and remove troubleshooting in time. 2. Don’t start-up and shutdown frequently, dryers should restarted after 10 minutes. Shutdown Close the dryer air inlet valve and press the control button to shut, then disconnect the power and close the water supply valve. -
Page 9: Flow Schematic
AIR DRYER INSTRUCTION MANUAL Automatic condensate drain Monthly flush out accumulated sludge and dirt in the automatic condensate drain. Procedure for clean drains: a. Close manual valve ahead of drain. b. Depressurize drain by loosening shell bolt. c. Remove shell bolt and detach the shell, take filter core out and clean it with brush and water. -
Page 10: Troubleshooting
AIR DRYER INSTRUCTION MANUAL TROUBLESHOOTING POSSIBLE CAUSE (S) CORRECTIVE ACTION Power failure Check power to unit Temperature switch Reset disconnected Have electrician check Faulty wiring, loose terminals electrical connections Dryer not running Have compressor check and Compressor motor damage replace Have contactor check and Contactor damage replace... - Page 11 AIR DRYER INSTRUCTION MANUAL Check flow rate and select Excessive air flow dryer newly Freezing moisture evaporator because Adjust hot gas bypass valve refrigeration system clockwise improperly functioning High pressure drop across dryer Pipeline diameter too small Pipeline too long Install new pipeline Pipeline elbows too many Inlet/Outlet valve not open...
