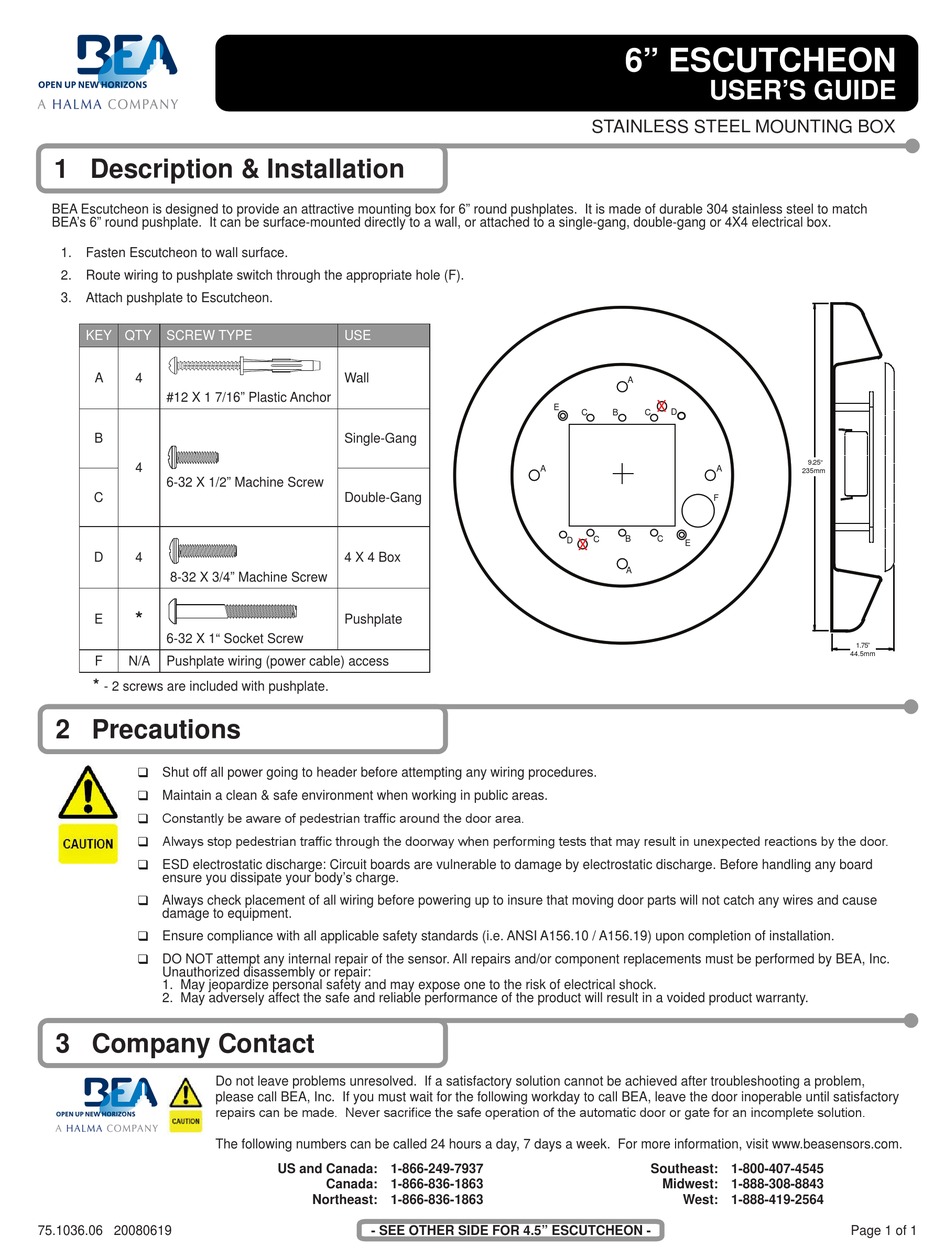

1 Description & Installation
BEA Escutcheon is designed to provide an attractive mounting box for 6" round pushplates. It is made of durable 304 stainless steel to match
BEA's 6" round pushplate. It can be surface-mounted directly to a wall, or attached to a single-gang, double-gang or 4X4 electrical box.
1.
Fasten Escutcheon to wall surface.
2.
Route wiring to pushplate switch through the appropriate hole (F).
3.
Attach pushplate to Escutcheon.
KEY QTY
SCREW TYPE
A
4
#12 X 1 7/16" Plastic Anchor
B
4
6-32 X 1/2" Machine Screw
C
D
4
8-32 X 3/4" Machine Screw
*
E
6-32 X 1" Socket Screw
F
N/A
Pushplate wiring (power cable) access
*
- 2 screws are included with pushplate.
2 Precautions
 Shut off all power going to header before attempting any wiring procedures.
 Maintain a clean & safe environment when working in public areas.
 Constantly be aware of pedestrian traffic around the door area.
 Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected reactions by the door.
 ESD electrostatic discharge: Circuit boards are vulnerable to damage by electrostatic discharge. Before handling any board
ensure you dissipate your body's charge.
 Always check placement of all wiring before powering up to insure that moving door parts will not catch any wires and cause
damage to equipment.
 Ensure compliance with all applicable safety standards (i.e. ANSI A156.10 / A156.19) upon completion of installation.
 DO NOT attempt any internal repair of the sensor. All repairs and/or component replacements must be performed by BEA, Inc.
Unauthorized disassembly or repair:
1. May jeopardize personal safety and may expose one to the risk of electrical shock.
2. May adversely affect the safe and reliable performance of the product will result in a voided product warranty.
3 Company Contact
Do not leave problems unresolved. If a satisfactory solution cannot be achieved after troubleshooting a problem,
please call BEA, Inc. If you must wait for the following workday to call BEA, leave the door inoperable until satisfactory
repairs can be made. Never sacrifice the safe operation of the automatic door or gate for an incomplete solution.
The following numbers can be called 24 hours a day, 7 days a week. For more information, visit www.beasensors.com.
75.1036.06 20080619
USE
Wall
Single-Gang
Double-Gang
4 X 4 Box
Pushplate
US and Canada:
1-866-249-7937
Canada:
1-866-836-1863
Northeast:
1-866-836-1863
- SEE OTHER SIDE FOR 4.5" ESCUTCHEON -
6" ESCUTCHEON
USER'S GUIDE
STAINLESS STEEL MOUNTING BOX
A
X
E
D
C
B
C
A
A
F
X
C
B
C
D
E
A
Southeast:
Midwest:
West:
9.25"
235mm
1.75"
44.5mm
1-800-407-4545
1-888-308-8843
1-888-419-2564
Page 1 of 1
