American DJ
®
User Instructions
CRANK 2 SYSTEM™
Portable Trussing System

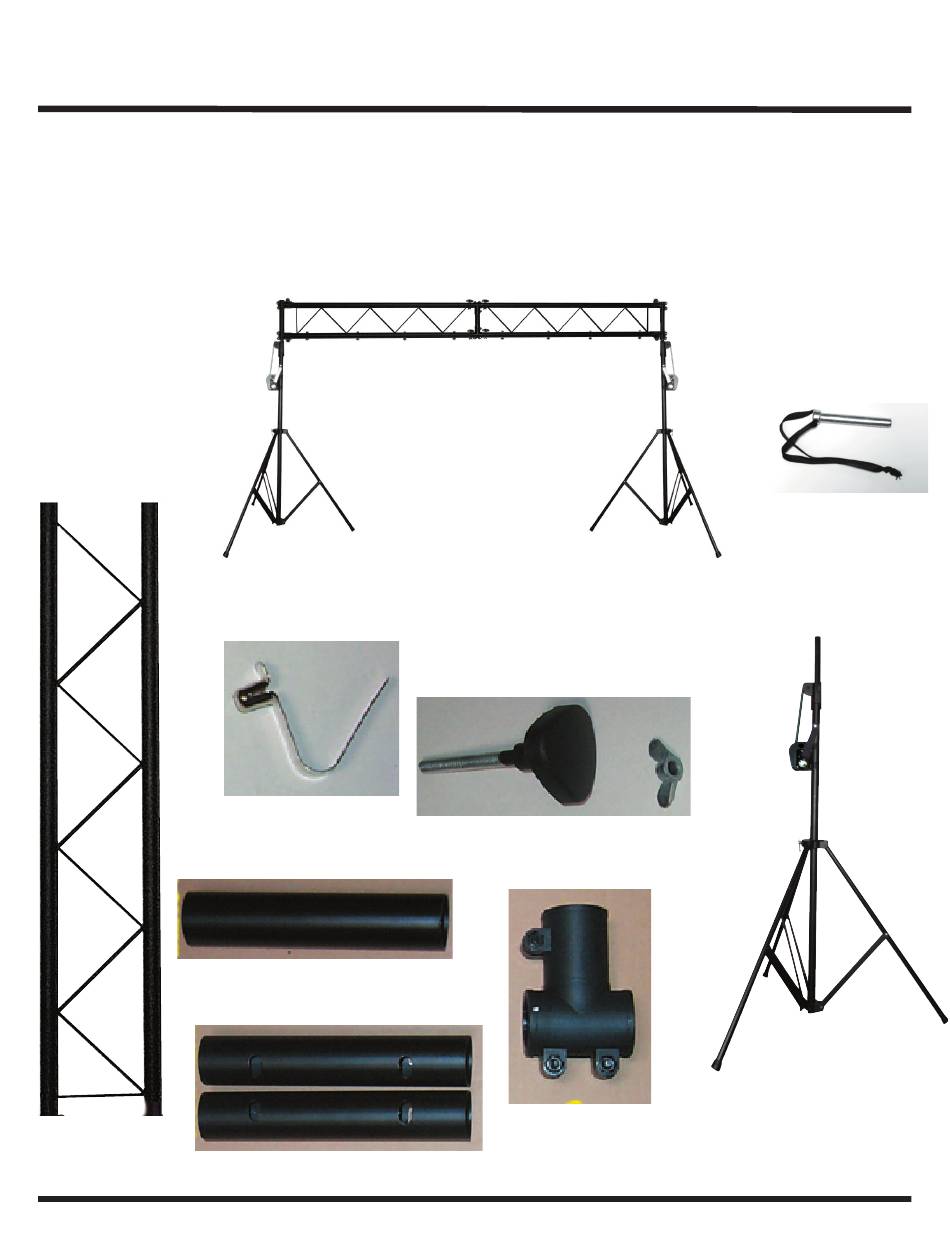

CRANK 2 SYSTEM™ PARTS LIST:
4 x Safety Pins
Part#: Z-LTS/SP
2 x 5ʼ Truss I-Beam
Part#: Z-CRANK2/IB
4 x Truss/T-Connector Locking Clip
2 x 10ʼ Tri-Pod Stands
Part#: Z-IBEAM/C
Part#: Z-CRANK2/TRIPOD
4 x I-Beam Knobs w/ Wing Nuts
Part#: Z-CRANK2-IB/K
& Z-CRANK2/WN
1 x Center "I" Support bar
6 x Side Mount T-Connectors
Part#: Z-CRANK2/IC-NH
Part#: LTS/T
2 x I-Beam Connectors
Part#: Z-CRANK2/IC
Affordable Quality Lighting Products from American DJ® Los Angeles, CA. 90058
Advertisement
Related Manuals for American DJ Crank 2
Summary of Contents for American DJ Crank 2
- Page 1 4 x I-Beam Knobs w/ Wing Nuts Part#: Z-CRANK2-IB/K & Z-CRANK2/WN 1 x Center “I” Support bar 6 x Side Mount T-Connectors Part#: Z-CRANK2/IC-NH Part#: LTS/T 2 x I-Beam Connectors Part#: Z-CRANK2/IC Affordable Quality Lighting Products from American DJ® Los Angeles, CA. 90058...
- Page 2 Center “I” Support Bar with T-Connectors Assembled 5’ Truss I-Beam I-Beam Connector 5’ Truss I-Beam Center “I” Support Bar Middle of Crank 2 System Affordable Quality Lighting Products from American DJ® Los Angeles, CA. 90058...
