Summary of Contents for ACUSTOM COAX

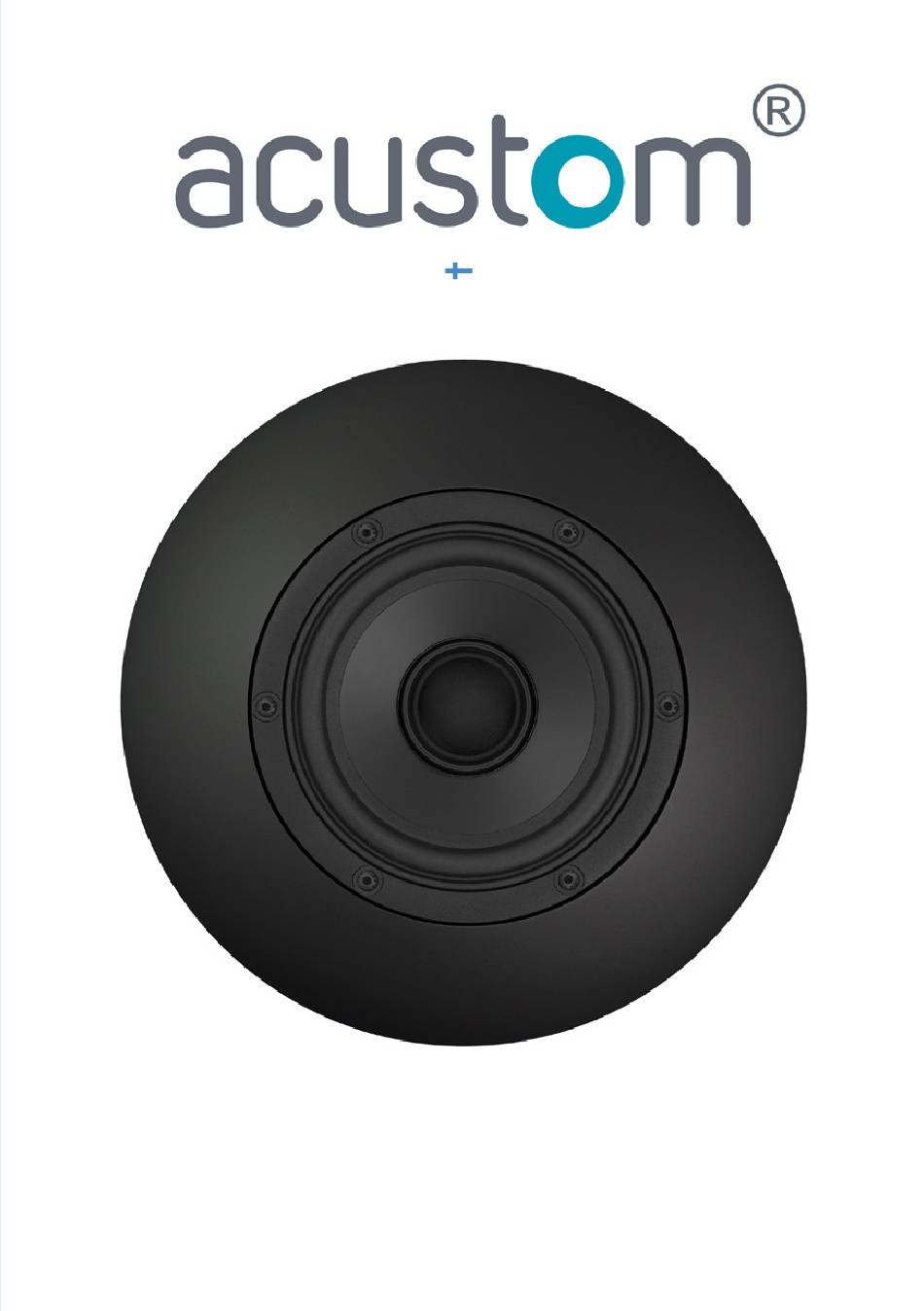

- Page 1 Designed and crafted in Finland with passion for sound and style User Guide (EU) ® ACUSTOM COAX...
- Page 2 - to a point that it almost feels like you are at the concert. You can surprise and captivate with the sound and the looks of the Acustom speakers – at your parties, get-togethers and movie nights.
-
Page 3: In The Box
1. In the Box ACUSTOM COAX – Active speaker with DOME attached, right channel ACUSTOM COAX – Passive speaker with DOME attached, left channel external 24 VDC power supply ACUSTOM speaker cable 5 m, 3.5 mm – RCA -cable 5 m, for with power cable 1.8 m,... -
Page 4: Controls And Connections
In MONO-mode both speakers play same audio signal. Volume - / Previous song (Press for 2 sec.) To activate Acustom Link IN-mode, press buttons 13 and 10 in that order. To deactivate Acustom Link IN-mode, repeat the procedure. LED “ACUSTOM LINK AMPLIFIER IN”... -
Page 5: Get Started
Place active unit on the right side and passive unit on the left side. Alternatively, mount the speakers on the wall using Acustom WM01 wall mount (sold separately). Do not use the Acustom ARCH magnetic speaker stands when mounting the speakers on the wall. - Page 6 Note that RED goes RED, and BLACK goes BLACK. Connect Acustom power cable to external 24 VDC power supply. Then connect power supply to the DC power input on the speaker. Finally plug the power cable to power supply and the mains power socket.
-
Page 7: Speaker Placement
4. Speaker placement Acustom COAX speakers sound great placed anywhere in the room. However they are designed to sound optimal in certain placements. You can enjoy the best performance from these speakers when they are placed close to the wall (see picture below). - Page 8 5. Basic Volume and EQ adjustments Acustom COAX speakers are designed to sound great anywhere in the home or office from out-of-the-box, with factory pre-settings. To meet the requirements for different set-ups, other than optimal room placement, and guarantee optimized sound – one can make adjustment with built-in EQ interface in the back-panel of the active speaker.
- Page 9 “Subwoofer”, setting for high-pass frequency 120 Hz (professional use). This Bass Curve setting is recommended for using separate subwoofer. Use “Acustom Link Out” for Digital 24-bit/48 kHz Audio output for subwoofer. Please refer to our advanced instructions or contact sales@acustomspeakers.com.
-
Page 10: Daily Use
The most convenient way to use the Acustom COAX speakers is to use your Bluetooth feature on your device for audio playback. You can also use a 3.5mm to RCA cable (cable included) to hook up any analog source, such as your TV. - Page 11 (AUTO - BT ON). Once a device is connected to the speakers, you are good-to-go with the controls on your device to set the volume and make song selections, to name of a few. However, you can take advantage of the Acustom COAX back-panel controls to work with your Bluetooth audio transmission / playback from your device.
- Page 12 Acustom COAX speakers connect easily to any analog audio source such as the TV. Please use the “Acustom 3.5 mm to RCA cable” (included in the box) to connect with your TV-set. Use the headphone output on the TV with 3.5 mm connector and insert RCA connector to “ANALOG AUDIO IN”...
- Page 13 6. Daily use...
-
Page 14: Changing The Dome
Attaching the DOME Detaching the DOME (youtube.com/watch?v=XyvP7MZ8obI) (youtube.com/watch?v=XyvP7MZ8obI) a. To attach the dome to the COAX speaker, please a. Put your thumbs over the DOME’s edge. make sure that both seal ends are pointing Thumbs should be located exactly in the towards you. -
Page 15: Technical Specification
Use clean and dry or slightly damp cloth to remove dirt and Each Acustom speaker has a unique product tag, by which it dust. Be careful not to allow dust build-up on the product or is possible to retrace the origin of the product. - Page 16 www.acustom.fi...
