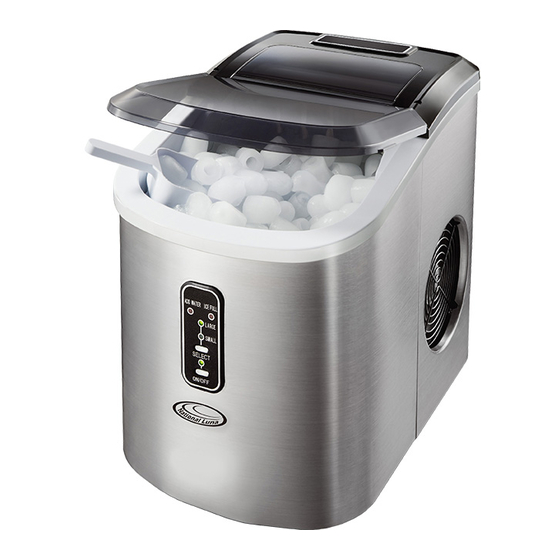

Summary of Contents for National Luna NL12-ICE MAKER
- Page 2 • 2.2 L Water Reservoir Capacity • 0.7kg Ice Basket Capacity (Full) • Hollow Bullet Shape Ice (2 x size options) • Operating Ambient Temperature 10ºC to 43ºC National Luna sales and support: Tel : +27 (0)11 452-5438 info@nationalluna.com www.nationalluna.com...
- Page 3 Camping ICE MAKER Instruction Manual NL12-ICE MAKER Read these instructions carefully before using your Camping Ice Maker. Read these instructions carefully before using your Camping Ice Maker. We recommend that you keep this manual in a safe place for future reference.
-
Page 4: Table Of Contents
GETTING TO KNOW YOUR UNIT OPERATING PROCEDURES & MAINTENANCE UNPACKING YOUR ICE MAKER CONNECTING YOUR ICE MAKER CLEANING AND MAINTAINING YOUR ICE MAKER USING YOUR ICE MAKER TROUBLE-SHOOTING TECHNICAL PARAMETERS & EXPLODED PARTS DIAGRAM 8 ELECTRICAL CIRCUIT DIAGRAM NATIONAL LUNA LIMITED WARRANTY... -
Page 5: Important Safety Instructions & Safety Tips
This product should not be disposed with other household waste. Recycle responsibly to prevent possible harm to human health or the environment, as well as to promote the sustainable re-use of materials. This Appliance conforms to IEC 60335-2-24 Safety Standards NL12-ICE Maker Manual Page 1 www.nationalluna.com... -
Page 6: Preparing Your Ice Maker For Use
Keep at least 10mm on each side of your unit for free airflow. (See page 6) • This appliance is intended to be used in household and similar applications. NL12-ICE Maker Manual Page 2 www.nationalluna.com... -
Page 7: Getting To Know Your Unit
(In order see the water level mark, remove the ice basket.) SIZE CONTROL: Makes Small & Large Ice Bullets 20mm 20mm 25mm 25mm The Ice-maker must be positioned so that the water drain plug is accessible. Water drain plug NL12-ICE Maker Manual Page 3 www.nationalluna.com... -
Page 8: Operating Procedures & Maintenance
4. Allow one hour for the refrigerant fluid to settle before plugging ice maker in. 5. The appliance must be positioned so that the drain plug is accessible. 6. WARNING: Fill the water reservoir with drinking water only. NL12-ICE Maker Manual Page 4 www.nationalluna.com... -
Page 9: Connecting Your Ice Maker
5. Dry the interior and exterior with a clean soft cloth. 6. When the machine is not going to be used for a long time, drain the water completely, dry the interior and leave the lid ajar. NL12-ICE Maker Manual Page 5 www.nationalluna.com... -
Page 10: Using Your Ice Maker
8. If the unit is not being used, drain all the water via the water drain plug and dry the reservoir and unit thoroughly - leaving the door ajar for airing. (NOTE: If stored damp, mould and bacteria build-up will occur.) NL12-ICE Maker Manual Page 6 www.nationalluna.com... -
Page 11: Trouble-Shooting
Verify this with a qualified ice has formed. working. technician. Refrigerant in cooling Verify this with a qualified system has leaked. technician. Pipe in the cooling system is Verify this with a qualified blocked. technician. NL12-ICE Maker Manual Page 7 www.nationalluna.com... -
Page 12: Technical Parameters & Exploded Parts Diagram
TECHNICAL PARAMETERS & DIAGRAM NL12-ICE Maker Manual Page 8 www.nationalluna.com... - Page 13 23. Foamed assembly 36. Compressor 11. Inner tank bracket, LH 24. Water filter 37. Plate bottom 12. Cam 25. Inner tank bracket, RH 38. Rubber foot 13. Ice scoop link 26. Sychronuous motor 39. Air grille NL12-ICE Maker Manual Page 9 www.nationalluna.com...
-
Page 14: Electrical Circuit Diagram
ELECTRICAL CIRCUIT DIAGRAM NL12-ICE Maker Manual Page 10 www.nationalluna.com... -
Page 15: National Luna Limited Warranty
8. National Luna shall not be held responsible for any injuries to persons caused by the incorrect or negligent usage of this appliance. 9. Repair work to be done in terms of this warranty must be referred to National Luna for written authorisation before any work is carried out.
