Summary of Contents for Soltec Lounge

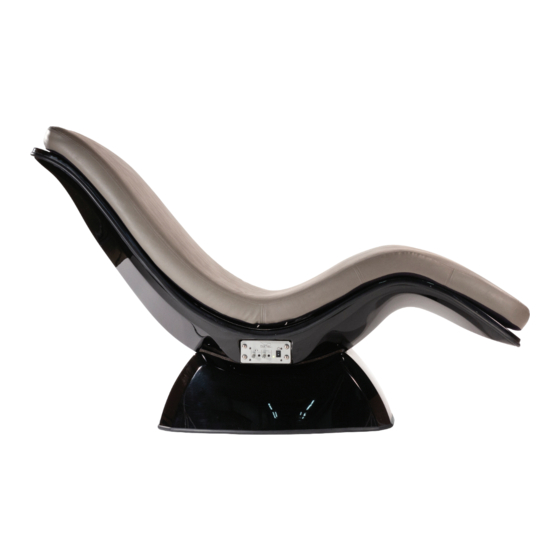

- Page 1 ® SolTec Lounge USERS’ GUIDE HEALTH SolTec ealth.com...
- Page 2 Table of Contents Page 1 Letter from CEO, Dr. Dan Cohen Pages 2 - 4 Contents of the Box Pages 5 - 9 sssembly Instructions Pages 10 - 15 Operating Instructions Pages 16 - 17 Music Input and Connection Options MEDIT TION...
- Page 3 Welcome to creativity and calm! quiet setting, a comfortable position, an open attitude—you are a mere three steps from tranquility. So sit back, quiet your mind, and allow the innovative ideas buried within you to unravel. Studies show that even brief meditative respites from a hectic life can reduce stress, boost creativity, increase focus, and improve job satisfaction.
- Page 4 The tranquility you crave is already within you; you just need to find ways to access it.
- Page 5 Many people purchase the SolTec Lounge for stress reduction or to solve a medical or emotional issue. I think those folks have made a wise choice and if they use the lounge regularly they are very likely to be successful. I tell them, when they do a session, the fastest way to heal is to simply let go.
- Page 6 Instructions Please read all instructions before assembling to ensure proper functioning. Think - inside the box Step 1: Remove the contents of the carton. The contents include the following: Seat Base Lounge component box HEALTH...
- Page 7 Seat When you remove the seat section from the carton, place it pad-side down on the floor as shown. Never place the Lounge on its side because pressure on the knob(s) could damage the amplifier. Base HEALTH...
- Page 8 Power supply and power cable Music CD’ s Hardware udio cable Zip tie fasteners HEALTH...
- Page 9 Step 2: Place the base on the seat as shown. The notch in the base should face the rear-most part (head-chest end) of the seat. Make sure that each pair of bolts protrudes through the lateral slits of the base and that the amplifier cable protrudes through the middle slit. . Base Front Notch...
- Page 10 Step 3: To secure the seat to the base, you will use the following hardware in this order: nylon bushing, spring, steel washer, rubber washer, lock nut. First, slip the nylon bushing (neck-down into the slit) around one of the bolts. Then, in this order, slide the spring, the steel washer, rubber washer, and lock nut.
- Page 11 Step 4: Using the zip-tie fastener, secure the amplifier cable to the power supply. This will help maintain the connection. First, secure the bottom zip-tie to the amplifier cable. Next, plug the power cable (cable attached to the power supply) into the amplifier cable.
- Page 12 Plug the power cable into the power supply and place the power supply on the floor at the location where the base will cover it when you place the SolTec Lounge in an upright position. Next, lift and place the SolTec Lounge on top of the power supply with the power cord exiting from the notch at the back end of the base as shown below.
- Page 13 (Smartphone, Mp3 or CD player) to the amplifier using the audio cable supplied. Turn on your device, and then turn the SolTec amplifier switch on (green light should be lit). Press play and you should hear and feel whatever music you are playing. djust the volume on your device to the desired level.
-
Page 14: Operating Instructions
Once the SolTec Lounge is assembled, plug the 3-prong power cable provided with the power supply (the small rectangular C/DC converter) into a grounded wall outlet. Switch the on/off switch (on the input faceplate on the side of the Lounge) on. The LED indicator should be lit green. - Page 15 (step 4 in the assembly instructions). This connection is located underneath the base of the Lounge where the power supply should be located. If all the connections are in place and the power light is still not lit and the wall outlet is active (when you plug other electrical equipment they work), then the connection at the back of the amplifier will need to be checked.
- Page 16 SolTec Lounge and adjust the volume on the sound source device and any connected device to obtain the desired level of vibration through the Lounge. Most of the vibration comes from the transducer under the seat.
- Page 17 The sound from these transducers creates most of the sound that you hear (without headphones) in the room. If that sound is too high or low, adjust the Lounge volume knob shown in the diagram on page 12 once you have the desired level of vibration.
- Page 18 If you have a version 2 (older version not pictured) amplifier (without the Lounge volume knob – only one volume knob on the amplifier) then adjust both the levels of vibration and sound by changing the volume setting o the mp3 or CD player.
- Page 19 If you are of moderate height, you can straddle the Lounge with your legs (before sitting down) and make adjustments by grasping the sides of the unit and shifting the seat on the base.
- Page 20 Music Input Connection Options The following are the simplest options for connecting relatively inexpensive portable consumer electronic music devices to one or more SolTec Lounge units. One Seat Operation – iPod (mp3 player) or portable CD player Lounge Note: Do not use an iPod Nano as that device does not produce enough volume.
- Page 21 Splitter output jack and the Lounge Input jack on the SolTec Lounge. Repeat this step for lounges 2 to 10 as needed. If you wish to link more than 10 lounges you can connect multiple splitters.
- Page 22 Thank you for your purchase of the Soltec Lounge. Follow ® us on Facebook and share your journey with others. Enjoy! https://www.facebook.com/SolTecHealth/ Chair with armrests HEALTH...
- Page 23 • Consult the dealer or an experienced radio/TV technician for help. e SolTec 3-channel amplifier comes installed in the seating structure and is intended to operate only while installed in that manner. It is never intended to operate separately. In addition, the amplifier should only be used with SolTec transducer and speakers.
- Page 24 Quiet your mind - experience improved sleep a comforting sense of calm and inner peace SolTecHealth.com...
