Woodhaven 6305IC Owner's Manual

BEFORE BEGINNING

Identify and verify that you have all the parts
listed. Read the instructions at least once, familiarizing
yourself with the parts before beginning. You'll
need a #3 Phillips screwdriver for assembly.
I f there are two clamp spindles included with the Toggle Clamp
1
(6305), remove the shorter spindle and replace it with the
longer spindle. For quicker spindle adjustments, replace the top
nut on the spindle with the thumb nut (5525).

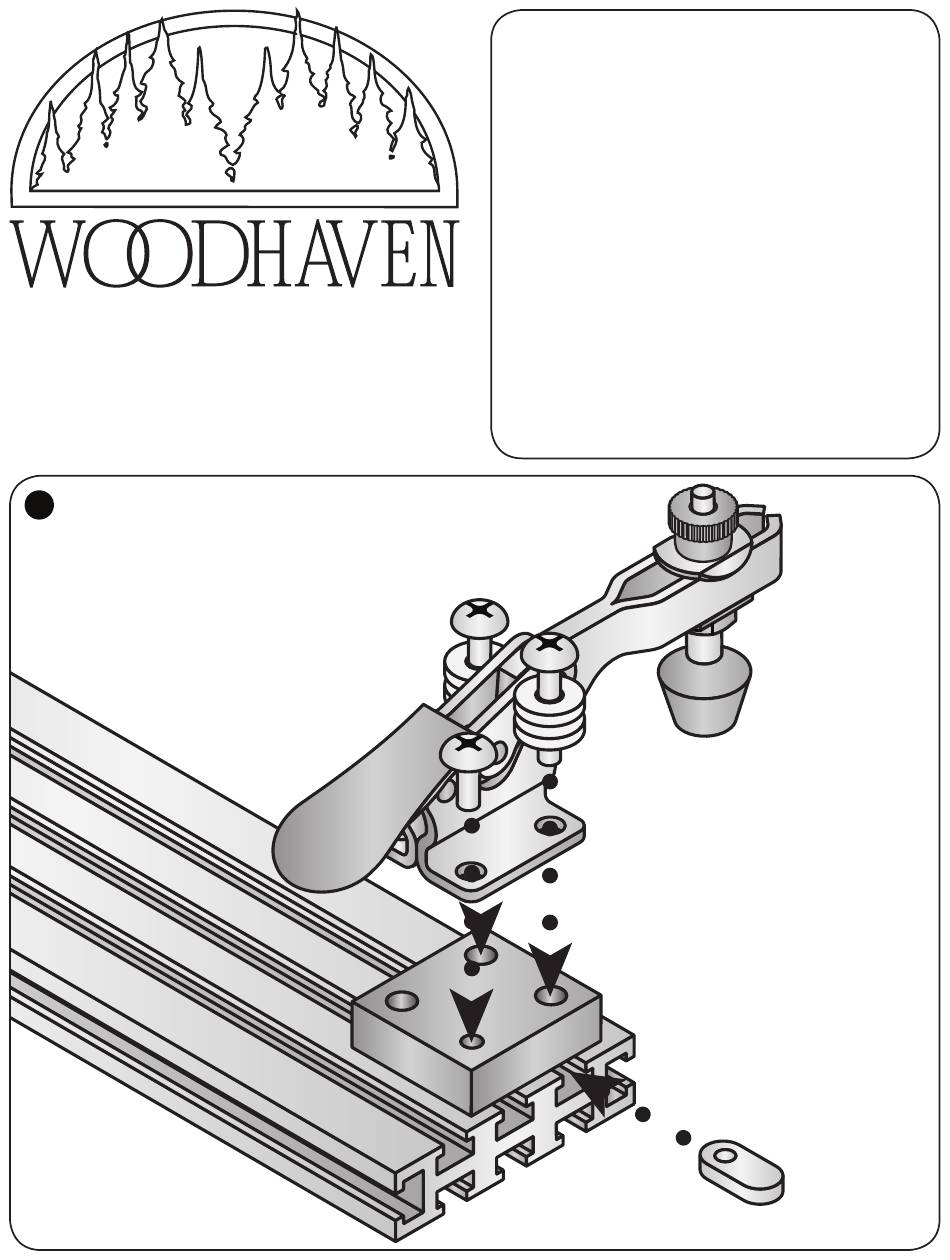

Install two nylon washers (WN002) on each of the 1" screws
(5772B), insert the screws thru the two front Toggle Clamp
mounting holes. Slide the Clamp Pad (6305B) on to
the 1" screws (position threaded hole in clamp pad at
rear of toggle clamp) and start an oval nut (5765B -
raised side first), on the end of each screw.
Please Read Carefully!
Part
6305
6305ICH Clamp Hardware below:
WN002
5765B
5772B
MP375
5525
6305B
MP375
6305IC
Inboard Clamp
Owners Manual

Parts List:

Description
Toggle Clamp . . . . . . . . . . . . . . . . . . . . . . . . .1
Nylon Washer . . . . . . . . . . . . . . . . . . . . . . . . .4
Oval Nut . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1" Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
3/8" Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Thumb Nut . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Clamp Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
5772B x2
WN002 x4
Attach the clamp pad to the rear of the
Toggle Clamp using the 3/8" screw (MP375).
Slide the Toggle Clamp/offset oval
nuts on to the selected T-slot(s) of the
Ultra Track, position where desired
and tighten the two 1" screws.
5765B x2
Quantity
