Power Harness
(to TTV Gauge)
732-WH3
Fan Harness
(From TTV to Fan)
732-WH4
Carefully insert the temperature probe into fins of radiator.
Make sure that the probe is lined up parallel to the fins to avoid damage. If it is too difficult to
press in, use a small wood or plastic block against the back side of the sensor while guiding the
sensor straight into the radiator.
TIP: To Compensate for the influence of ambient air passing across the sensor, apply thermal grease (includ-
ed in kit) into the gap between the fins of the radiator where the sensor will be installed. It is important to
place the grease only in the gap. Grease on the surface of the radiator will attract dirt and reduce function.

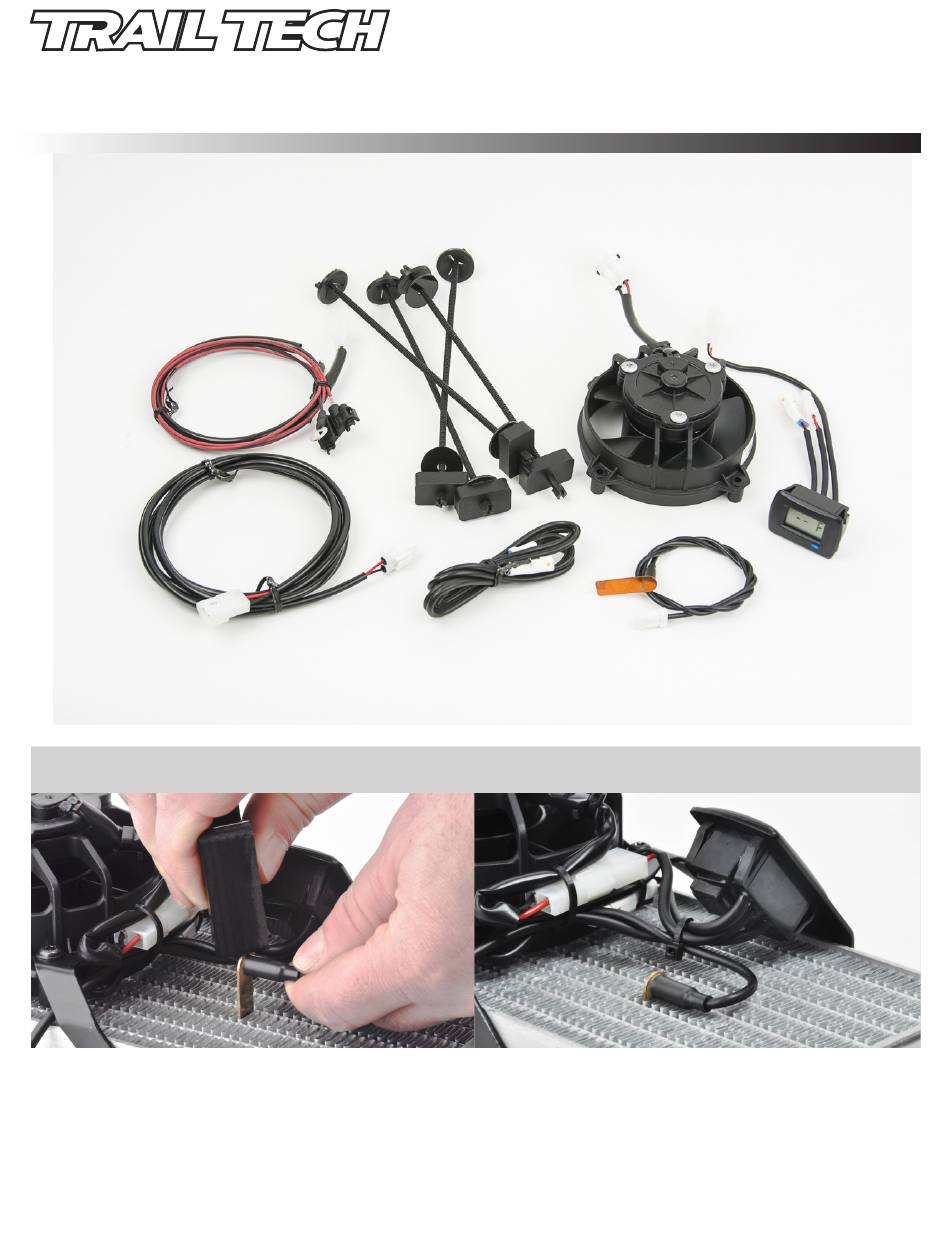

DIGITAL GUAGE & FAN KIT
INSTALLATION GUIDE

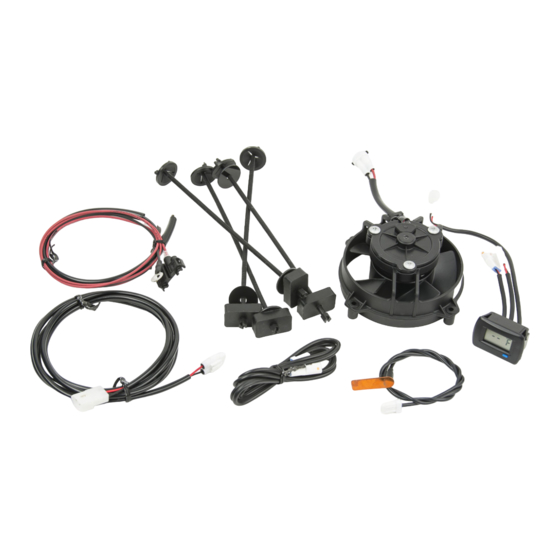

Mount Kit
7051-FNMK
TEMP SENSOR INSTALLATION GUIDE
(See above photos)
Temperature
Extension
V300-72
Digital Gauge & Fan Kit Installation Guide
Tech Support: 360-687-4530
tech_support@trailtech.net
Cooling Fan
7051-FN2
TTV Digital Gauge
732P-SV0
Temperature
Sensor
7500-3006
010-ELV-170
Advertisement
Table of Contents
Summary of Contents for Trail Tech 010-ELV-170
-
Page 1: Installation Guide
010-ELV-170 Digital Gauge & Fan Kit Installation Guide Tech Support: 360-687-4530 tech_support@trailtech.net DIGITAL GUAGE & FAN KIT INSTALLATION GUIDE Mount Kit 7051-FNMK Cooling Fan Power Harness 7051-FN2 (to TTV Gauge) 732-WH3 Fan Harness (From TTV to Fan) 732-WH4 TTV Digital Gauge... - Page 2 The ON setting will turn the backlight on all of the time. (Best when used with switched power) Disclaimer: Trail Tech’s Fan Kit does not guarantee your vehicle will not overheat. If steam is present or engine temperature is high, please stop and wait for engine to cool. Overheating may cause engine dam-...
