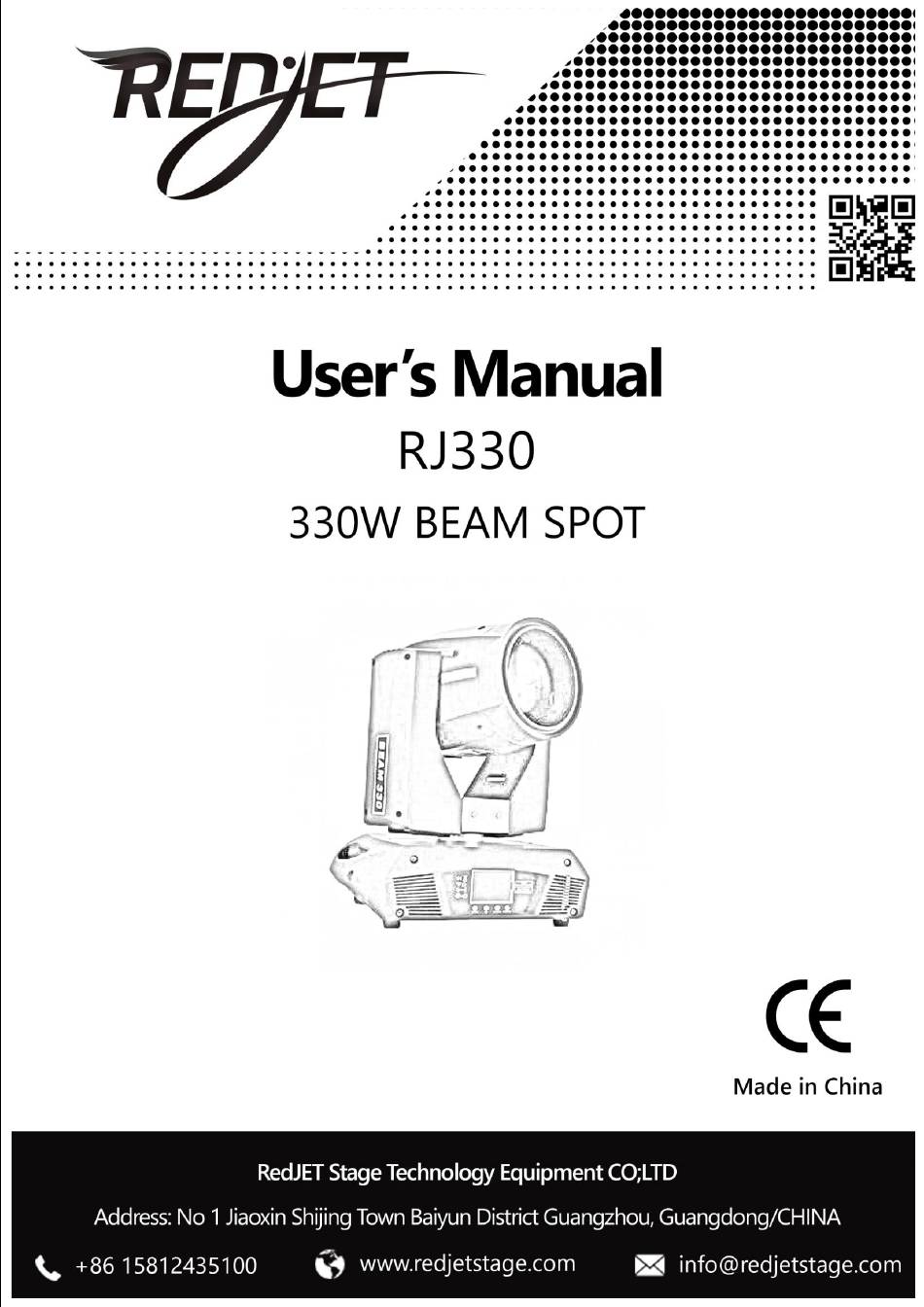

- Page 1 1 / 9...
-
Page 2: Installation
Thank you for using our company's production moving heads, for your safety and convenience, please use the lamp before you read this manual carefully. Important Notice This instruction manual contains important information regarding the installation and use of products of this fixture. Please strictly follow these instructions related to installation and use. Before opening this fixture products or want to repair, replace light bulbs, etc., make sure the power is off. - Page 3 Static protection and against electric shock The lighting design in accordance with the type of protection against electric shock. To connect with ground lighting power system. And ground lighting must be turned on and the ground power system, lighting metal ground mark the port to securely connected to the mounting lighthouse. Connect the power mains Connected to the power mains must be performed by a qualified electrical professional to complete.
-
Page 4: Lamp Installation
Package Contents In addition to lighting, the package is also equipped with the following items: Accessory Optional 1: cable a.lamps 2: signal line b.rack 3: Instructions: 4: Warranty Card: 2.LAMP INSTALLATION Loosen the beam lamp head plastic cover, open the inlet side of the fan, you can replace the lamp. When installing the bulb, the bulb should be noted seated, otherwise easily lead to poor contact due to a short circuit high voltage discharge, the impact of lamp life, damage to the circuit board components. - Page 5 If you need to extend the communication cable connection, the male and female 3-pin XLR plugs at both ends of a corresponding 1,2 corresponding 2,3 corresponding 3, otherwise easily lead to a communication break. (Note: Each cables with a core diameter should be at least 0.5mm, best to use dual-core shielded cable).
- Page 6 Before painting the vertical 8 sleep before painting 8 Random self- propelled Sound Control 1~512 Press the "OK" button to enter the edit mode. At this point is Address to select one hundred, press "up" "down" key to change the address code.
-
Page 7: Technical Parameters
Options Explanation 1CH. Color Wheel 0~25 Press the "OK" button to enter the edit mode. At this point is to select one hundred, press "up", "down" key to change the channel value. Press the "OK" button to select ten editing. ……... - Page 8 5. 330W MOVING HEAD BEAM LIGHTS WORKING CHANNEL Channel Channel mode Color Wheel 0-255 Switching / Strobe 0-255 Dimming 0-255 Pattern plate 0-255 Pattern of rotation 0-255 Prism 0-255 Prism of rotation 0-255 Focusing 0-255 Enlarge 1 0-255 Enlarge 2 0-255 Atomization 0-255...
- Page 9 9 / 9...
