Mustang Survival MSD901 User Manual

Industrial dry suit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MSD901
Industrial Dry Suit
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSD901 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mustang Survival MSD901

Summary of Contents for Mustang Survival MSD901

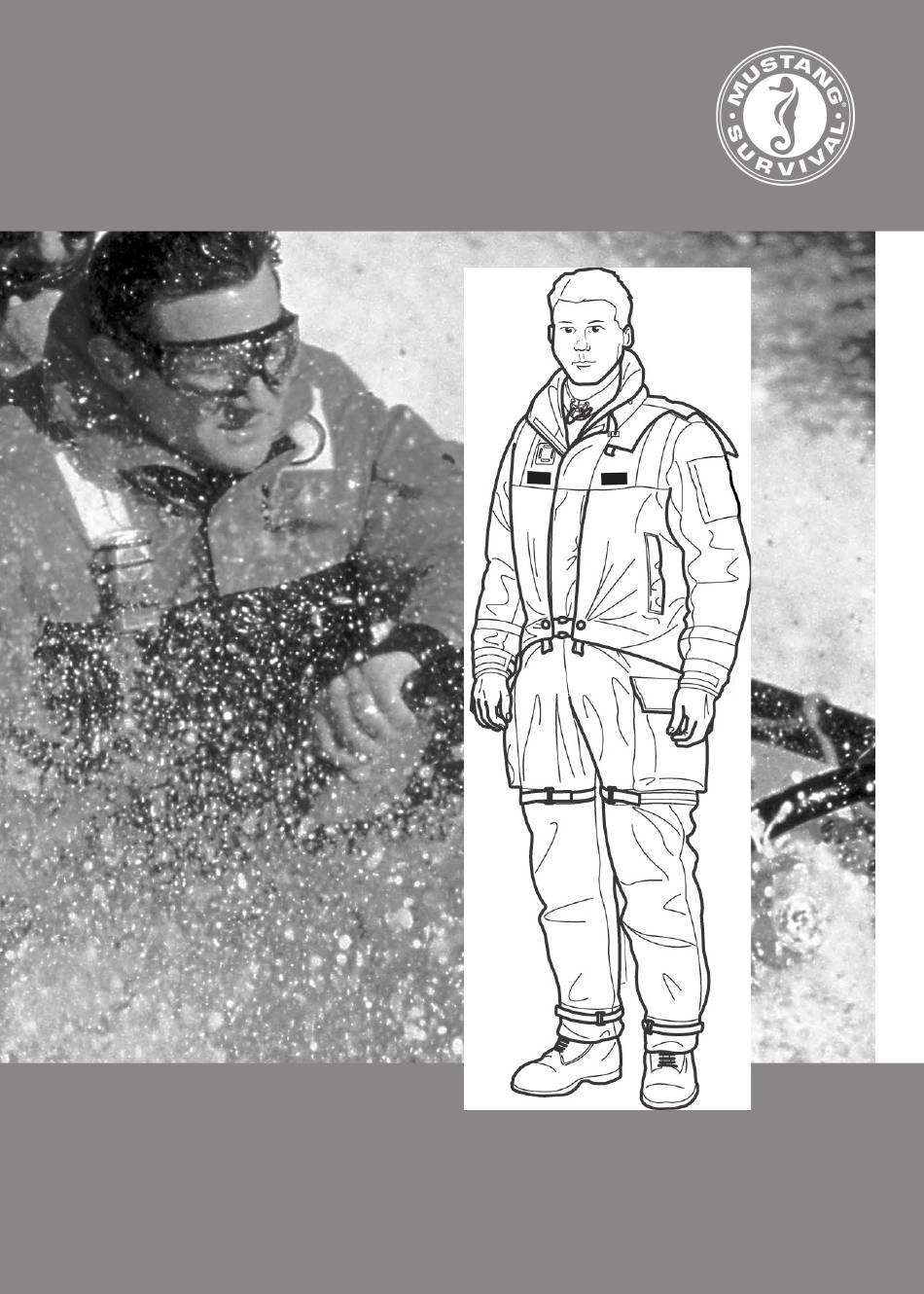

  • Page 1 MSD901 Industrial Dry Suit User's Manual...

  • Page 3: Table Of Contents

    CONTENTS 1–6 The MSD901 Assembly Steps Donning 7 Suit Preparation Prior to Donning 8 Donning Instructions 8 Closing Waterproof Zipper 9 Adjusting the MSD901 After Donning Securing The MSD901 9 General 9 Neck Seal 9 Wrist Seal 9 Hood Doffing...

  • Page 4: Things You Should Know

    Things you should know Application The MSD901 industrial dry suit may be used in lieu of traditional dry suit and anti-exposure work suits when a suit of greater durability, comfort and protection from exposure to cold is required. The MSD901 provides inherent buoyancy as well as protection from exposure to cold temperature, wind, sea spray and rain.

  • Page 5: Maintenance And Care

    Immersion Module Outer Shell FIGURE 1 FIGURE 2 MSD901 Industrial MSD901 Industrial Dry Suit Layers Dry Suit Maintenance And Care be free from defects in material and craftsmanship for a period of one year Maintenance is limited to cleaning the after date of purchase by the end user.

  • Page 6: The Msd901 Assembly Steps

    WARNING THE MSD901 SHOULD BE WORN WITH ALL THREE MODULES ASSEMBLED. THE MODULES ARE NOT DESIGNED TO BE WORN INDEPENDENTLY, AND A LOSS OF PROTECTION AND WEAR RESISTANCE WILL RESULT IF WORN IMPROPERLY. Assembly MSD901 Assembly Steps 1 Lay out the thermal liner and immersion module...
  • Page 7 2 Connect the thermal liner and the immersion module at the ankle STEP a) Fold the top half of the immersion module over at the waist toward the legs. Ensure the lower portion of the module is exposed. b) Keeping the bottom flat and straight, use an overhand grasp to insert each leg of the thermal liner down into each leg of the immersion module until it reaches the interconnection zipper at the ankle (see fig.
  • Page 8 4 Waist and waterproof zipper connection - Part I STEP a) Return the immersion module to its laid out position in Step 1. Push the left arm of the thermal liner down to the end of the left arm of the immersion module (see fig.
  • Page 9 6 Neck connection STEP a) Grab the edge of the neck seal on the immersion module and expose the interconnection zipper. b) Line up the end of the zipper on the immersion module with the end of the zipper on the thermal liner (see fig. 9). c) Fasten the zipper and continue to close until the two are completely joined, then fold the neck seal back down.
  • Page 10 8 Adding the outer shell STEP a) Lay the outer shell out flat with the chest zipper facing up. Lower the chest and ankle gusset zippers. Completely loosen the wrist adjustment straps. b) Fold the outer shell over at the waist exposing leg openings. c) Feed the left leg of the thermal liner/immersion module assembly through the left leg of the outer shell and pull it through.
  • Page 11 Repeat this procedure for the right wrist. WARNING THE MSD901 SHOULD BE WORN WITH ALL THREE MODULES ASSEMBLED. THE MODULES ARE NOT DESIGNED TO BE WORN INDEPENDENTLY, AND A LOSS OF PROTECTION AND WEAR RESISTANCE WILL RESULT IF WORN IMPROPERLY.

  • Page 12: Donning

    (refer to page 13 for regular zipper maintenance) e) Fully open the waterproof zipper. CAUTION USE EXTREME CAUTION WHEN DONNING THE MSD901. PRIOR TO DONNING THE MSD901, REMOVE ALL RINGS, WATCHES, EARRINGS, NECKLACES AND EYEGLASSES THAT WILL CAUSE DAMAGE TO WRIST AND NECK SEALS.
  • Page 13 FIGURE 14 Donning the MSD901 Industrial Immersion Work Suit FIGURE 15 Pulling the Zipper to Close the Suit...

  • Page 14: Closing Waterproof Zipper

    Unfold the protective cover over the waterproof zipper and snap it in place at the ends. Adjust the chest ventilation zippers on the outer shell. 4 Adjusting the MSD901 after donning STEP a) Adjust the neck seal to a snug but comfortable fit. Do not tighten the neck seal to the point where it is uncomfortable (see fig.

  • Page 15: Wrist Seal

    Securing The MSD901 In Emergency Situations 1. General - In the event of immersion, the MSD901 has a number of emergency features that are crucial to your survival. 2. Neck Seal - After entering the water, tighten the patented neck seal by grasping the drawstring and pulling the tabs out and away from the neck until a snug, comfortable fit is achieved.

  • Page 16: General

    Maintenance And Care 1. General After use and immersion in water (other than fresh clean water), the suit modules should be either washed or rinsed separately. To increase the life of the garment, it is recommended to wash the suit only when required. For spot cleaning of the exterior when assembled, hand wash the suit in fresh water (100˚F or less) using a mild powdered soap solution, then hang to air dry.

  • Page 17: Hood

    l) Unzip the waterproof zipper around the waist circumference and fold the suit open to expose the upper and lower waist interconnection zippers. m) Unzip the upper and lower waist interconnection zippers. n) Unzip the upper and lower interconnection zippers adjacent to the waterproof relief zipper.

  • Page 18: Thermal Liner

    Inspection General Suit Examination Periodically examine your MSD901 for visual signs of abrasion or damage. Lay the suit out on a clean, flat surface. Make sure that the suit is dry inside and out. Visually check for small rips, tears, or punctures that can be repaired by a suitable repair station*. Major rips, tears, or punctures should be referred to Mustang Survival for inspection and repair.

  • Page 19: Outer Shell

    Check for ease of zipper operation by sliding it up and down. Using lubricant recommended by Mustang Survival (see page 13), lubricate the front and back of the zipper and the slide fastener. If the zipper is not functional, the suit must be removed from service and discarded or returned to Mustang Survival for repair.

  • Page 20: Suspenders

    SUSPENDERS (MA7650) Suspenders are not required when using the MSD901, unless sizing dictates. However, properly attached suspenders may improve the fit and mobility. The MSD901 is equipped with attachment loops, on the Immersion Module, that accommodate the suspender system. Remove and re-attach as required.

  • Page 21: Trim To Fit Wrist Seals

    d) Pass the suspender strap through the front and back pass-through slots on the Thermal Liner. While keeping the strap straight, attach the non-adjusting end of a suspender to the suit’s back attachment point (Fig. 21). Should be similar to Step c.
  • Page 22 wrists should try to make the wrist seal fit properly further up the arm where the sealing surface is smooth. NOTE: Once the wrist seal is trimmed, it may not provide an adequate seal for a smaller wrist. Required materials: Ruler, sharp scissors and talcum powder. See below for trim to fit wrist seal instructions for used suits.
  • Page 23 Perform the following steps to trim the wrist seals of a used MSD901. a) Apply talcum powder to your hand and wrist to make donning the cuff much easier.
  • Page 24 WE SAVE LIVES FOR A LIVING MUSTANG SURVIVAL CANADA 3810 Jacombs Road, Richmond, B.C., Canada V6V 1Y6 1.800.661.6181 TOLL FREE 604.270.8631 604.270.0489 mustang@mustangsurvival.com MAIL www.mustangsurvival.com MUSTANG SURVIVAL USA 3870 Mustang Way, Bellingham, WA USA 98226 1.800.526.0532 TOLL FREE 360.676.1782 360.676.5014 mustangusa@mustangsurvival.com...
