1.1 General
S2000-IP rev.02 is a combination Rate-of-Rise and Fixed Temperature Heat Detector. It is designed to provide fire protection and to be used with
S2000-KDL Multiplex Addressable Loop (MAL) controller in Orion integrated security systems. In standard usage mode both sudden temperature
increases that match the predetermined alarm criteria and fixed ambient temperature point exceeding cause the detector to issue fire alarms. In
analogue mode S2000-IP returns the S2000-KDL measured temperature values, the S2000-2 making its own decisions to issue fire alarms or fire
prealarms in accordance with user programmable temperature thresholds.
Moreover, S2000-IP responds with the measured ambient temperature values in degrees Centigrade upon the relevant request of the network
controller (either S2000/S2000-M console or ARM Orion).
Both detector power and communication between the detector and the S2000-KDL controller are accomplished over the two wire Multiplex
Addressable Loop controlled by S2000-KDL. The detector supports MAL_v2.xx protocol and provides measuring of the addressable loop voltage at
its location.
The detector is designed for round the clock operation.
1.2 Specification
1) Fixed Temperature
2) Current Consumption
3) Input Voltage
4) Technical Readiness Time
5) Measurement Accuracy
6) Operating Temperatures
7) Relative Humidity
8) Ingress Protection Rating
9) Weight
10) Storage Temperature
11) Overall Dimensions: Diameter
Height

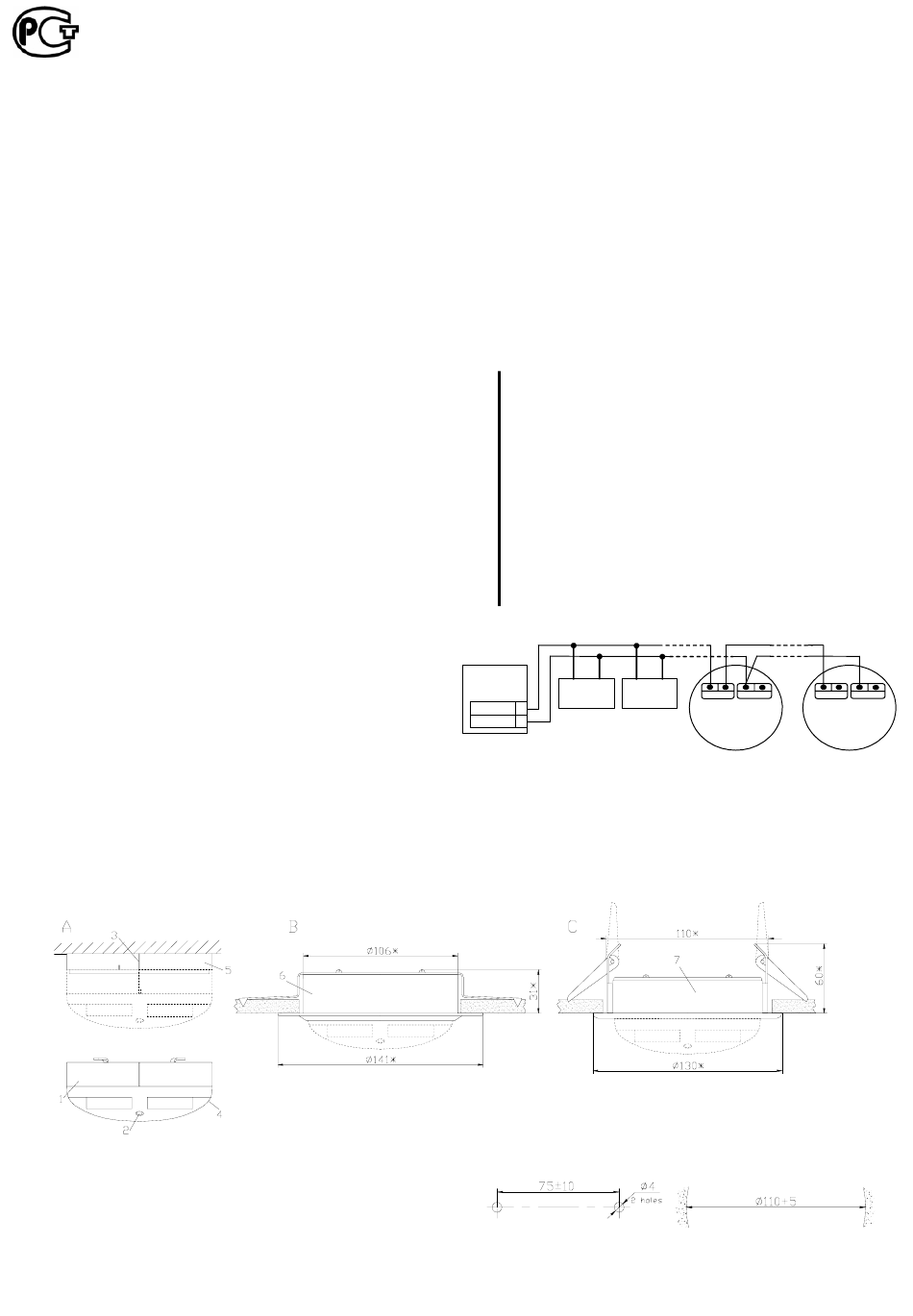

2.1 S2000-IP Wiring Diagram.
Figure 1 shows the standard diagram to wire S2000-IP detectors into
a two wire Multiplex Addressable Loop controlled by S2000-KDL.
If an S2000-IP is used to detect fire the S2000-KDL is programmed
to monitor for the S2000-IP with zone type 3, Heat (in the standard
mode) or 9, Heat Analog Addressable With Programmable Threshold (in
the analogue mode).
If, otherwise, an S2000-IP is used in thermostatic systems the S2000-
KDL is programmed to monitor for the S2000-IP with zone type 10,
Thermal. To get information about zone types and S2000-KDL
programming, please refer to the S2000-KDL User's Manual as well as used network controller description.

2.2 Mounting

Heat detectors are installed on ceilings at distances at least 15cm from relevant walls.
There are three ways to attach S2000-IP detectors (see Figure 2). To attach a detector to solid surface (Variant А) the detector base plate provided
is used. Optionally, Suspended Ceiling Mounting Kit MK-1 (Variant B) or МК-2 (Variant C) can be purchased to install a S2000-IP detector into a
suspended ceiling.
1: S2000-IP Detector
2: LED
3: Alignment Guides
4: The Mark and the Bar, OPEN HERE
5: Base Plate
6*: S2000-IP Suspended Ceiling Mounting Kit MK-1
7*: S2000-IP Suspended Ceiling Mounting Kit MK-2
* : ordered separately
ANALOGUE ADDRESSABLE
RATE-OF-RISE AND FIXED TEMPERATURE DETECTOR
S2000-IP rev.02 (version 2.02)
INSTRUCTION MANUAL
1 T E C H N I C A L D A T A
- from +54 to +65°С
- 0.5 mA max
- from 8 to 10V
- 60s max
- ± 1°С
- from −30 to +55°С
- up to 93% at +40°С
- IP 41
- 0.2 kg max
- from −50 to +50°C
- 100 mm max
- 52 mm max

2 OPERATION INSTRUCTIONS

1.3 Standard Delivery
Single-piece delivery:
- S2000-IP rev.02 Detector
- Address Label
- Instruction Manual
Group delivery:
- S2000-IP rev.02 Detector
- Address Label
- Instruction Manual а
S2000-KDL
Addressable
Device
"+MAL"
"-MAL"
Figure 2
Addressable
5 2
Device
S2000-IP
Figure 1. Wiring Diagram
Figure 3
- 1 pc.
- 1 pc.
- 1 pc.
- 10 pcs.
- 1 pc.
- 1 pc.
5 2
S2000-IP
